Front Seat Cushion Outer Trim Panel Replacement (Fold Flat)

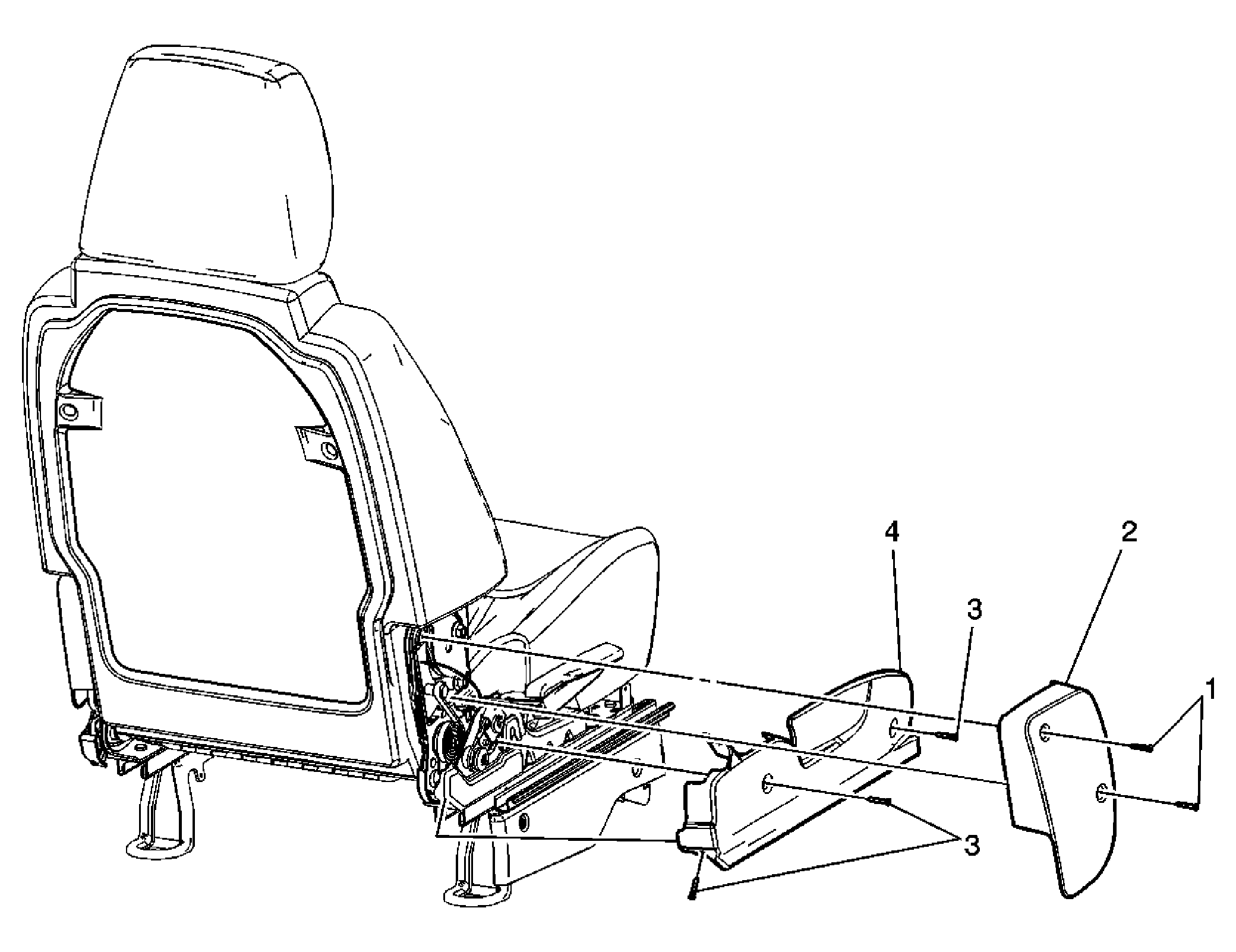

Fig 1: View Of Front Seat Cushion Outer Trim Panel (Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Seat Outer Recliner Finish Panel Screw (Qty: 2) Tighten:  2 N.m (18 lb in)
2	Front Seat Outer Recliner Finish Panel
3	Front Seat Outer Adjuster Finish Panel Screw (Qty: 2) Tighten:  2 N.m (18 lb in)
4	Front Seat Outer Adjuster Finish Panel
