Rear Bumper Fascia Replacement

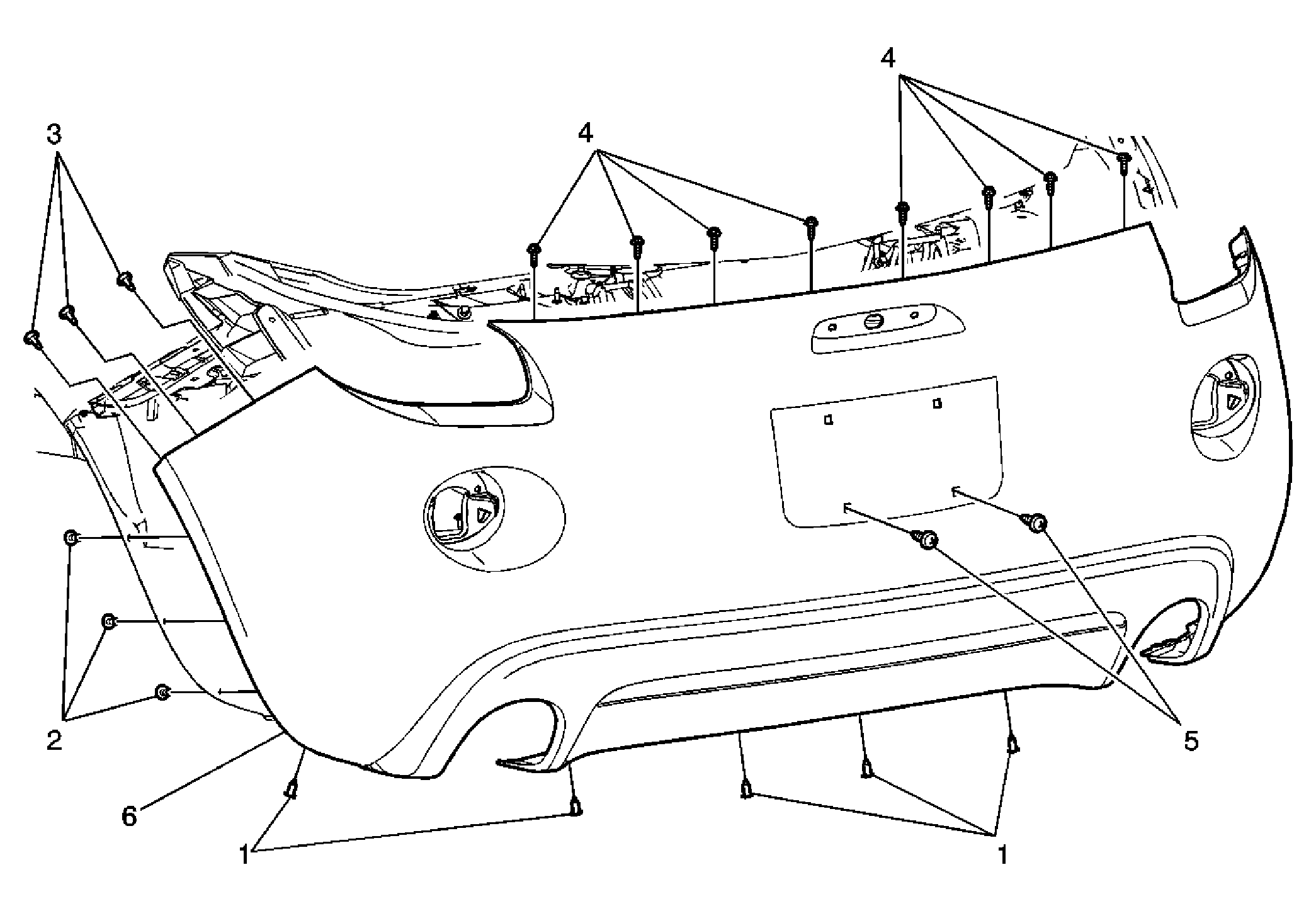

Fig 1: Rear Bumper Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove both fender liner sides. Refer to Rear Wheelhouse Liner Panel Replacement . Remove the tail lamps. Refer to Tail Lamp Replacement . Remove the high mount stop lamp. Refer to High Mounted Stop Lamp Replacement . Remove the backup lamps. Refer to Backup Lamp Replacement . Remove the license lamp. Refer to Rear License Lamp Replacement .
1	Rear Fascia Retainers (Qty: 6)
2	Rear Fascia Retainers (Qty: 6)
3	Rear Fascia Bolts (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
4	Rear Fascia Bolts (Qty: 8) Tighten: 10 N.m (89 lb in)
5	Rear Fascia
