Rear Wheelhouse Liner Panel Replacement
Rear Wheelhouse Liner Panel Replacement

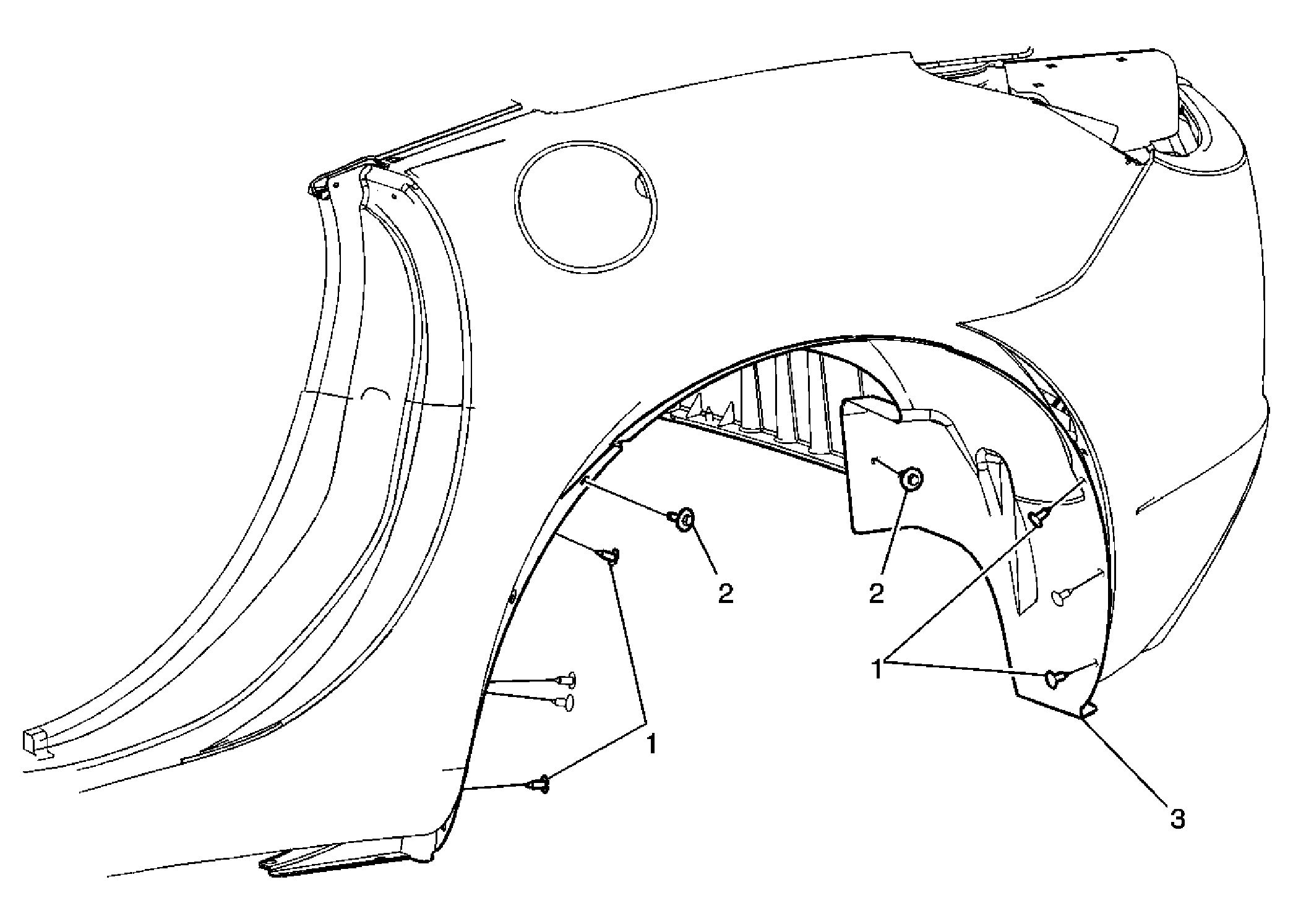

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear wheel. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Rear Wheelhouse Liner Retainers (Qty: 13) |
| 2 | Rear Wheelhouse Liner Bolts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 3 | Rear Wheelhouse Liner |
