High Mounted Stop Lamp Replacement
Courtesy of GENERAL MOTORS CORP. High Mounted Stop Lamp Replacement

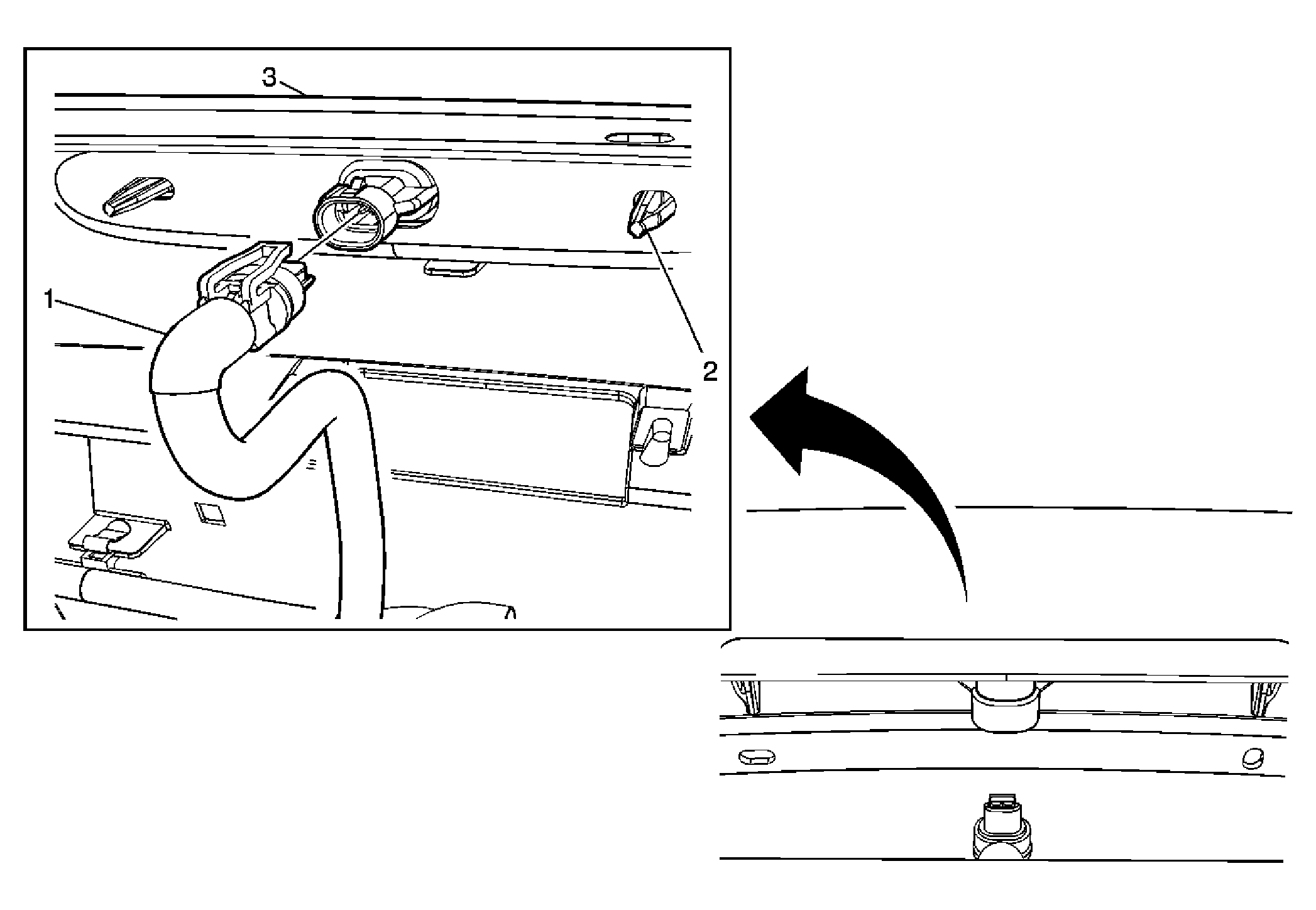

| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedures
- Remove the license plate lamp. Refer to Rear License Lamp Replacement .
- Heat the high mounted stop lamp mounting area using the J 25070
. Hold the J 25070
approximately (52 mm (6 in) from the surface. Apply heat using a circular motion for about 30 seconds.
|
| 1 |
High Mounted Stop Lamp Assembly Connector
Tip:
Disconnect the high mounted stop lamp electrical connector. |
| 2 |
High Mounted Stop Lamp Tab
Tip:
- Access the high mounted stop lamp retainer tabs through the license plate lamp opening in the rear bumper fascia.
- Using pliers or diagonal cutters, break the retainer tabs from the back side of the high mounted stop lamp.
|
| 3 |
High Mounted Stop Lamp Assembly |
