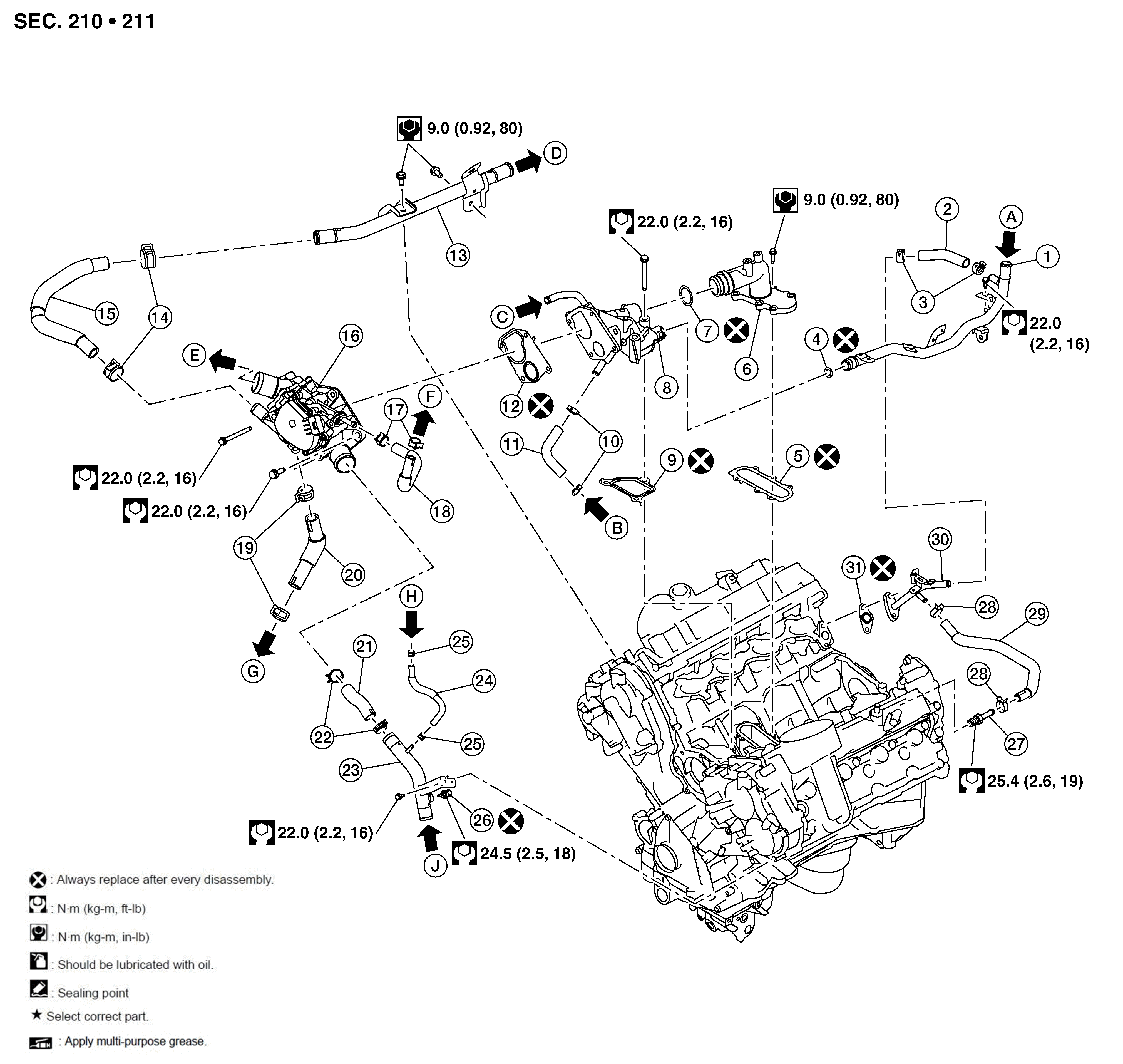

Exploded View
|
1. |
Heater pipe (outlet) |
2. |
Water bypass hose (bank 2) |
3. |
Clamp |
|
4. |
O-ring |
5. |
Water connector gasket |
6. |
Water connector |
|
7. |
O-ring |
8. |
Multi-way control valve housing |
9. |
Multi-way control valve housing gasket |
|
10. |
Clamp |
11. |
Oil cooler water hose (outlet) |
12. |
Multi-way control valve gasket |
|
13. |
Heater pipe (inlet) |
14. |
Clamp |
15. |
Heater hose (inlet) |
|
16. |
Multi-way control valve |
17. |
Clamp |
18. |
Electronic throttle control actuator water hose (inlet) |
|
19. |
Clamp |
20. |
Oil cooler water hose (inlet) |
21. |
Water suction hose |
|
22. |
Clamp |
23. |
Water suction pipe |
24. |
Electronic throttle control actuator water hose (outlet) |
|
25. |
Clamp |
26. |
Engine coolant temperature sensor 2 |
27. |
Hose connector |
|
28. |
Clamp |
29. |
Water bypass hose (bank 1) |
30. |
Water bypass pipe |
|
31. |
Water bypass pipe gasket |
A. |
From heater core. Refer to Removal and Installation - Front Heater Core . |
B. |
From oil cooler. Refer to Exploded View . |
|
C. |
From reservoir tank. Refer to Exploded View . |
D. |
To heater core. Refer to Removal and Installation - Front Heater Core . |
E. |
To radiator. Refer to Exploded View . |
|
F. |
To electric throttle control actuator. Refer to Exploded View . |
G. |
To A/T fluid warmer. Refer to Exploded View . |
H. |
From electric throttle control actuator. Refer to Exploded View . |
|
J. |
From radiator. Refer to Exploded View . |
||||
