Exploded View

WARNING: This page is about a different variant/trim than selected.

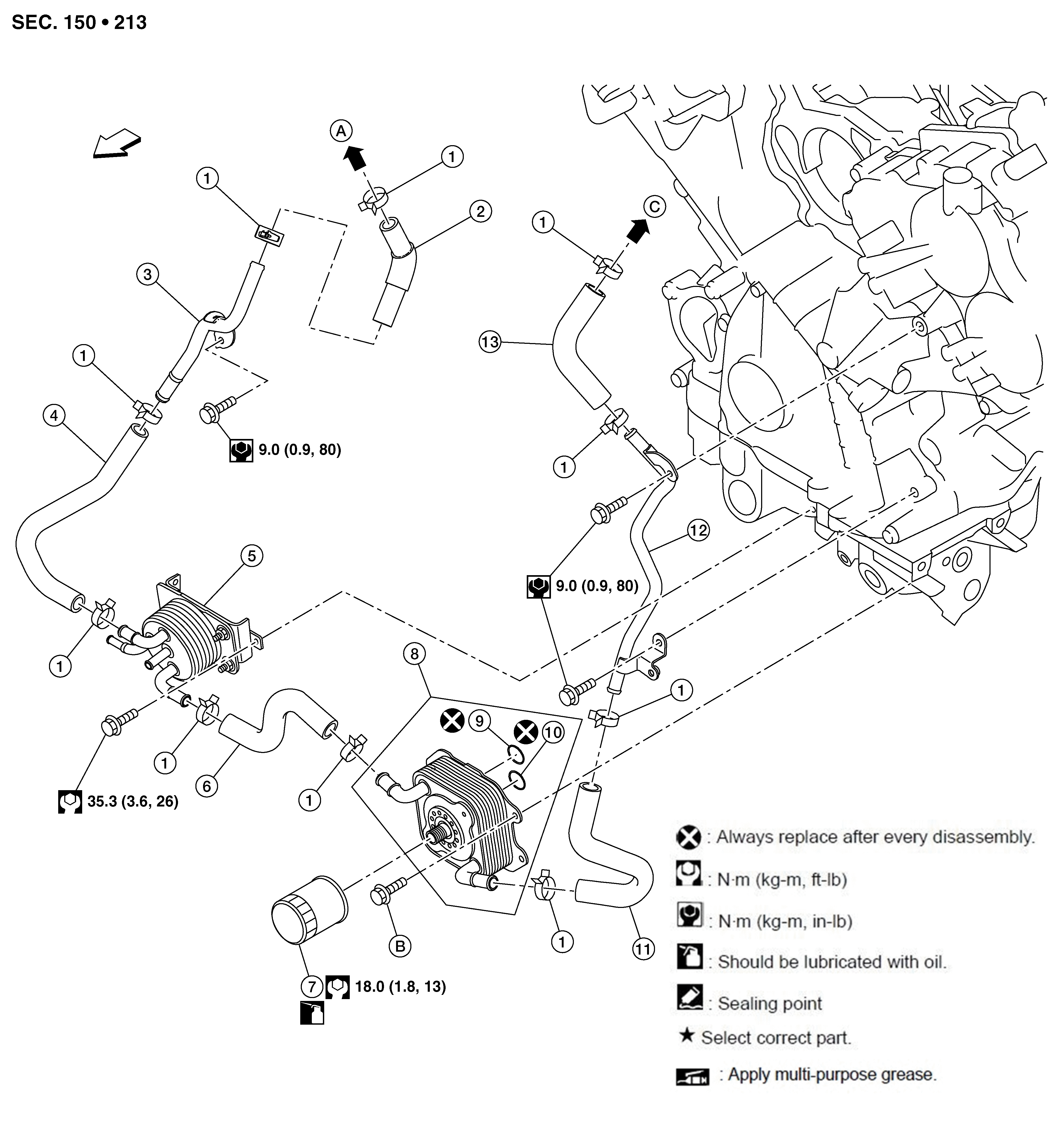

Fig 1: Oil Cooler With Torque Specifications
GNSAWBIA3215Z-215Courtesy of NISSAN NORTH AMERICA, INC.

1.

Clamp

2.

Water hose

3.

Water pipe

4.

Water hose

5.

A/T fluid warmer

6.

Water hose

7.

Oil filter

8.

Oil cooler

9.

O-ring

10.

O-ring

11.

Water hose

12.

Water pipe

13.

Water hose

A.

To multi-way control valve. Refer to Exploded View .

B.

Refer to INSTALLATION .

C.

To thermostat housing. Refer to Exploded View .

SYMBOL

Front
