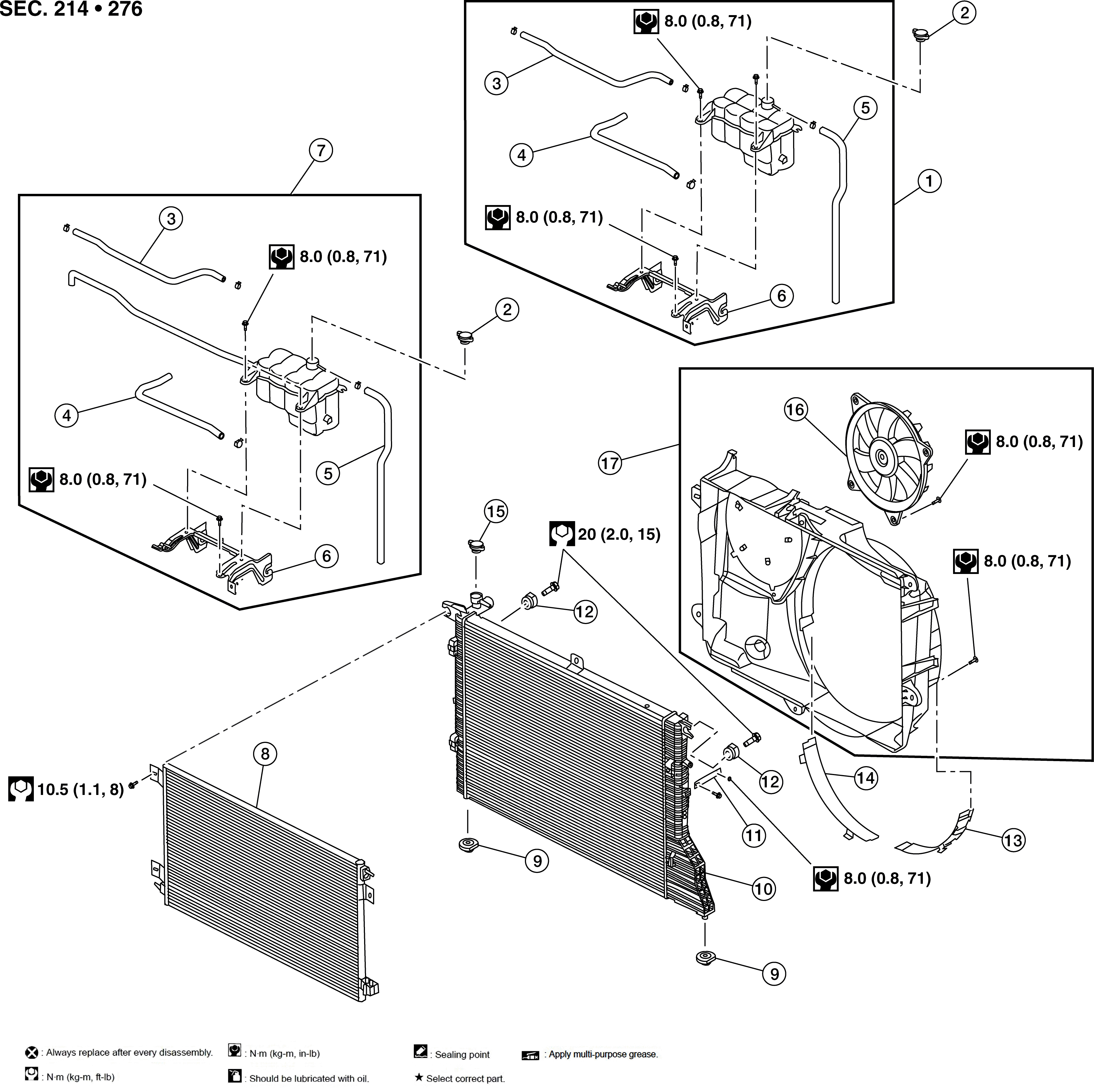

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Coolant reservoir tank (Cargo van) |
2. |
Coolant reservoir cap |
3. |
Coolant reservoir tank hose |
|
4. |
Water hose |
5. |
Coolant reservoir overflow hose |
6. |
Coolant reservoir tank bracket |
|
7. |
Coolant reservoir tank (Passenger van) |
8. |
Condenser and liquid tank assembly |
9. |
Mounting rubber (lower) |
|
10. |
Radiator |
11. |
A/C bracket |
12. |
Mounting rubber (upper) |
|
13. |
Radiator shroud [lower (LH)] |
14. |
Radiator shroud [lower (RH)] |
15. |
Radiator cap |
|
16. |
Engine cooling fan (motor driven) |
17. |
Radiator shroud (upper) |
