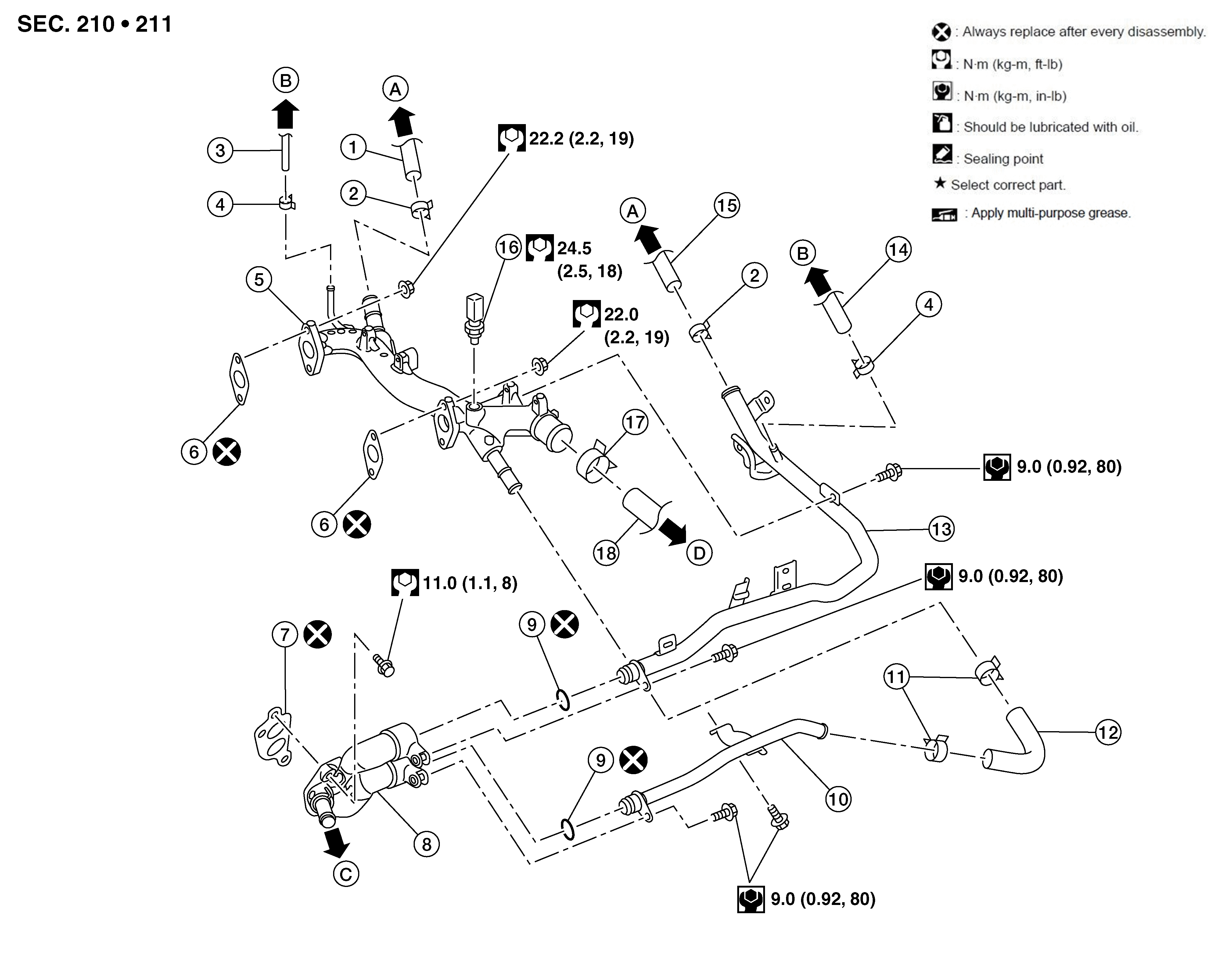

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Heater hose |
2. |
Clamp |
3. |
Water hose |
|
4. |
Clamp |
5. |
Water outlet |
6. |
Gasket |
|
7. |
Gasket |
8. |
Water connector |
9. |
O-ring |
|
10. |
Water bypass pipe |
11. |
Clamp |
12. |
Water hose |
|
13. |
Heater pipe |
14. |
Water hose |
15. |
Heater hose |
|
16. |
Engine coolant temperature sensor |
17. |
Clamp |
18. |
Radiator hose (upper) |
|
A. |
To heater core. Refer to Exploded View . |
B. |
To electric throttle control actuator. Refer to Exploded View . |
C. |
To oil cooler. Refer to Exploded View. |
|
D. |
To radiator. Refer to Exploded View. |
