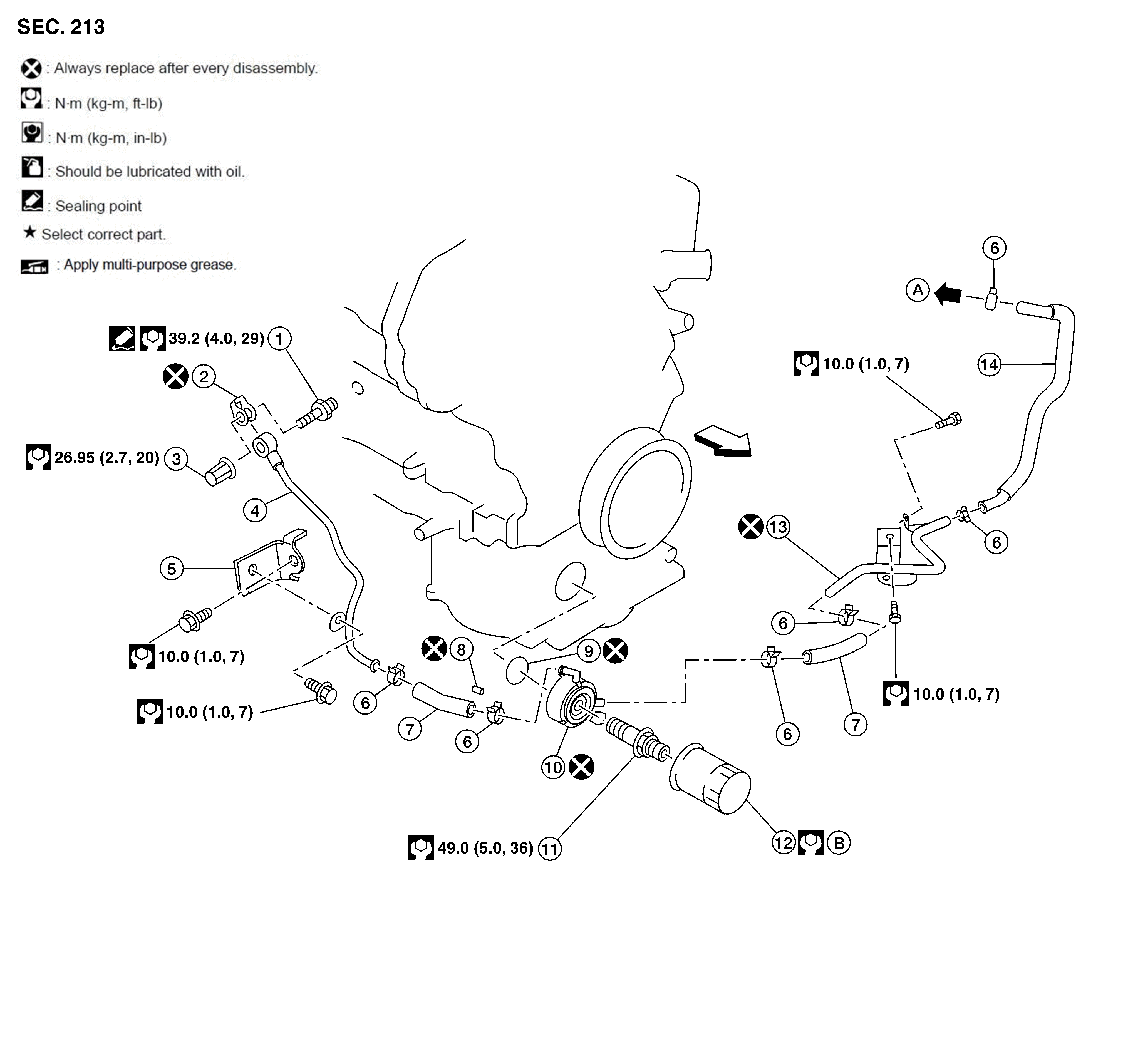

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Connector bolt |
2. |
Copper gasket |
3. |
Water drain plug |
|
4. |
Water pipe |
5. |
Bracket |
6. |
Clamp |
|
7. |
Water hose |
8. |
Relief valve |
9. |
Oil cooler O-Ring |
|
10. |
Oil cooler |
11. |
Connector bolt |
12. |
Oil filter |
|
13. |
Water pipe |
14. |
Water hose |
A. |
To water connector. Refer to Exploded View . |
|
B. |
Refer to Removal and Installation . |
|
Engine front |
