Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

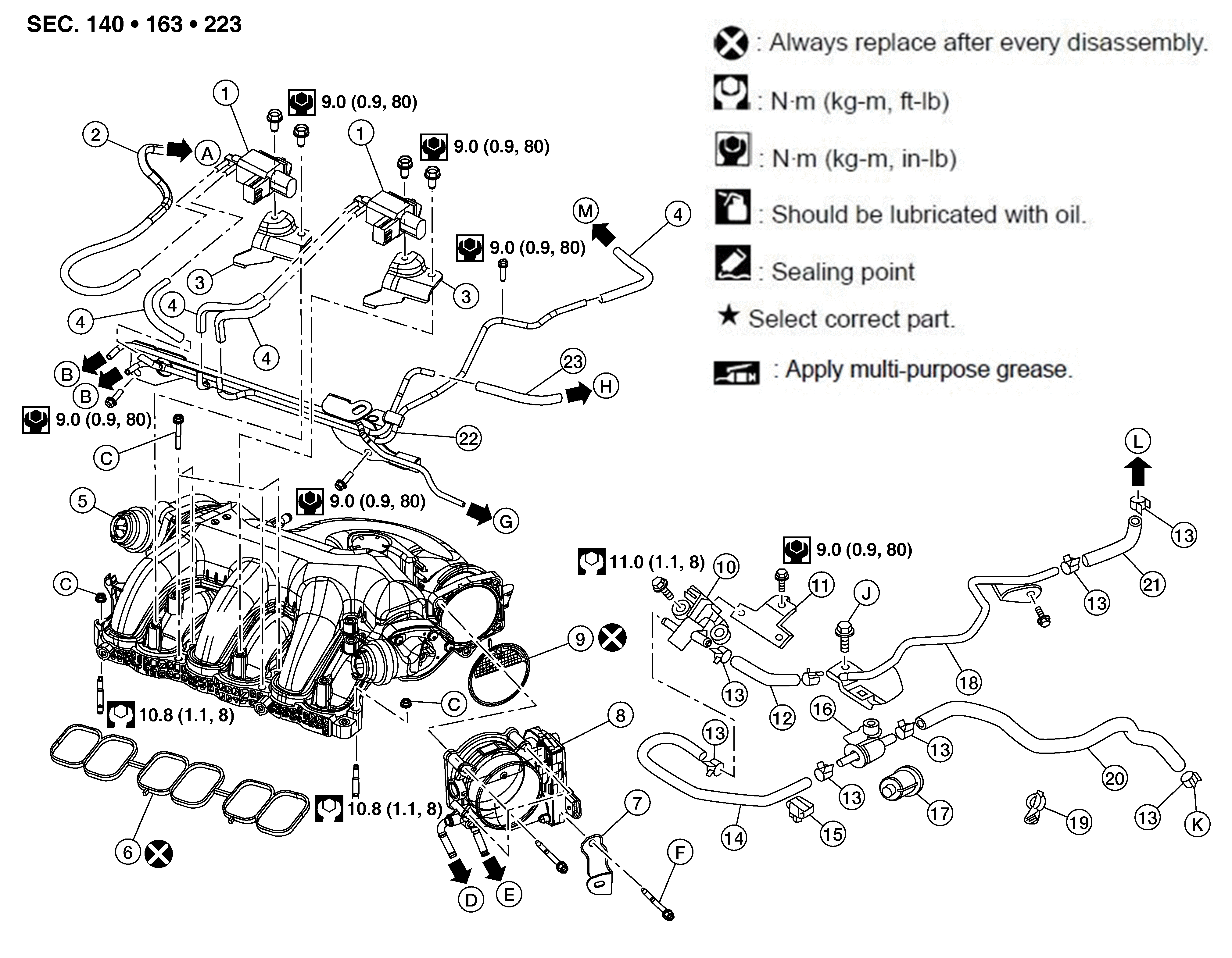

Fig 1: Intake Manifold Collector With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	VIAS control solenoid valve	2.	Vacuum hose 1	3.	VIAS control solenoid valve bracket
4.	Vacuum hose 2	5.	Intake manifold collector	6.	Intake manifold collector gasket
7.	Harness bracket	8.	Electronic throttle control actuator	9.	Electronic throttle control actuator gasket
10.	EVAP canister purge volume control solenoid valve	11.	EVAP canister purge volume control solenoid valve bracket	12.	EVAP hose 1
13.	Hose clamp	14.	EVAP hose 2	15.	Hose clip 1
16.	EVAP service port valve (For Mexico)	17.	Vacuum delay valve (For United States and Canada)	18.	EVAP tube
19.	Hose clip 2	20.	EVAP hose 3	21.	EVAP hose 4
22.	Vacuum tube assembly	23.	Vacuum hose 3	A.	To power valve actuator 1. Refer to Component Location
B.	To electronic controlled engine mount control solenoid valve. Refer to Component Location	C.	Refer to INSTALLATION	D.	To heater pipe. Refer to Exploded View
E.	To water outlet. Refer to Exploded View	F.	Refer to INSTALLATION	G.	To engine mount (FR). Refer to Exploded View
H.	To power valve actuator 2. Refer to Component Location	J.	Refer to INSTALLATION	K.	To EVAP canister. Refer to Exploded View
L.	To intake manifold collector	M.	To intake manifold collector
