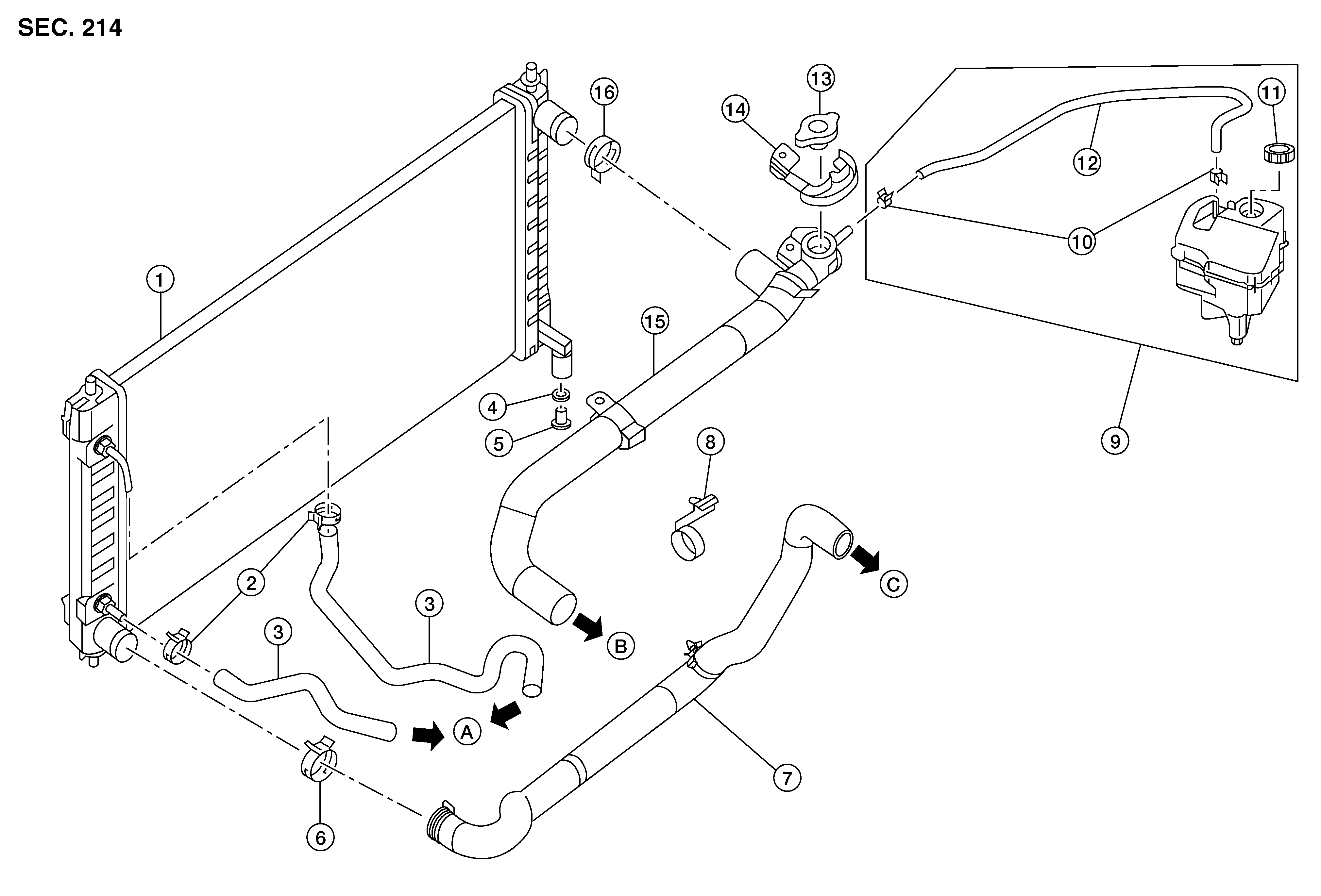

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Radiator |
2. |
CVT oil cooler hose Clamp |
3. |
CVT oil cooler hose |
|
4. |
O-ring |
5. |
Radiator drain plug |
6. |
Radiator hose (lower) clamp |
|
7. |
Radiator hose (lower) |
8. |
Reservoir hose (lower) bracket |
9. |
Reservoir tank |
|
10. |
Reservoir hose clamp |
11. |
Reservoir tank cap |
12. |
Reservoir hose |
|
13. |
Radiator cap |
14. |
Radiator cap adapter |
15. |
Radiator hose (upper) |
|
16. |
Radiator hose (upper) Clamp |
A. |
To CVT Exploded View. |
B. |
To water outlet Exploded View. |
|
C. |
To water inlet |
