Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

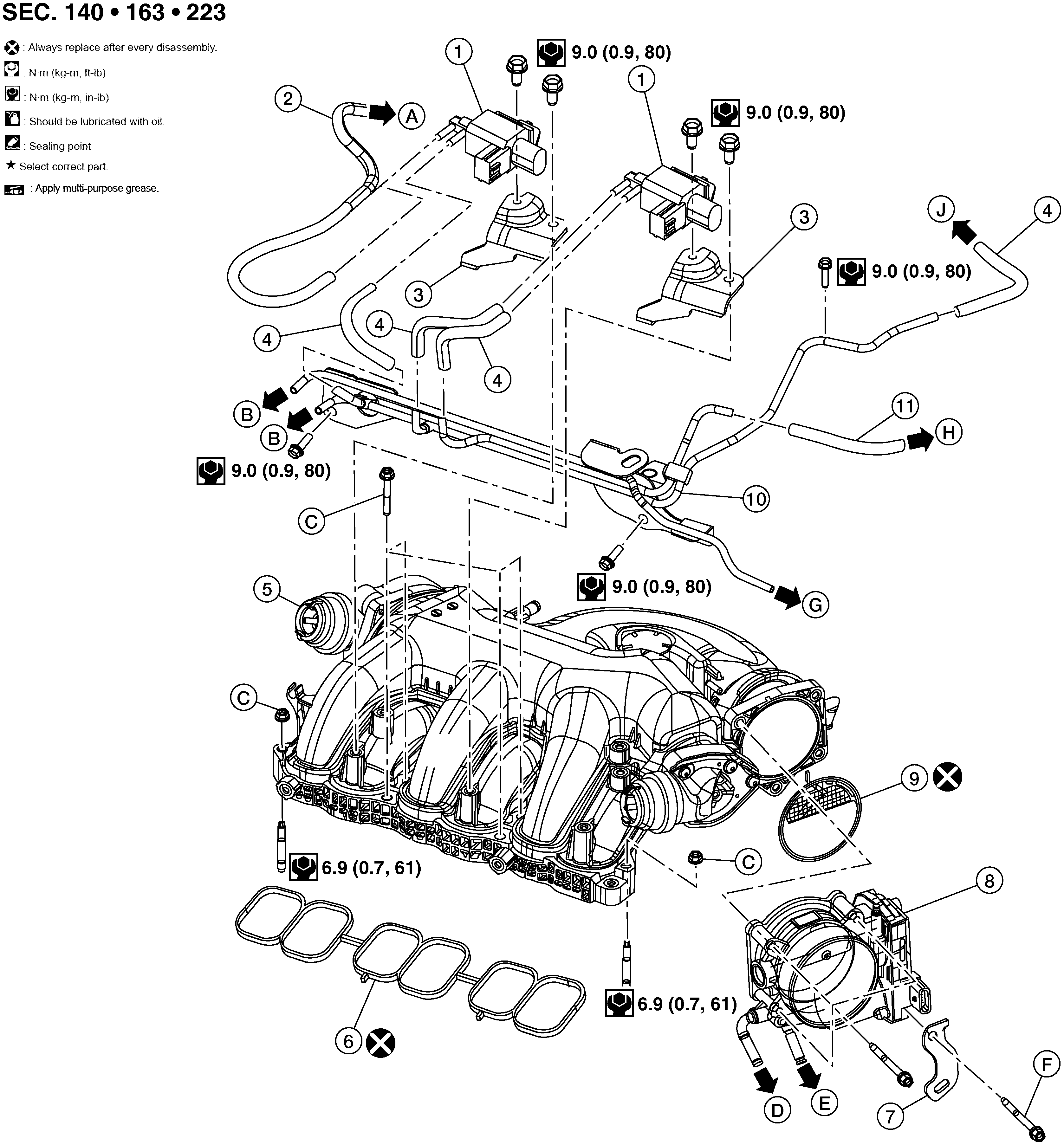

Fig 1: Intake Manifold Collector Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	VIAS control solenoid valve	2.	Vacuum hose 1	3.	VIAS control solenoid valve bracket
4.	Vacuum hose 2	5.	Intake manifold collector	6.	Intake manifold collector gasket
7.	Harness bracket	8.	Electronic throttle control actuator	9.	Electronic throttle control actuator gasket
10.	Vacuum tube assembly	11.	Vacuum hose 3	A.	To power valve actuator 1. Refer to Component Location .
B.	To electronic controlled engine mount control solenoid valve. Refer to Component Location .	C.	Refer to INSTALLATION	D.	To heater pipe. Refer to Exploded View .
E.	To water outlet. Refer to Exploded View .	F.	Refer to INSTALLATION	G.	To engine mount (FR). Refer to Exploded View (FWD) or Exploded View (AWD).
H.	To power valve actuator 2. Refer to Component Location .	J.	To intake manifold. Refer to Exploded View .
