Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

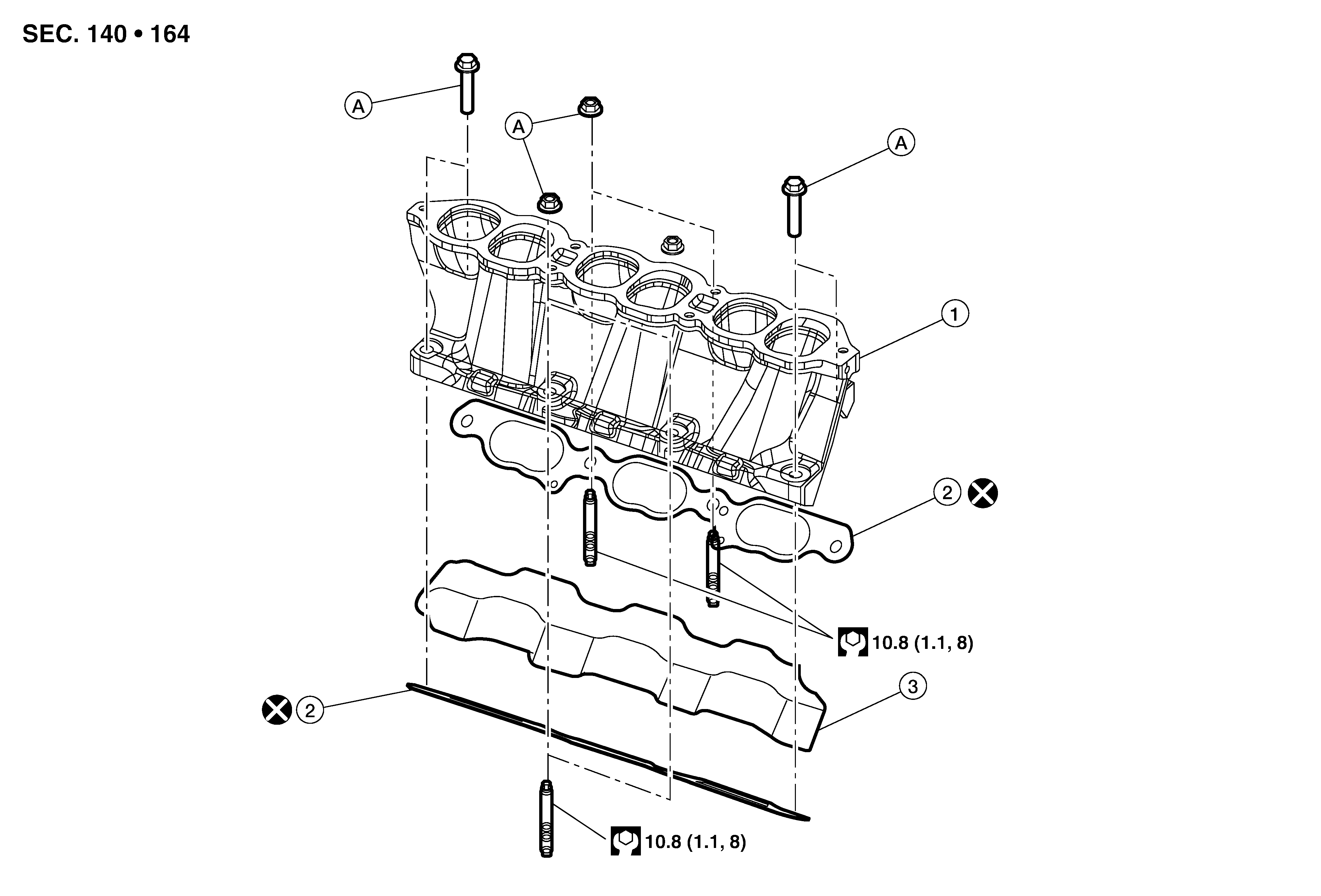

Fig 1: Intake Manifold Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intake manifold	2.	Intake manifold gasket	3.	Insulator
A.	Refer to INSTALLATION
