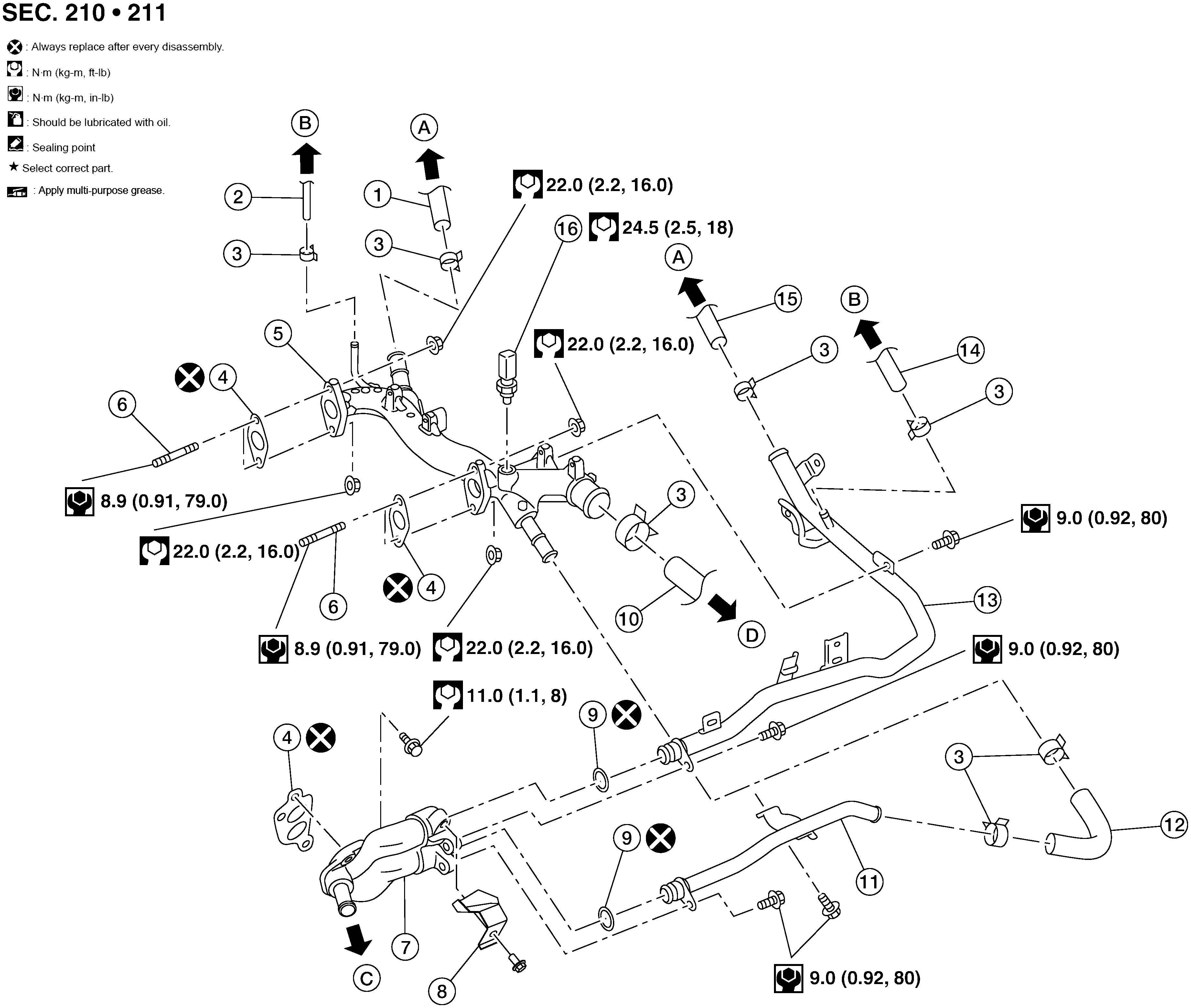

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Heater hose |
2. |
Water hose |
3. |
Clamp |
|
4. |
Gasket |
5. |
Water outlet |
6. |
Stud |
|
7. |
Water connector |
8. |
Engine oil dipstick guide |
9. |
O-ring |
|
10. |
Radiator hose (upper) |
11. |
Water bypass pipe |
12. |
Water hose |
|
13. |
Heater pipe |
14. |
Water hose |
15. |
Heater hose |
|
16. |
Coolant temperature sensor |
A. |
To heater core. Refer to Exploded View . |
B. |
To electric throttle control actuator. Refer to Exploded View . |
|
C. |
To oil cooler. Refer to Exploded View . |
D. |
To radiator. Refer to Exploded View . |
