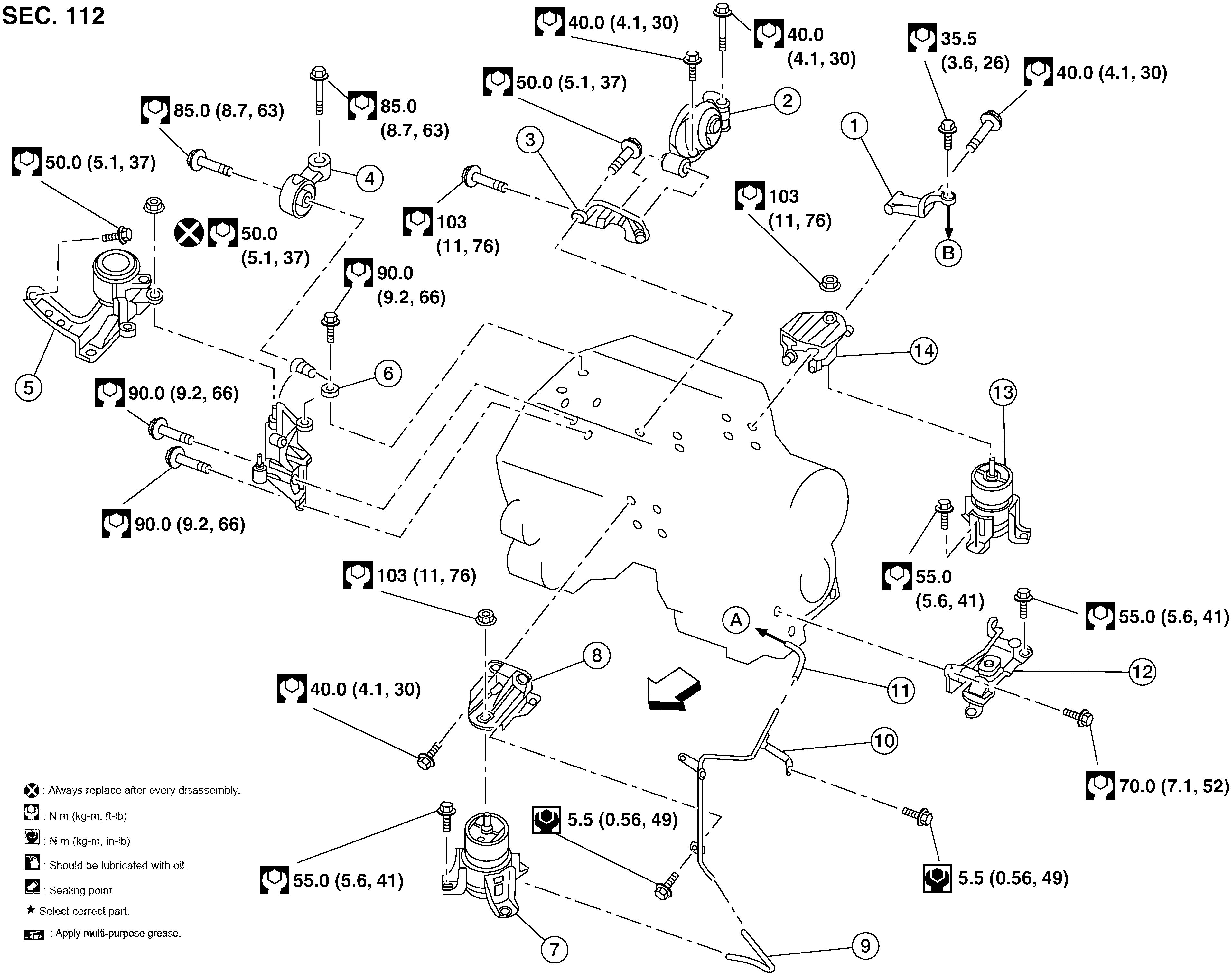

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Gusset |
2. |
Rear torque rod |
3. |
Rear torque rod bracket |
|
4. |
Upper torque rod |
5. |
Engine mounting insulator (RH) |
6. |
Engine mounting bracket (RH) |
|
7. |
Engine mounting insulator (front) |
8. |
Engine mounting bracket (front) |
9. |
Vacuum hose |
|
10. |
Vacuum tube (front) |
11. |
Vacuum hose |
12. |
Engine mounting insulator (LH) |
|
13. |
Engine mounting insulator (rear) |
14. |
Engine mounting bracket (rear) |
A. |
To electronic controlled engine mount control solenoid valve. Refer to COMPONENT LOCATION . |
|
B. |
To transaxle. Refer to Exploded View |
|
Front |
