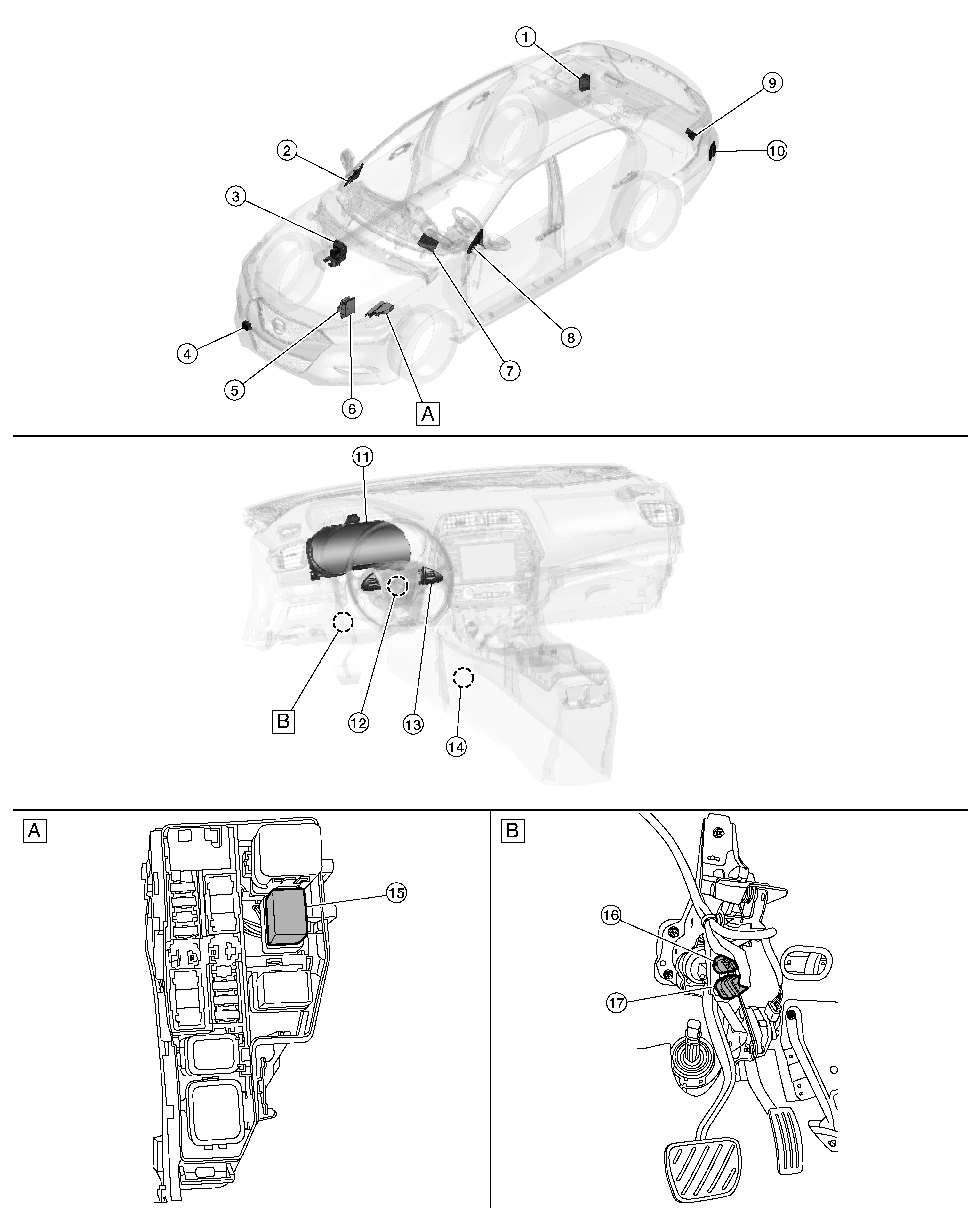

Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

View with fuse, fusible link and relay box cover removed

Upper side of brake pedal assembly

No.	Component	Description
1.	Side radar RH	Refer to Side Radar LH/RH .
2.	Blind Spot Warning indicator RH	Refer to Blind Spot Warning Indicator LH/RH .
3.	ABS actuator and electric unit (control unit)	ABS actuator and electric unit (control unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS control unit via CAN communication. ABS actuator and electric unit (control unit) controls the brake, based on a brake fluid pressure control signal received from ADAS control unit via CAN communication. Refer to Component Parts Location (without ICC) or Component Parts Location (with ICC) for detailed installation location.
4.	Distance sensor (ICC sensor)	Refer to Distance Sensor (ICC Sensor) .
5.	TCM	TCM transmits the signal related to CVT control to ADAS control unit. Refer to Component Parts Location for detailed installation location.
6.	ECM	Transmits the ICC brake switch signal, stop lamp switch signal, ICC steering switch signal, etc., to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
7.	BCM	Transmits the turn indicator signal and position light request signal to ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.
8.	Blind Spot Warning indicator LH	Refer to Blind Spot Warning Indicator LH/RH .
9.	ADAS control unit	ADAS control unit controls each system (ICC/I-FCW/AEB/BSW/RCTA), based on ITS communication signals and CAN communication signals from each control unit. ADAS control unit transmits engine torque command value, brake fluid pressure control signal, and buzzer output signal to each unit.
10.	Side radar LH	Refer to Side Radar LH/RH .
11.	Combination meter	Description: Combination Meter . Refer to Component Parts Location for detailed installation location.
12.	Steering angle sensor	Measures the rotation amount, rotation speed, and rotation direction of steering wheel and then transmits them to ADAS control unit via CAN communication. Refer to Component Parts Location (without ICC) or Component Parts Location (without ICC) for detailed installation location.
13.	ICC steering switch	Refer to ICC Steering Switch .
14.	Around view monitor control unit	Controls I-DA system, based on CAN communication signals received from each control unit. Refer to Component Parts Location for detailed installation location
15.	ICC brake hold relay	Refer to ICC Brake Hold Relay .
16.	Brake pedal position switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch .
17.	Stop lamp switch	Refer to Brake Pedal Position Switch / Stop Lamp Switch .
