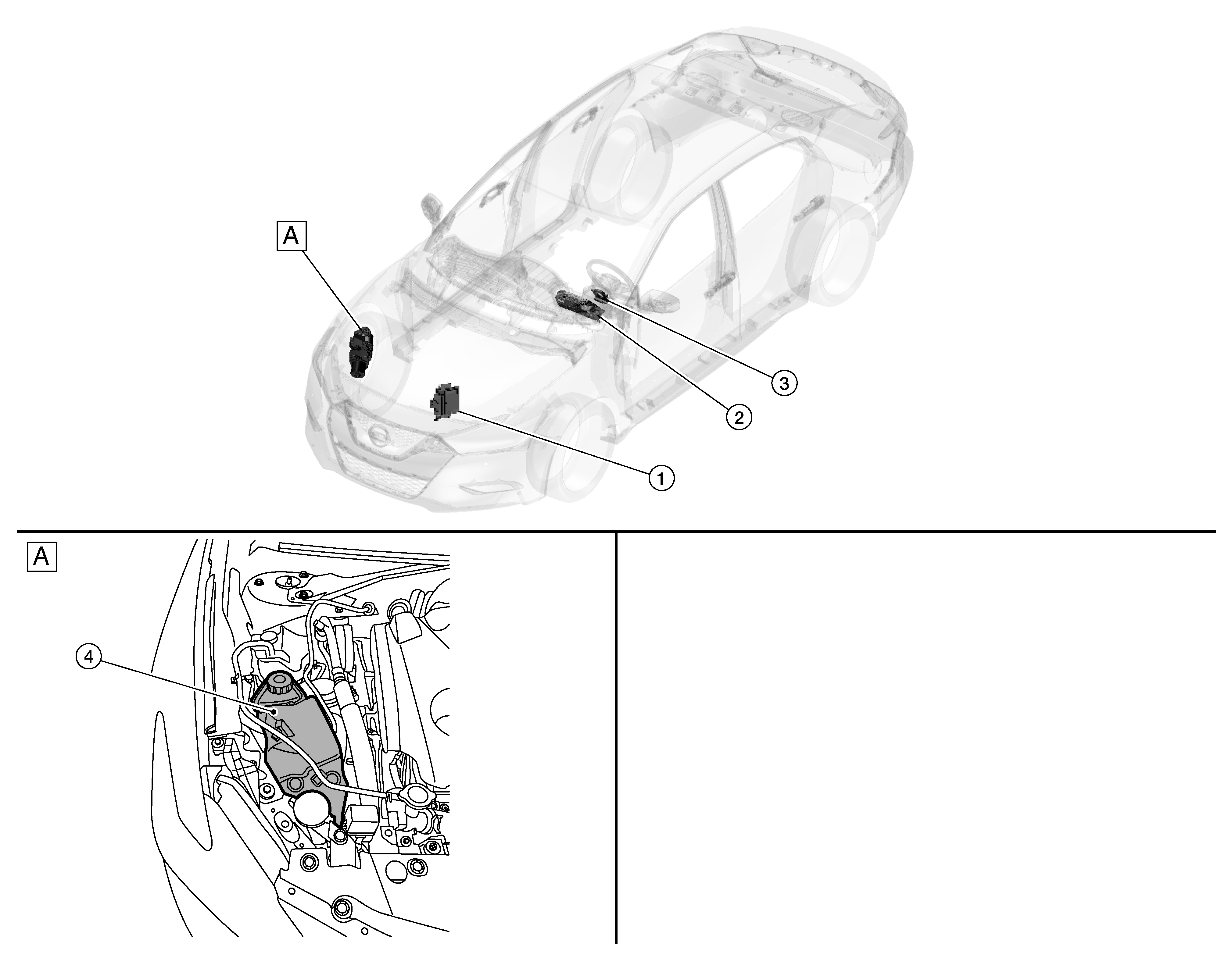

Component Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

A.	Engine room right side

No.	Component		Function
1.	ECM		Transmits mainly the following signal to power steering control module via CAN communication: Engine status signal Refer to Component Location for detailed installation location.
2.	Combination meter		Transmits mainly the following signal to power steering control module via CAN communication: Vehicle speed signal Refer to Component Location for detailed installation location.
			The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module.
3.	Steering angle sensor		Transmits mainly the following signal to power steering control module via CAN communication: Steering angle sensor signal Refer to Component Location (Without ICC) or Component Location (With ICC) for detailed installation location
4.	Power steering oil pump assembly	Reservoir tank	Power Steering Oil Pump Assembly
		Power steering oil pump
		Power steering motor
		Power steering control module
