Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

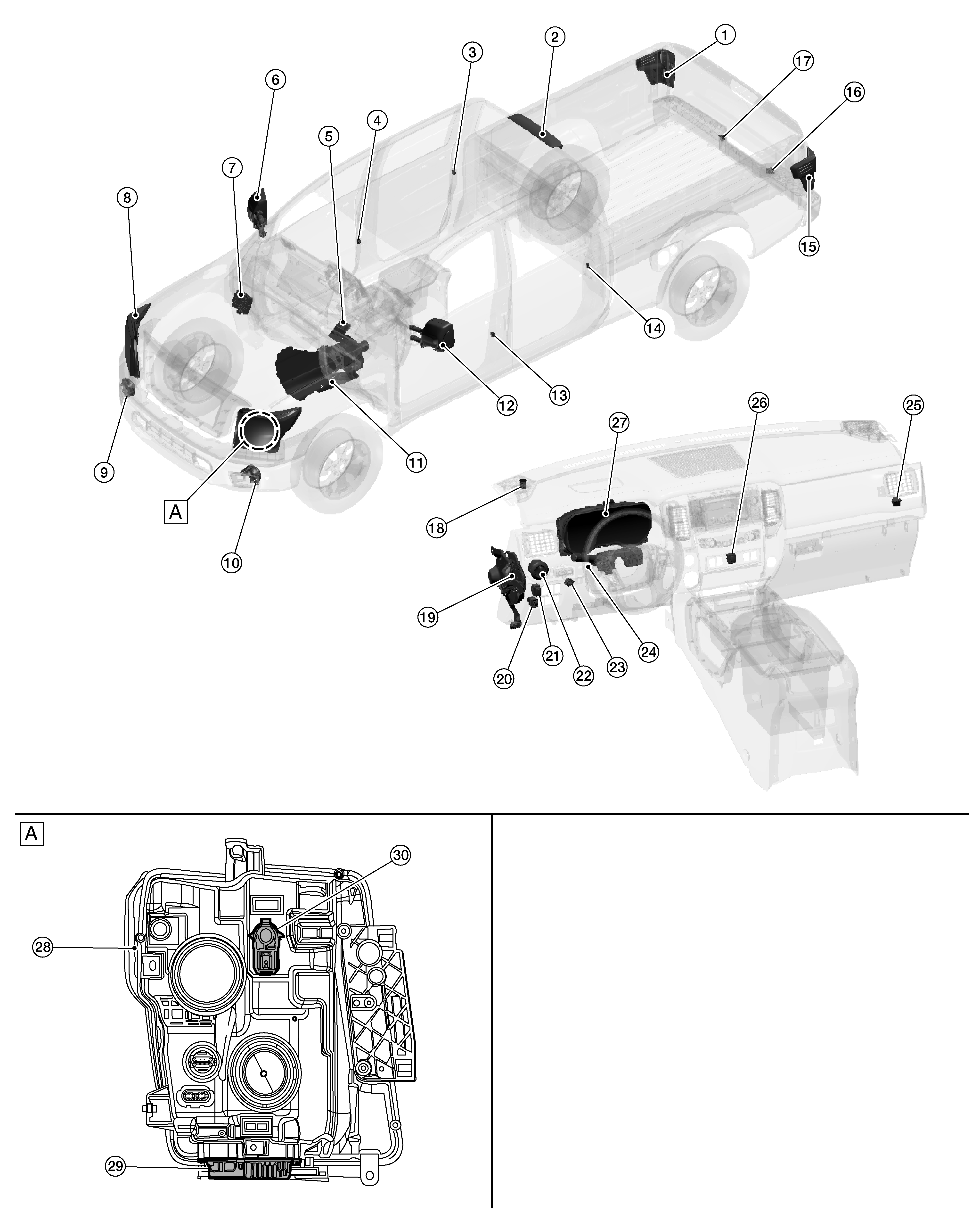

A.	Front combination lamp LH (view with combination lamp removed)

No.	Part	Function
1.	Rear combination lamp RH	Refer to Bulb Specifications .
2.	High-mounted stop lamp assembly	Refer to Bulb Specifications .
3.	Rear door switch RH	Transmits the door open signal to the BCM to operate the auto light system. Refer to Front Door Switch for front door switch or Rear Door Switch for rear door switch.
4.	Front door switch RH
5.	BCM	Detects each switch condition by the lighting switch, front fog lamp switch, and combination switch reading function. Judges that the exterior lamps are turned ON according to the vehicle condition. Requests the headlamp (HI/LO), tail lamp and front fog lamp ON to IPDM E/R (via CAN communication). Requests high beam indicator lamp ON to the combination meter (via CAN communication). Judges the outside brightness from the optical sensor signal. Judges the ON/OFF timing according to the vehicle condition. Judges the ON/OFF status of the exterior lamp according to the outside brightness and the vehicle condition. Refer to Component Parts Location for detailed installation location.
6.	Door mirror RH (turn signal)	Refer to Bulb Specifications .
7.	IPDM E/R	Supplies voltage to the load according to the request from BCM (via CAN communication). Refer to Component Parts Location for detailed installation location.
8.	Front combination lamp RH	Refer to Bulb Specifications .
9.	Front fog lamp assembly RH	Refer to Bulb Specifications .
10.	Front fog lamp assembly LH	Refer to Bulb Specifications .
11.	Transmission range switch (Cummins 5.0L)	Supplies ground to the back-up lamp relay to illuminate the back-up lamps. Refer to Component Parts Location for detailed installation location.
11.	TCM (VK56VD)	Supplies ground to the back-up lamp relay to illuminate the back-up lamps. Refer to Component Parts Location for detailed installation location.
12.	Door mirror LH (turn signal)	Refer to Bulb Specifications .
13.	Front door switch LH	Transmits the door open signal to the BCM to operate the auto light system. Refer to Front Door Switch for front door switch or Rear Door Switch for rear door switch.
14.	Rear door switch LH
15.	Rear combination lamp LH	Refer to Bulb Specifications .
16.	License plate lamp LH	Refer to Bulb Specifications .
17.	License plate lamp RH	Refer to Bulb Specifications .
18.	Optical sensor	Refer to Optical Sensor .
19.	Parking brake switch	Transmits the parking brake switch signal to the combination meter to operate the daytime running light system. Refer to Removal and Installation for detailed installation location.
20.	Headlamp aiming switch	Sends signals to the BCM for headlamp aiming adjustment.
21.	Front fog lamp switch	Sends signals to the BCM for fog lamp operation.
22.	Lighting switch	Sends signals to the BCM for headlamp operation.
23.	Stop lamp switch	Transmits power to the stop lamp relay to illuminate the stop lamps. Refer to Exploded View for detailed installation location.
24.	Combination switch (Lighting and turn signal switch)	Refer to Component Parts Location for detailed installation location.
25.	Back-up lamp relay	Supplies voltage to the back-up lamps according to control from transmission range switch (Cummins 5.0L) or TCM (VK56VD).
26.	Hazard switch	Refer to Hazard Switch .
27.	Combination meter	Refer to System Description .
28.	Front combination lamp LH	Refer to Bulb Specifications .
29.	LED headlamp control module	Refer to LED Headlamp Control Module .
30.	Headlamp aimimg motor	Refer to Headlamp Aiming Motor .
