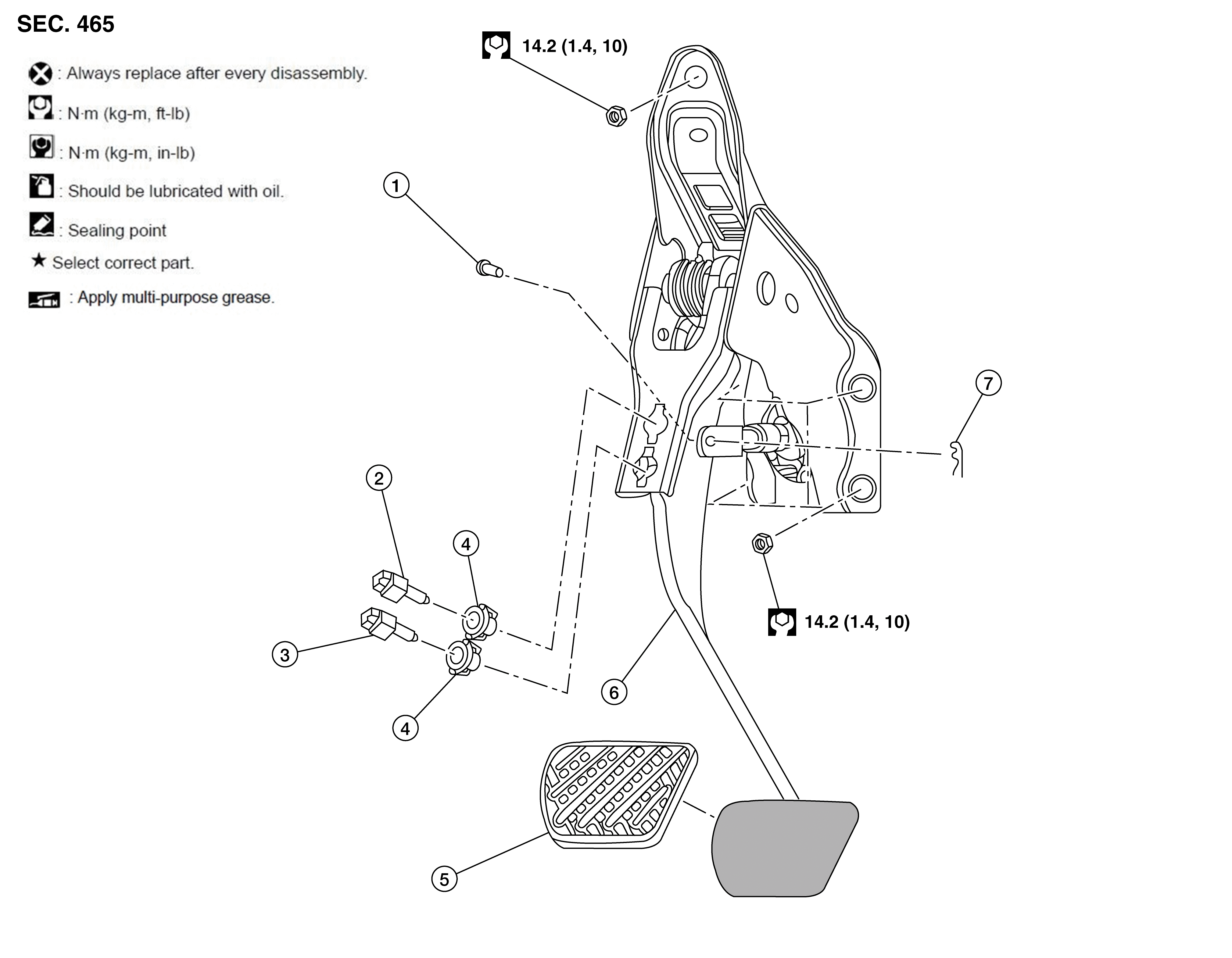

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Clevis pin
|
2.
|
Brake pedal position switch (VK56VD) or ASCD cancel switch (Cummins 5.0L)
|
3.
|
Stop lamp switch
|
|
4.
|
Clips
|
5.
|
Brake pedal pad
|
6.
|
Brake pedal assembly
|
|
7.
|
Snap pin
|
