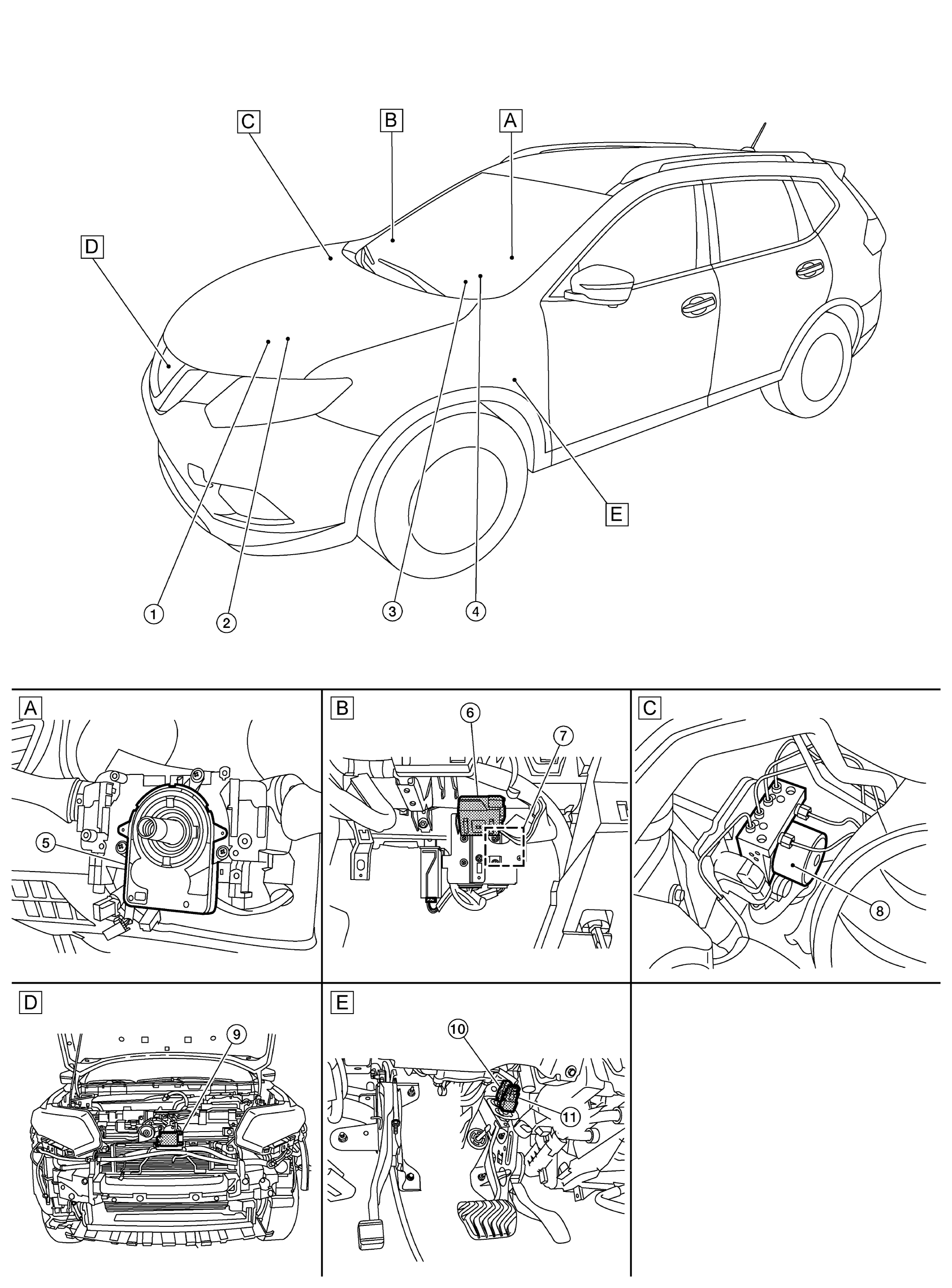

| 1. |
TCM |
- CVT control related signal is transmitted to distance sensor via CAN communication.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 2. |
ECM |
- When Forward Emergency Braking operates, an engine torque down request signal is received from the distance sensor.
- Refer to COMPONENT LOCATION
for detailed installation location. (QR25DE engine models)
|
| 3. |
BCM |
- Stop lamp switch signal is transmitted to the distance sensor via CAN communication.
- Refer to COMPONENT LOCATION
(with intelligent key system) or COMPONENT LOCATION
(without intelligent key system) for detailed installation location.
|
| 4. |
Combination meter |
- Performs the following operations using the signals received from the distance sensor via the CAN communication
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 5. |
Steering angle sensor |
Steering angle sensor signal is transmitted to distance sensor via CAN communication. |
| 6. |
Chassis control unit |
- Brake fluid pressure control signal is received from distance sensor via chassis communication.
- Brake fluid pressure control signal is transmitted to ABS actuator electric unit (control unit) via CAN communication.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 7. |
ADAS control unit |
Refer to ADAS CONTROL UNIT . |
| 8. |
ABS actuator and electric unit (control unit) |
- Vehicle speed signal and the operation statuses of the VDC, TCS and ABS systems, etc. are transmitted to the distance sensor via CAN communication.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 9. |
Distance sensor |
- Distance sensor detects radar reflected from a vehicle ahead by irradiating radar forward and calculates a distance from the vehicle ahead and relative speed, based on the detected signal.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 10. |
Brake pedal position switch |
- Brake pedal position switch is installed at the upper part of the brake pedal and detects a brake operation performed by the driver.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 11. |
Stop lamp switch |
- Stop lamp switch is installed at the upper part of the brake pedal and detects a brake operation performed by the driver.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
