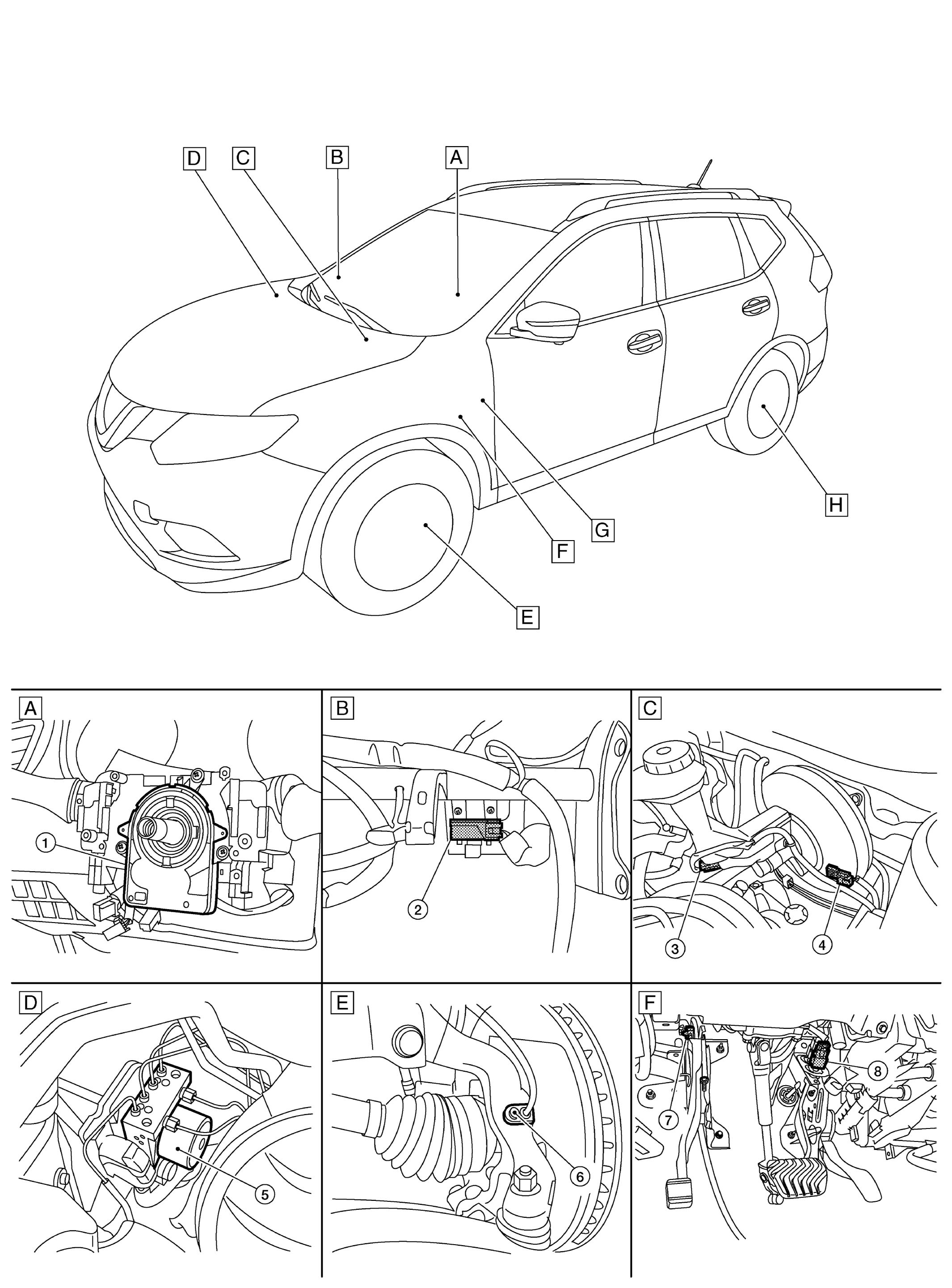

Component Location
| A. | Steering column (view with steering wheel removed) | B. | RH side of instrument panel (view with instrument panel removed) | C. | LH side of engine compartment |
| D. | RH side of engine compartment | E. | Left front wheel area | F. | Brake pedal area |

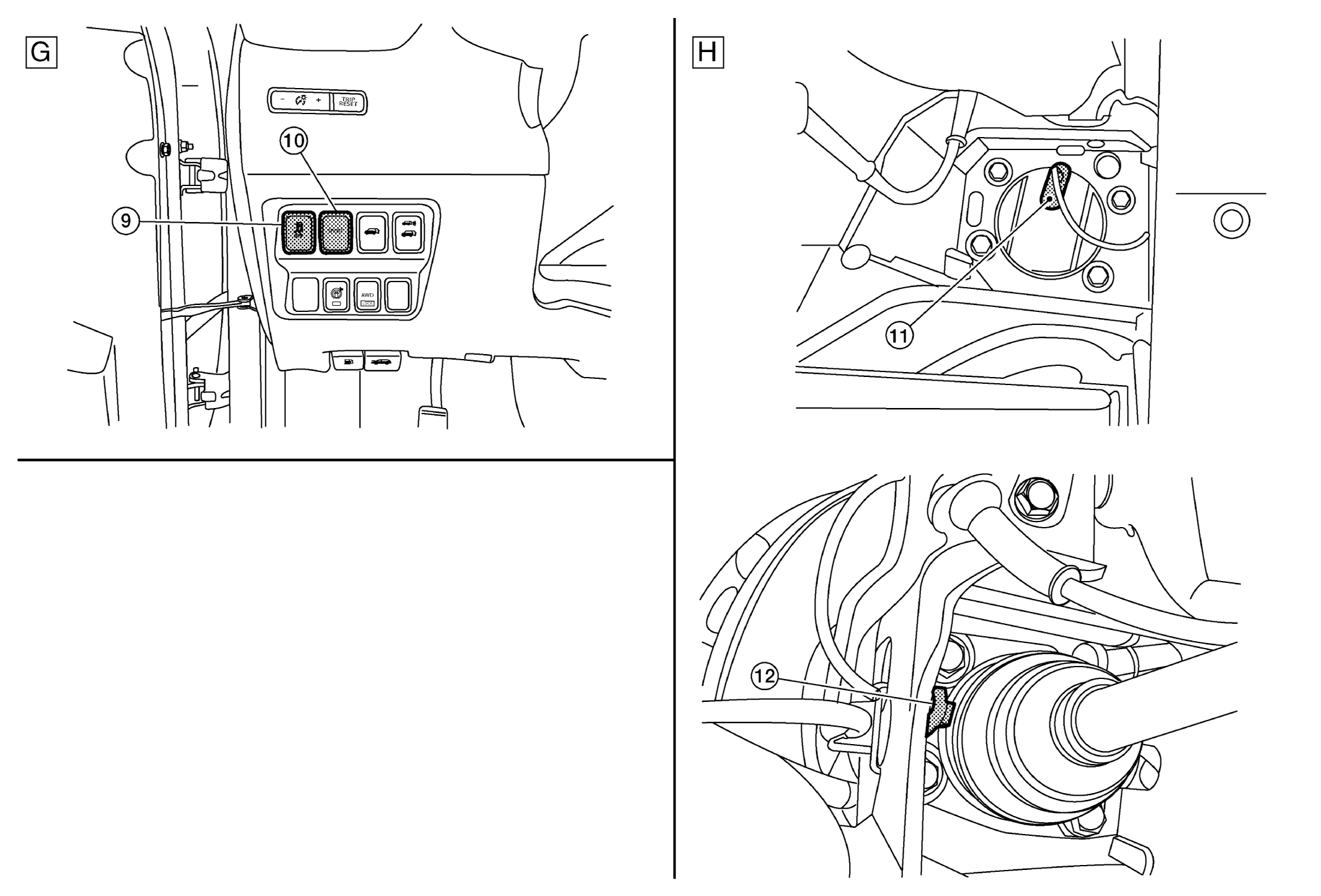

| G. | Left side of instrument panel | H. | Left rear wheel area |
| No. | Component parts | Function |
|---|---|---|
| 1. | Steering angle sensor | STEERING ANGLE SENSOR |
| 2. | Chassis control module | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Refer to COMPONENT LOCATION for detailed installation location. |
| 3. | Brake fluid level switch | BRAKE FLUID LEVEL SWITCH |
| 4. | Vacuum sensor | VACUUM SENSOR |
| 5. | ABS actuator and electric unit (control unit) | ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) |
| 6. | Front LH wheel sensor | WHEEL SENSOR AND SENSOR ROTOR |
| 7. | Parking brake switch | PARKING BRAKE SWITCH |
| 8. | Stop lamp switch | PARKING BRAKE SWITCH |
| 9. | VDC OFF switch | VDC OFF SWITCH |
| 10. | Drive mode switch | SPORT MODE SWITCH |
| 11. | Rear wheel sensor LH (FWD models) | WHEEL SENSOR AND SENSOR ROTOR |
| 12. | Rear wheel sensor LH (AWD models) | WHEEL SENSOR AND SENSOR ROTOR |
