Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

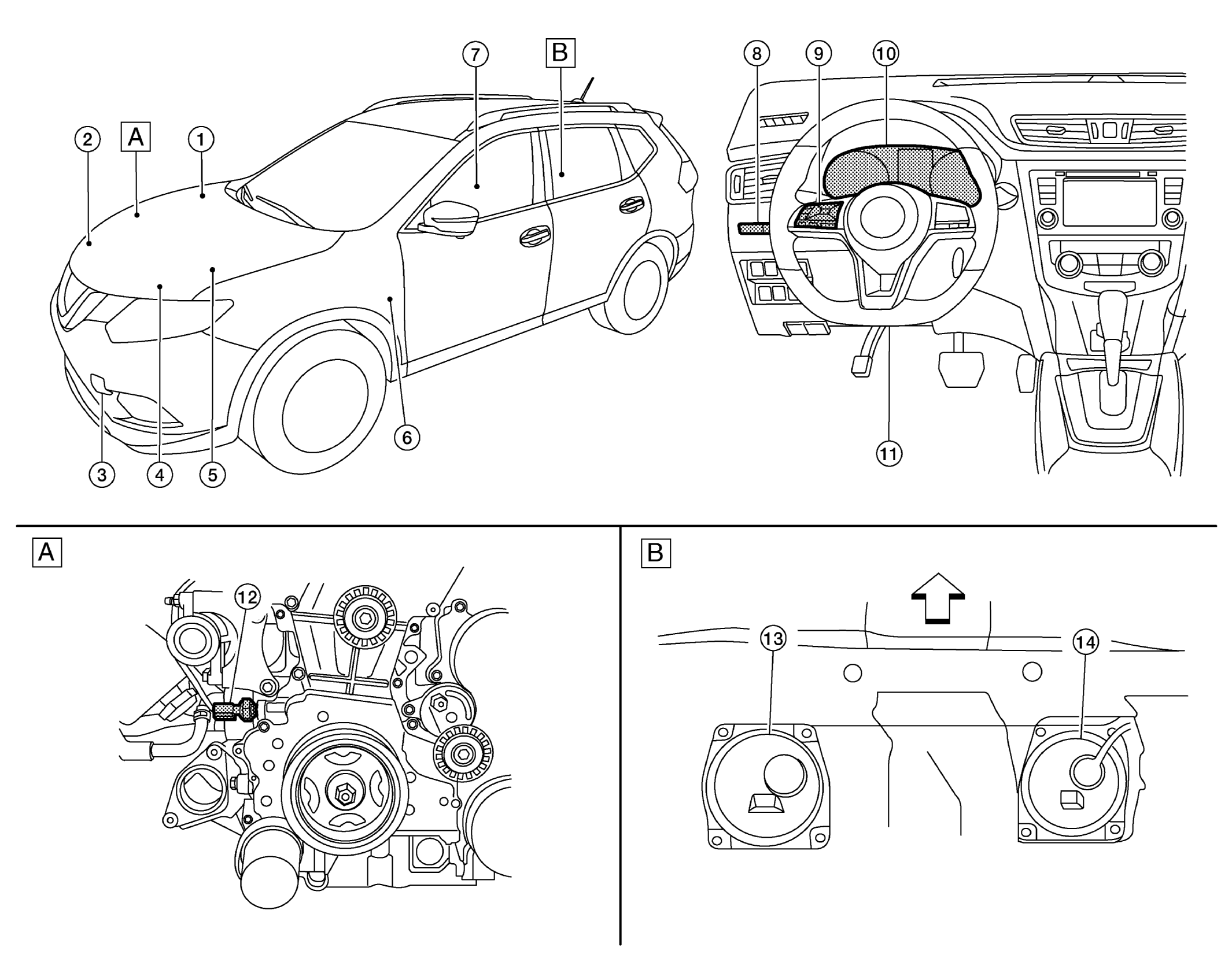

	Vehicle front
A.	View of front engine assembly	B.	View of the fuel pump and fuel level sensor inspection hole covers with the rear seat removed.

No.	Component	Function
1.	ABS actuator and electric unit (control unit)	Transmits each signal to the combination meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
2.	Washer fluid level switch	Transmits the washer fluid level switch signal to the combination meter. Refer to COMPONENT LOCATION for detailed installation location.
3.	Ambient sensor	Transmits the ambient sensor signal to the combination meter.
4.	ECM	Transmits each signal to the combination meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
5.	TCM	Transmits each signal to the combination meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
6.	BCM	Transmits each signal to the combination meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION (with Intelligent Key system) or COMPONENT LOCATION (without Intelligent Key system) for detailed installation location.
7.	Seat belt buckle switch LH	Transmits the seat belt buckle switch signal LH to the combination meter.
8.	Meter control switch	Refer to SWITCH NAME AND FUNCTION .
9.	Steering switches	Refer to SWITCH NAME AND FUNCTION .
10.	Combination meter	Refer to SYSTEM DESCRIPTION .
11.	Parking brake switch	Transmits the parking brake switch signal to the combination meter.
12.	Engine oil pressure sensor	Transmits the engine oil pressure sensor signal to the ECM.
13.	Fuel level sensor unit (sub)	Transmits the fuel level sensor signal to the combination meter.
14.	Fuel level sensor unit and fuel pump (fuel level sensor) (main)	Transmits the fuel level sensor signal to the combination meter.
