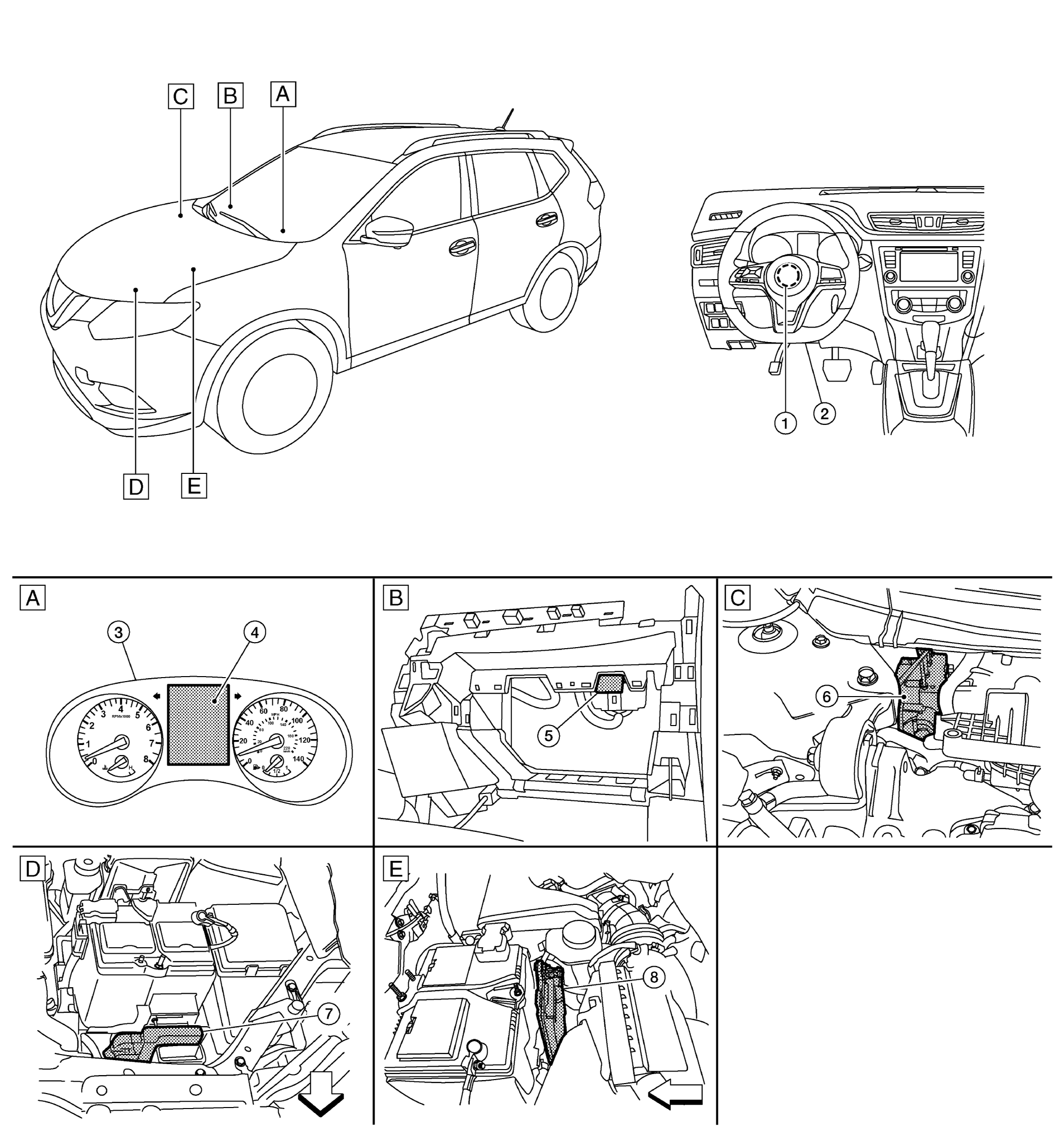

Component Location
| Front of vehicle | |||||
| A | Instrument panel LH | B | View with glove box assembly removed | C | Rear of engine compartment RH |
| D | Front of engine compartment LH | E | Rear of battery |
| No. | Component parts | Function |
|---|---|---|
| 1. | Steering angle sensor | SYSTEM DESCRIPTION |
| 2. | Data link connector | SYSTEM DESCRIPTION |
| 3. | Combination meter | SYSTEM DESCRIPTION |
| 4. | Vehicle information display | SYSTEM DESCRIPTION |
| 5. | Chassis control module | CHASSIS CONTROL MODULE |
| 6. | ABS actuator and electric unit (control unit) | SYSTEM DESCRIPTION |
| 7. | Engine control module | SYSTEM DESCRIPTION |
| 8. | Transmission control module | SYSTEM DESCRIPTION |
