Driver's Seat
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Check the operation of the driver's seat position sensor after any of these actions (see DRIVER'S SEAT POSITION SENSOR OPERATION CHECK ):
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement
NOTE:
- Put on gloves to protect your hands.
- If the side airbag has deployed, replace the seat frame and all related parts with new ones (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).
- Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
- Remove these items:
- Front seat outer recline cover (see FRONT SEAT RECLINE COVER REMOVAL/INSTALLATION )
- Front seat inner recline cover (see INNER RECLINE COVER )
- Front seat-back cover/pad (see FRONT SEAT-BACK COVER/PAD REPLACEMENT )
- Front seat cushion cover/pad (see FRONT SEAT CUSHION COVER/PAD REPLACEMENT )
- Front seat outer recline inner cover (see RECLINE INNER COVER )
- Front seat inner recline inner cover (see RECLINE INNER COVER )
- Seat belt buckle (see FRONT SEAT BELT BUCKLE )
- Side airbag (see SIDE AIRBAG REPLACEMENT )

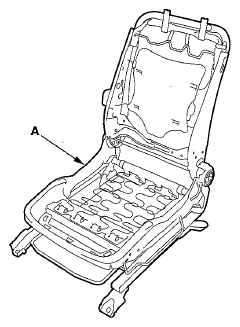

- Replace the front seat frame (A) with a new one.
- Reassemble the driver's seat in the reverse order of disassembly, and reinstall it in the vehicle.
