Front Seat Belt Buckle
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before beginning work.
- Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).

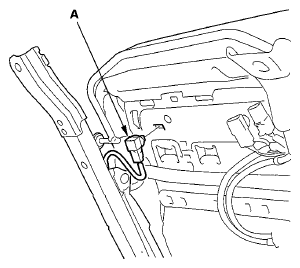

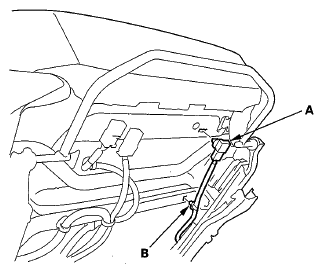

- Lift up the front seat, detach and disconnect the seat belt switch connector (A), then detach the harness clip (B) (on the passenger's seat).
Driver's seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Passenger's seat

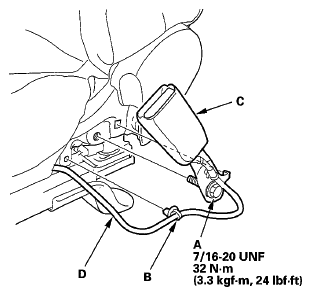

- Remove the center anchor bolt (A), and detach the harness clip (B), then remove the seat belt buckle (C).
Driver's seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Passenger's seat
- Pull the seat belt switch harness (D) out through the hole in the seat track.
- Install the buckle in the reverse order of removal, and note these items:

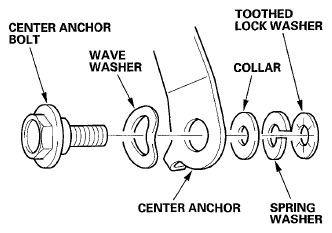

- Assemble the washers and the collar on the center anchor bolt as shown below.
- Tighten the bolts by hand first, then tighten to the specified torque.
- Make sure the seat belt switch connector is plugged in properly.
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
- Check for any DTCs that may have been set during repairs, and clear them.
Center anchor bolt installation
