Inner Recline Cover

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION  ).
  2. Remove the inner recline cover (A). The driver's seat is shown; the passenger's seat is symmetrical.
    1. Release the tabs (B) of the inner recline cover from the inner cover (C) with the appropriate trim tool.
    2. Detach the clip by pulling the cover out by hand.

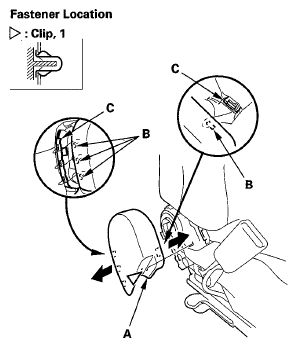

    Fig 1: Identifying Inner Recline Cover
    G05959623Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the cover in the reverse order of removal, and note these items:
    • If the clip is damaged, replace it with a new one.
    • Push the clip and the tabs into place securely.
