Right Engine Compartment Wire Harness (Dash branch)
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
Right Engine Compartment Wire Harness (Dash branch)

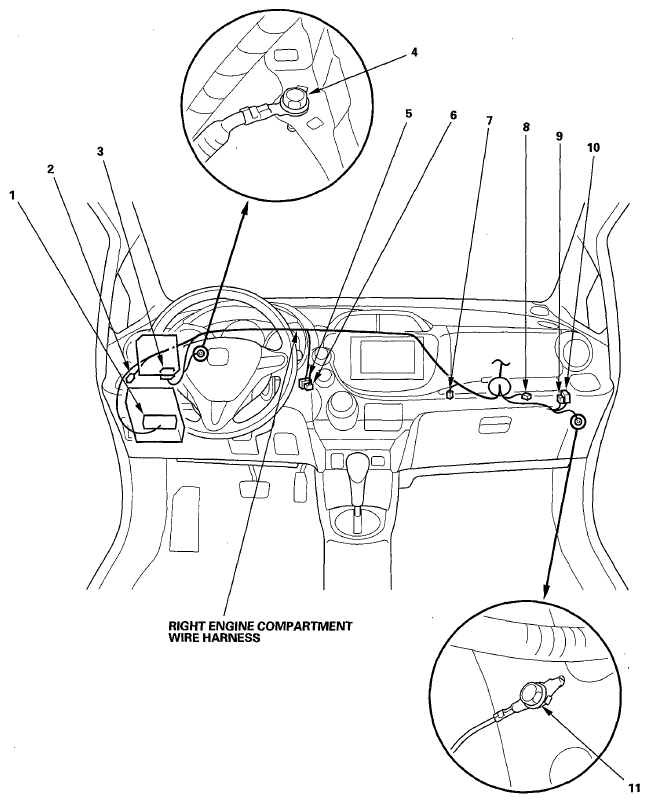

RIGHT ENGINE COMPARTMENT WIRE HARNESS CONNECTOR REFERENCE TABLE
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||||
|---|---|---|---|---|---|---|---|---|---|
| EPS control unit connector A | 3 | 11 | Under left side of dash | - | - | ||||
| Evaporator temperature sensor | 7 | 2 | Under right side of dash | - | - | ||||
| Optional connector (for fog light) | 2 | 1 | Under right side of dash | - | - | ||||
| Under-dash fuse/relay box connector A (see UNDER-DASH FUSE/RELAY BOX ) | 1 | 36 | Under right side of dash | - | - | ||||
| C201 | 10 | 13 | Under right side of dash | Dashboard wire harness (see
DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE) (WITH NAVIGATION) ), (1) Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE) (WITHOUT NAVIGATION) )(2) |
- | ||||
| C202 | 9 | 4 | Under right side of dash | Dashboard wire harness (see
DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE) (WITH NAVIGATION) ), (1) Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE) (WITHOUT NAVIGATION) )(2) |
- | ||||
| C203 | 5 | 13 | Under left side of dash | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - | ||||
| C204 | 6 | 2 | Under left side of dash | Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) | - | ||||
| C205 (Junction connector) | 8 | 12 | Under right side of dash | - | - | ||||
| G203 (for EPS) | 4 | - | Under left side of dash | Body ground, via right engine compartment wire harness | - | ||||
| G204 (for fog light) | 11 | - | Under right side of dash | Body ground, via right engine compartment wire harness | - | ||||
|
|||||||||
