Driver's Seat
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SRS components are located in this area. Review the SRS component locations
COMPONENT LOCATION INDEX
), and precautions and procedures
PRECAUTIONS AND PROCEDURES
) before doing repairs or servicing.
- Remove the driver's seat FRONT SEAT REMOVAL/INSTALLATION ).

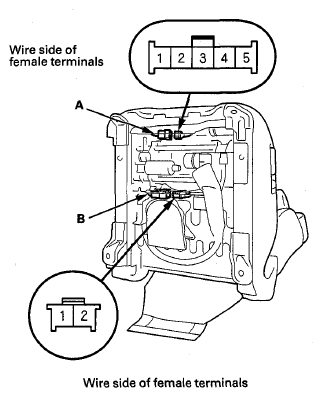

- Disconnect the 5P connector (A) from the seat cushion heater and 2P connector (B) from the seatback heater.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Seat Cushion Heater Test
- Check for continuity between seat cushion heater 5P connector terminals No. 3 and No. 4. There should be continuity. If there is no continuity, replace the seat cushion heater FRONT SEAT CUSHION HEATER ).
- Check for continuity between seat cushion heater 5P connector terminals No. 2 and No. 5. There should be continuity. If there is no continuity, replace the seat cushion heater FRONT SEAT CUSHION HEATER
).
Seat-Back Heater Test
- Check for continuity between seat-back heater 2P connector terminals No. 1 and No. 2. There should be continuity. If there is no continuity, replace the seat-back heater FRONT SEAT-BACK HEATER ).
- Reconnect the 5P and 2P connectors to the seat heaters, and check for continuity between seat cushion heater 5P connector terminal No. 1 and seat-back heater 2P connector terminal No. 1. There should be continuity. If there is no continuity, repair an open in the wire between the seat cushion heater and the seat-back heater.
