Front Seat Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Do the ODS unit initialization (see ODS UNIT INITIALIZATION ) after front passenger's seat replacement.

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to scratch the body or tear the seat covers.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Tilt the steering wheel all the way up, and push it all the way in.

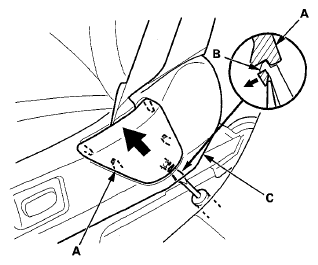

  2. Slide the front seat all the way forward, and adjust the seat to its maximum height. Carefully pry up on the bottom of the anchor cover (A) to release the tab (B) with a small flat-tip screwdriver from below inside the recline cover (C), then remove it.
    Fig 1: Sliding Front Seat
    G08053408Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Adjust the seat to its minimum height, then remove the lower anchor bolt (A).
    Fig 2: Lower Anchor Bolt With Torque Specifications
    G08053409Courtesy of AMERICAN HONDA MOTOR CO., INC.

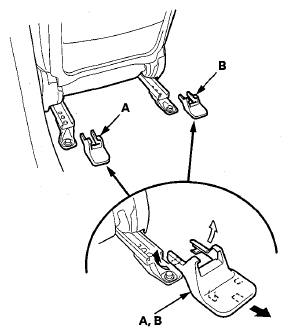

  4. Slide the seat all the way forward and remove the rear outer seat track end cover (A) and the rear inner seat track end cover (B).
    Fig 3: Identifying Rear Inner And Outer Seat Track End Cover
    G08053410Courtesy of AMERICAN HONDA MOTOR CO., INC.

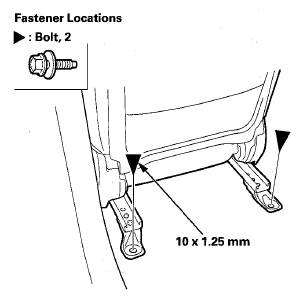

  5. Remove the bolts.
    Fig 4: Rear Inner And Outer Seat Track Bolt Location With Torque Specifications
    G08053411Courtesy of AMERICAN HONDA MOTOR CO., INC.

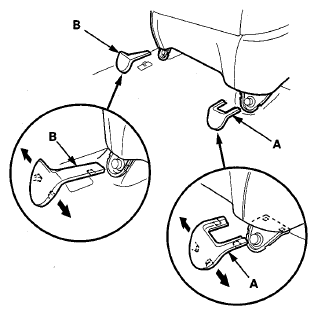

  6. Slide the seat all the way back, and remove the front outer seat track end cover (A) and the front inner seat track end cover (B).
    Fig 5: Removing Front Inner And Outer Seat Track End Covers
    G08053412Courtesy of AMERICAN HONDA MOTOR CO., INC.

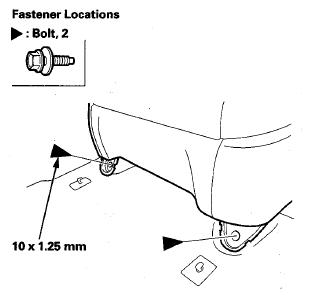

  7. Remove the bolts.
    Fig 6: Identifying Front Outer And Inner Seat Track End Cover Bolts
    G08053413Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), and wait at least 3 minutes before removing the seat.
  9. Lift up the front seat, then disconnect the power seat harness connector (A) and the side airbag connector (B). Disconnect the ODS unit connector (C) on the passenger's seat.

    Driver's seat

    Fig 7: Identifying Power Seat Harness Connector And Side Airbag Connector (Driver's Seat)
    G08053414Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Passenger's seat

    Fig 8: Identifying Power Seat Harness Connector And Side Airbag Connector (Passenger's Seat)
    G08053415Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the head restraint.
  11. With the help of an assistant, carefully remove the front seat through the front door opening.
  12. Install the seat in the reverse order of removal, and note these items:
    • Make sure the seat harness are routed correctly.
    • Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten (1) and (2), then slide it forward and tighten (3) and (4).
    • Make sure each connector is plugged in properly.
    • Tighten the bolts by hand first, then tighten them to specification with a torque wrench.
    • Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
    • Check for any DTCs that may have been set during repairs, and clear them.

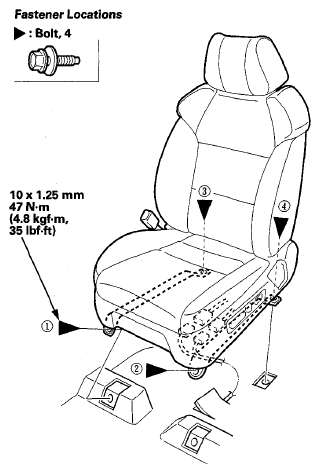

    Driver's seat

    Fig 9: Identifying Driver's Seat Mounting Bolts Tightening Sequence
    G08053416Courtesy of AMERICAN HONDA MOTOR CO., INC.

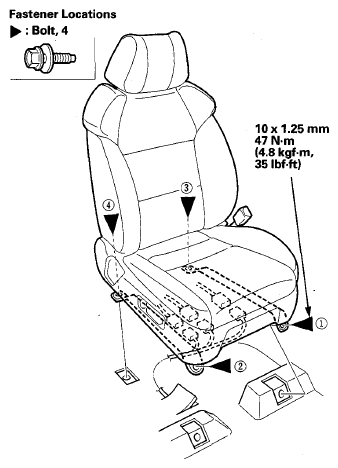

    Passenger's seat

    Fig 10: Identifying Passenger's Seat Mounting Bolts Tightening Sequence
    G08053417Courtesy of AMERICAN HONDA MOTOR CO., INC.
