Front Seat Cushion Heater

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SRS components are located in this area. Review the SRS component locations COMPONENT LOCATION INDEX ), and precautions and procedures PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the front seat cushion cover FRONT SEAT CUSHION COVER REPLACEMENT ).
Carefully remove the seat cushion heater (A) from the seat cushion pad (B).
NOTE: The seat cushion heater is glued to the seat cushion pad. When removing it, take care not to damage the seat cushion pad.

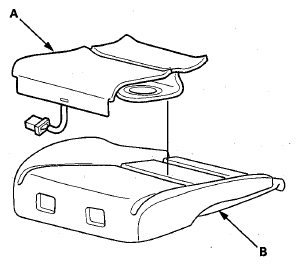

Fig 1: Identifying Seat Cushion Heater And Seat Cushion Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the removed parts in the reverse order of removal.
