Front Seat-Back Heater

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: SRS components are located in this area. Review the SRS component locations COMPONENT LOCATION INDEX ), and precautions and procedures PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
  1. Remove the front seat-back cover FRONT SEAT-BACK COVER REPLACEMENT ).
  2. Carefully remove the seat-back heater (A) from the seat-back pad (B).
    NOTE: The seat-back heater is glued to the seat-back pad. When removing it, take care not to damage the seat-back pad.

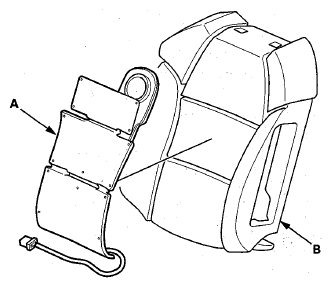

    Fig 1: Identifying Seat-Back Heater And Seat-Back Pad
    G08053849Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the removed parts in the reverse order of removal.
