Cluster Lid C

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

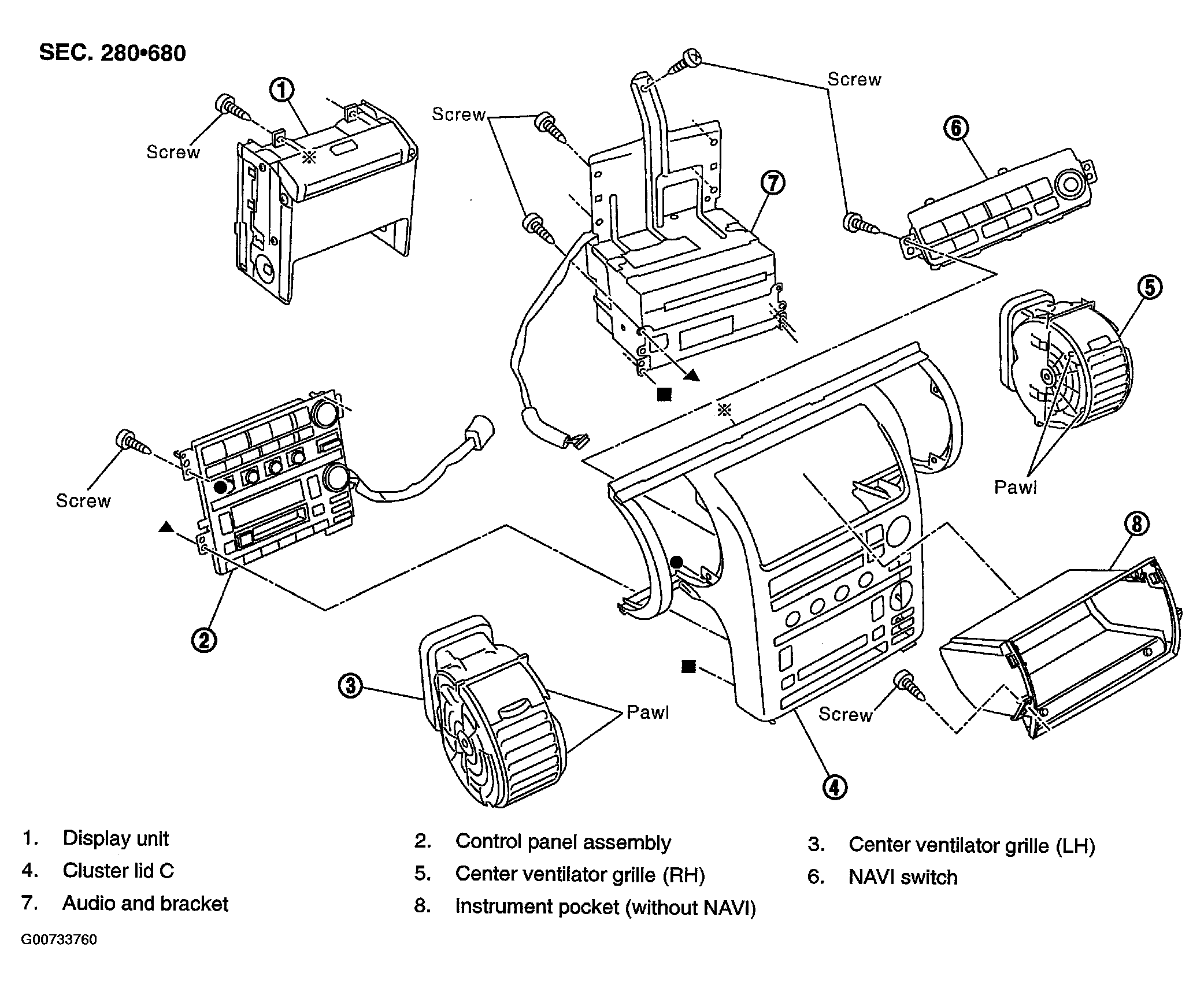

Fig 1: Exploded View Of Center Instrument Panel
G00733760Courtesy of NISSAN MOTOR CO., U.S.A.

Disassembly

  1. Disconnect pawl and remove center ventilator grille (RH side only).
  2. Remove display unit assembly and audio unit, NAVI switch and control panel assembly. Refer to REMOVAL AND INSTALLATION FOR AUDIO UNIT (COUPE) & DISASSEMBLY AND ASSEMBLY OF A/C AND AUDIO CONTROLLER (COUPE) OR REMOVAL AND INSTALLATION OF AUDIO UNIT (SEDAN) & REMOVAL AND INSTALLATION FOR A/C AND AUDIO CONTROLLER (SEDAN) . .
  3. Remove screws of instrument pocket, and then pull out instrument pocket. (Without NAVI)

Assembly

Assemble in the reverse order of disassembly.
