Disassembly and Assembly of A/C and Audio Controller

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

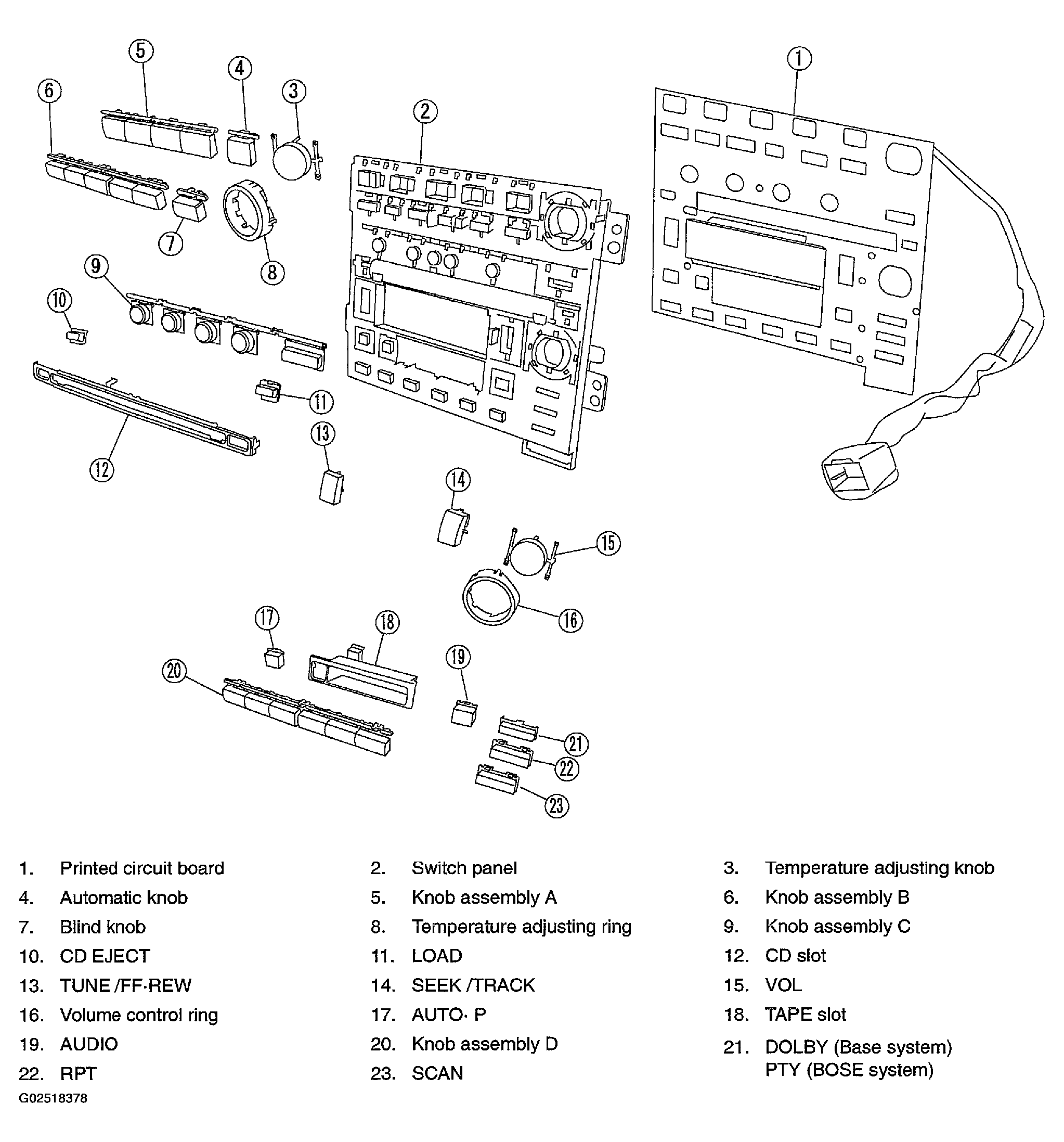

Fig 1: Disassembling/Assembling A/C And Audio Controller

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove screws (12), and remove printed circuit board.
CAUTION:
- Be sure not to damage printed circuit board by exposure.

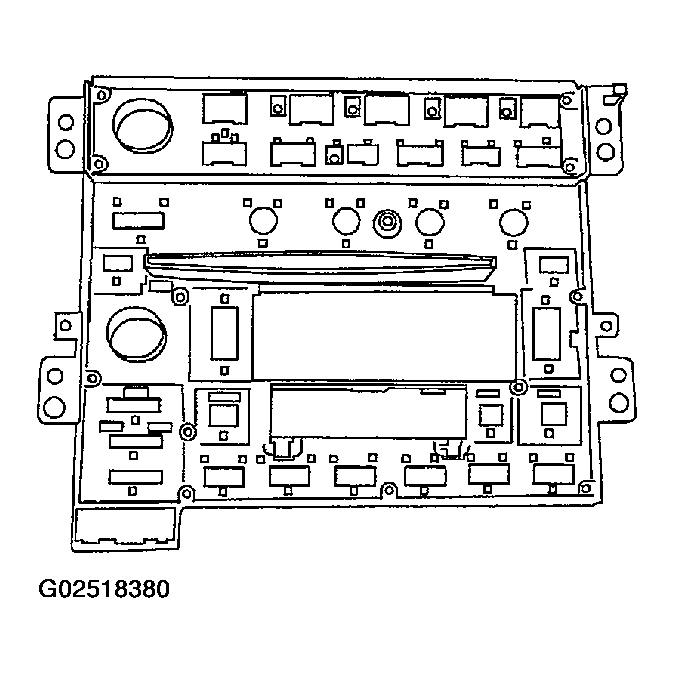

  Fig 2: Removing Printed Circuit Board
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove switches from back surface of switch panel using.

Fig 3: Removing Switches From Back Surface Of Switch Panel Using
Courtesy of NISSAN MOTOR CO., U.S.A.
