Removal and Installation of Audio Unit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform damper lock operation. Refer to "Locking CD Auto-changer Mechanism  ".
  2. Remove cluster lid C. Refer to (P) CLUSTER LID C in INSTRUMENT PANEL ASSEMBLY .
  3. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.
  4. Pull off flexible printed circuit from connector.

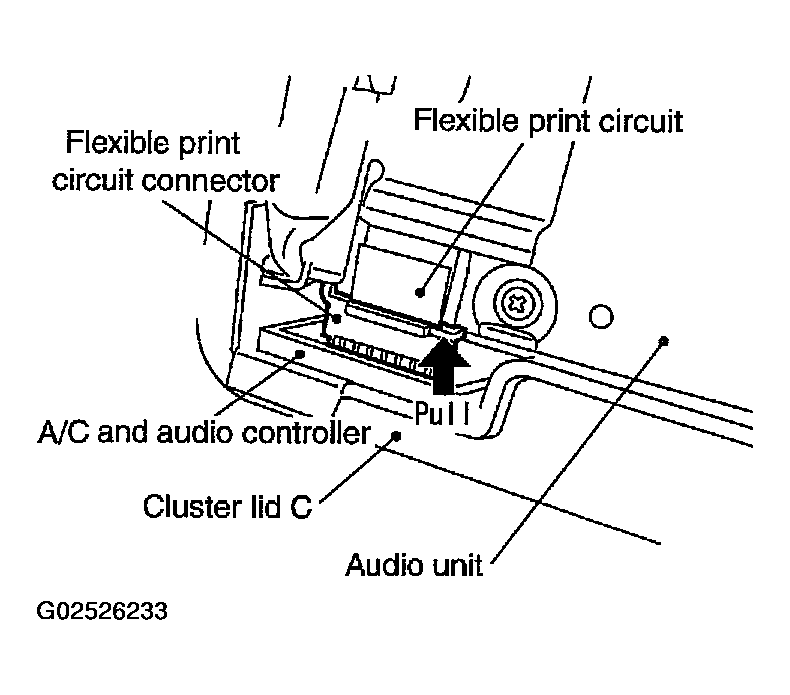

    Fig 1: Pulling Off Flexible Printed Circuit From Connector
    G02526233Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove screws (top: 2).

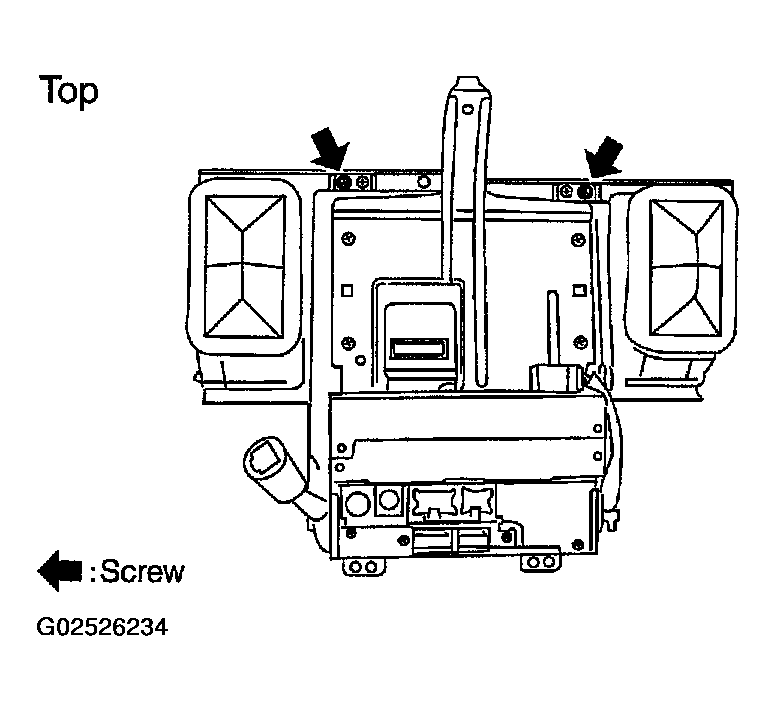

    Fig 2: Locating Screws Removal
    G02526234Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove screws (bottom: 4). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.
    Fig 3: Locating Audio Unit Removal Screws
    G02526235Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Separate audio unit from display unit assembly (with navigation system).

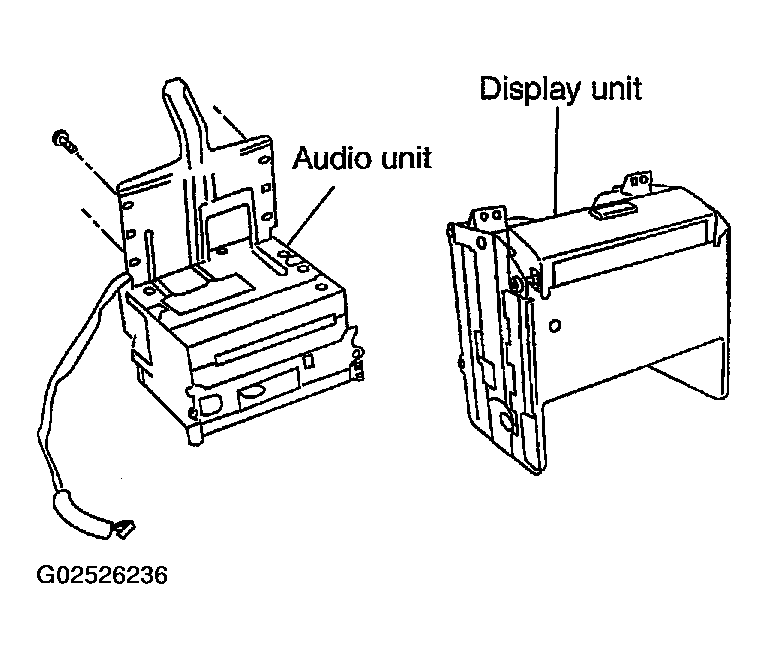

    Fig 4: Locating Audio Unit
    G02526236Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove 8 screws, and then bracket.
    CAUTION:
    • When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
    • Be careful not to allow foreign material to enter from cassette tape slot.
    • Removal and Installation of A/C and Audio Controller.
    Fig 5: Removing Bracket & Screws
    G02526237Courtesy of NISSAN MOTOR CO., U.S.A.
