Removal and Installation for A/C and Audio Controller

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove audio unit and display unit assembly (with navigation system) from cluster lid C.
  2. Remove screws (3) and remove A/C and audio controller.

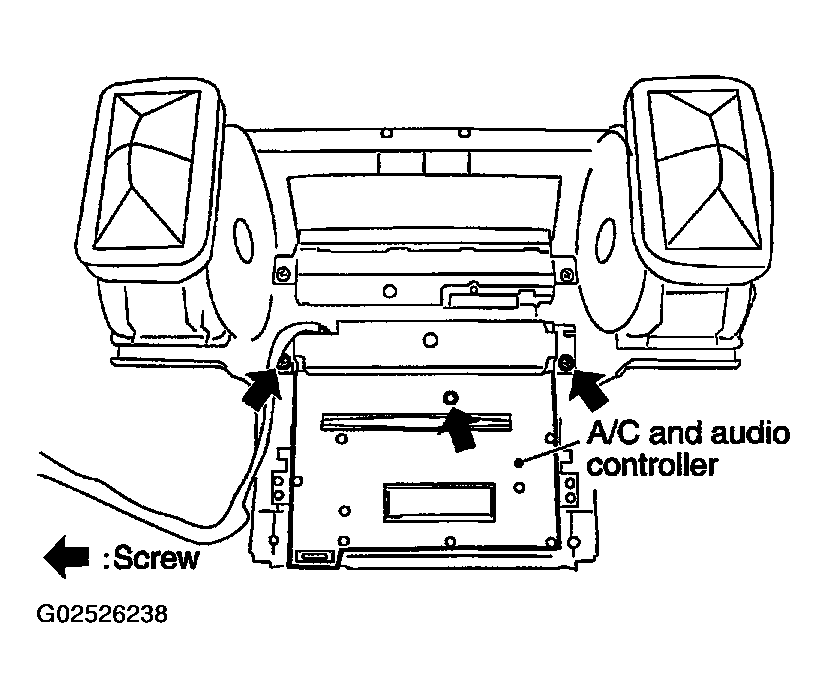

    Fig 1: Locating Screws Of A/C & Audio Controller
    G02526238Courtesy of NISSAN MOTOR CO., U.S.A.
