Cruise Test - Part 2

1. Confirm gear selector lever is in D position.
2. Accelerate vehicle by half throttle again.
3. Does vehicle start from D1 ?

   Read gear position.

Yes or No

1. Yes: GO TO 2.
2. No: Go to "16. VEHICLE DOES NOT START FROM D1 ". Continue ROAD TEST.

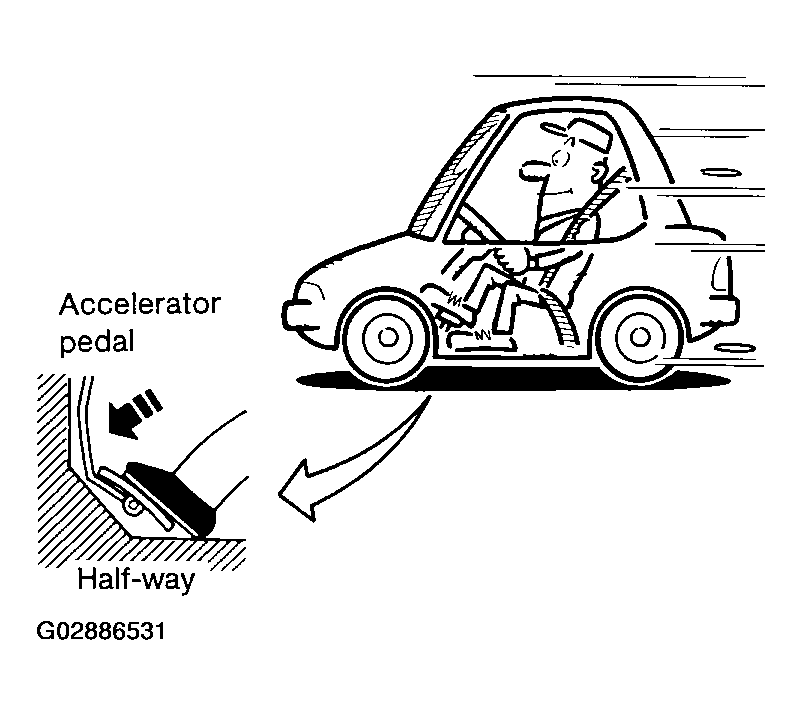

   Fig 1: Checking Starting Gear (D1) Position

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D4 to D2 as soon as accelerator pedal is depressed fully?

   Read gear position and throttle opening.

Yes or No

1. Yes: GO TO 3.
2. No: Go to "9. A/T DOES NOT SHIFT: D1 --> D2 OR DOES NOT KICKDOWN: D4 --> D2 ". Continue ROAD TEST.

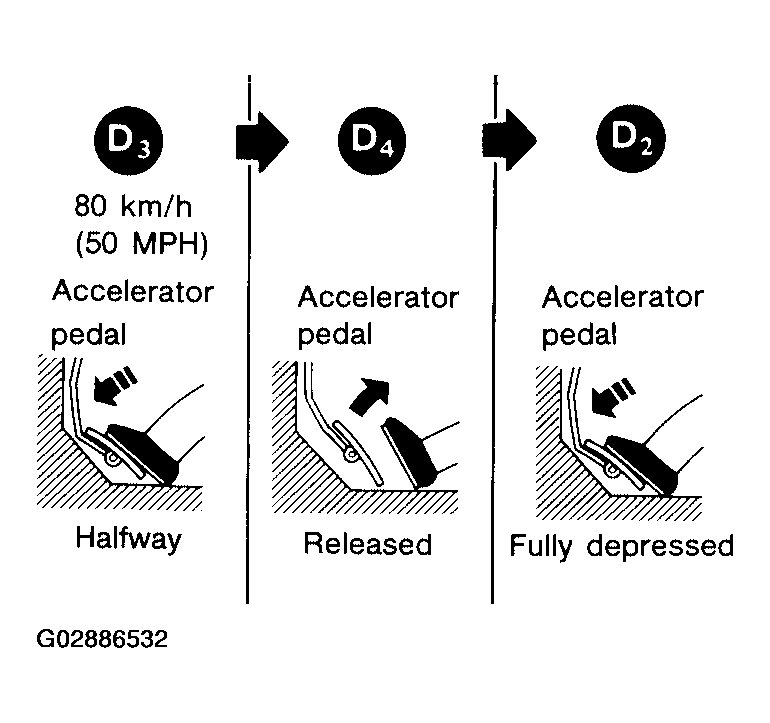

   Fig 2: Checking Shift Up And Shift Down (D3 To D4 To D2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T shift from D2 to D3 at the specified speed?

Read gear position, throttle opening and vehicle speed.

Specified speed when shifting from D2 to D3 :Refer to  "SHIFT SCHEDULE ".

Yes or No

1. Yes: GO TO 4.
2. No: Go to "10. A/T DOES NOT SHIFT: D2 --> D3 ". Continue ROAD TEST.

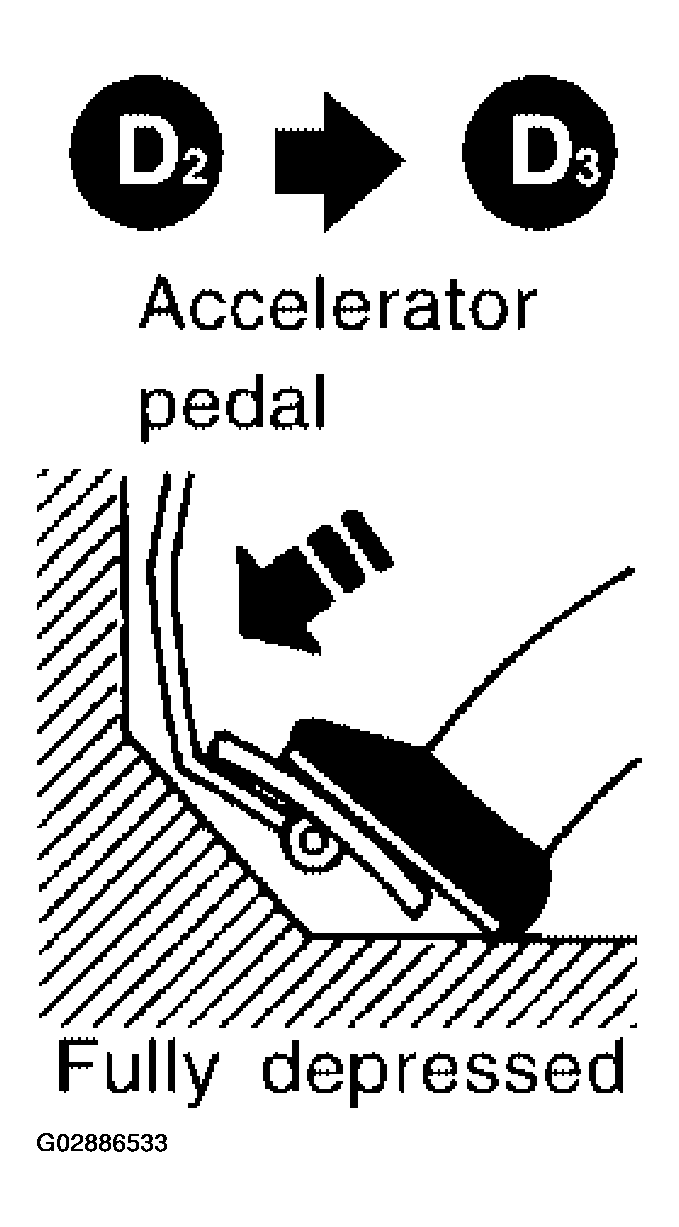

   Fig 3: Pressing Accelerator Pedal D2 To D3

   Courtesy of NISSAN MOTOR CO., U.S.A.

Release accelerator pedal after shifting from D2 to D3. Does A/T shift from D3 to D4 and does vehicle decelerate by engine brake?

Read gear position, throttle opening and vehicle speed.

Yes or No

1. Yes: GO TO NEXT STEP.
   1. Stop vehicle.
   2. Go to "CRUISE TEST - PART 3 ".
2. No: Go to "11. A/T DOES NOT SHIFT: D3 --> D4 ". Continue ROAD TEST.

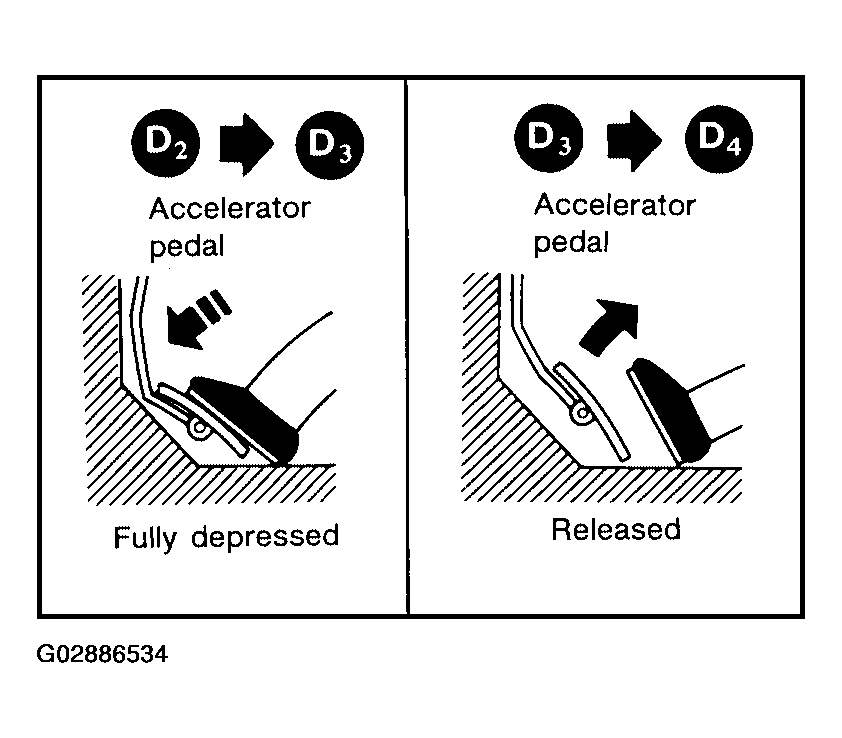

   Fig 4: Checking Shift Up (D3 To D4) And Engine Brake

   Courtesy of NISSAN MOTOR CO., U.S.A.
