16. Vehicle Does Not Start From D1

WARNING: This page is about a different variant/trim than selected.

SYMPTOM:

Vehicle does not start from D1 on Cruise test-Part 2.

CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor.A/T (revolution sensor), shift solenoid valve A, B or vehicle speed sensor.MTR after cruise test?

Yes or No
1. Yes: Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR) " "DTC P0750 SHIFT SOLENOID VALVE A " "DTC P0755 SHIFT SOLENOID VALVE B " or "DTC VEHICLE SPEED SENSOR MTR ".
2. No: GO TO 2.

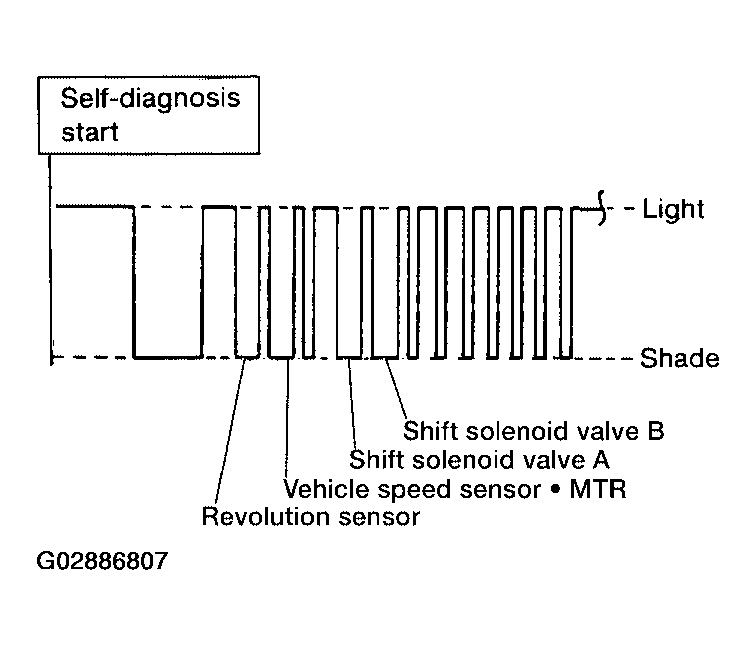

  Fig 1: Valve & Solenoid Self-Diagnostic Results
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SYMPTOM
Check again.

OK or NG
1. OK: Go to "8. VEHICLE CANNOT BE STARTED FROM D1 ".
2. NG: GO TO 3.
CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
