11. A/T Does Not Shift: D3 --> D4

SYMPTOM:

• A/T does not shift from D3 to D4 at the specified speed.
• A/T must be warm before D3 to D4 shift will occur.

1. CHECK SYMPTOM

   Are "7. Vehicle Does Not Creep Forward In D, 3, 2 Or 1 Position" and "8. Vehicle Cannot Be Started From D1" OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to "7. VEHICLE DOES NOT CREEP FORWARD IN D, 3, 2 OR 1 POSITION " and "8. VEHICLE CANNOT BE STARTED FROM D1 ".
2. CHECK SELF-DIAGNOSTIC RESULTS

   With CONSULT-II

   Does self-diagnosis, after cruise test, show damage to any of the following circuits?

   • Park/neutral position (PNP) switch
   • Overdrive control switch
   • A/T fluid temperature sensor
   • Vehicle speed sensor.A/T (revolution sensor)
   • Shift solenoid valve A or B

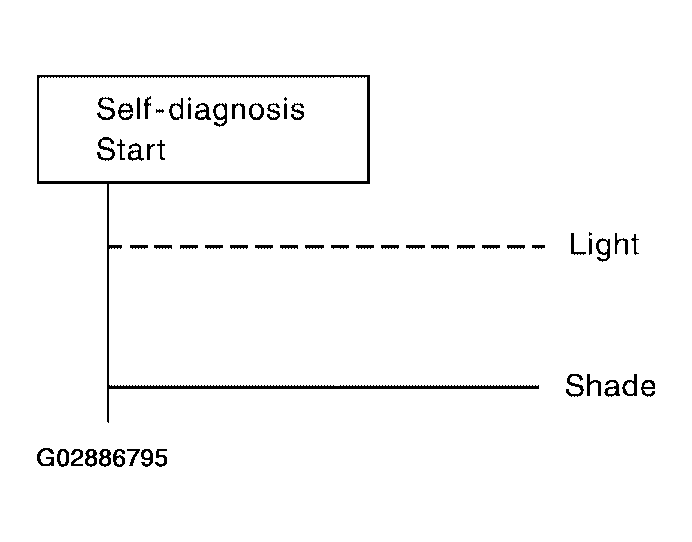

     Fig 1: Checking Self-Diagnostic Result (With CONSULT-II) (1 Of 2)

     Courtesy of NISSAN MOTOR CO., U.S.A.
   • Vehicle speed sensor.MTR

   Yes or No

   1. Yes: Check damaged circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH " "DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT " "DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR) " "DTC P0750 SHIFT SOLENOID VALVE A " "DTC P0755 SHIFT SOLENOID VALVE B " or "DTC VEHICLE SPEED SENSOR MTR ".
   2. No: GO TO 3.

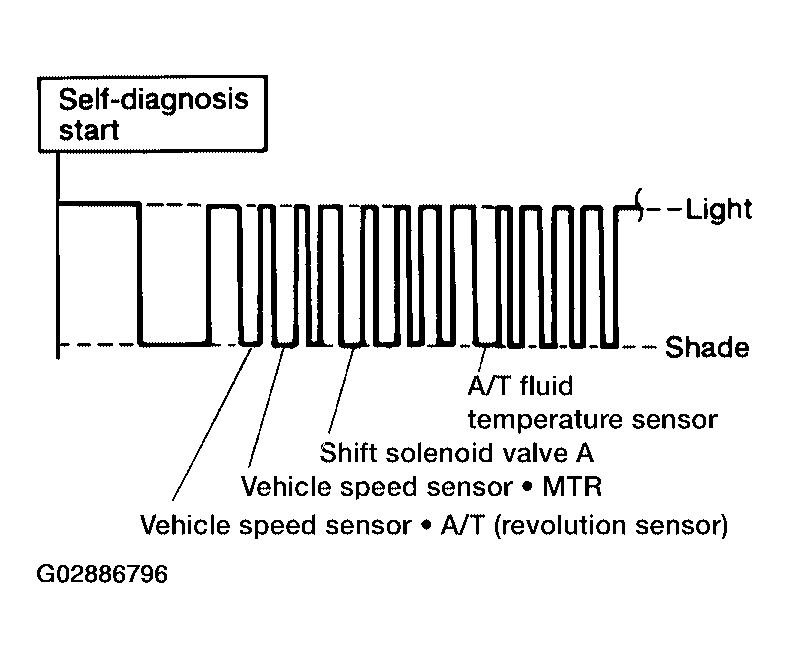

      Fig 2: Checking Self-Diagnostic Result (With CONSULT-II) (2 Of 2)

      Courtesy of NISSAN MOTOR CO., U.S.A.
3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to "DTC P0122, P0123: TP SENSOR " and "DTC P2122, P2123: APP SENSOR " (with QR25DE), or "DTC P0122, P0123: TP SENSOR " and "DTC P2122, P2123: APP SENSOR " (with VQ35DE).

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

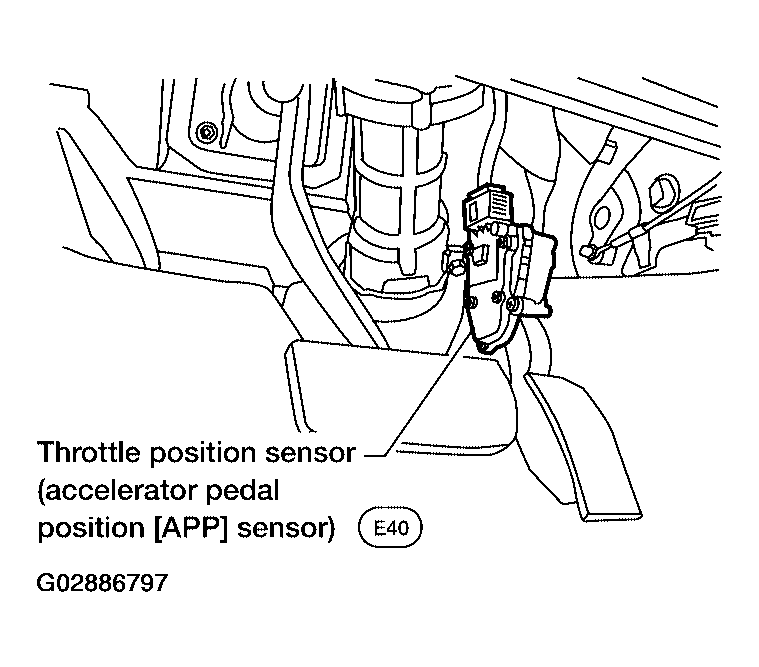

      Fig 3: Throttle Position Sensor

      Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.
      Fig 4: Checking Automatic Transaxle Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check the following items:
      • Shift valve B
      • Overrun clutch control valve
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Servo piston assembly
      • Brake band
      • Torque converter
      • Oil pump assembly

   OK or NG

   1. OK: GO TO  7.
   2. NG: Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "CONTROL VALVE ASSEMBLY AND ACCUMULATORS ".
   2. Check the following items:
      • Shift valve B
      • Overrun clutch control valve
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
