2. Check At Idle

1. Park vehicle on flat surface.
2. Turn ignition switch to "OFF" position.
3. Move selector lever to "P" or "N" position.
4. Turn ignition switch to start position.
5. Is engine started?

Yes or No

1. Yes: GO TO 2.
2. No: Go to "Engine Cannot Be Started In "P " and "N" Position", .

1. Turn ignition switch to "OFF" position.
2. Move selector lever to "D", "1", "2" or "R" position.
3. Turn ignition switch to start position.
4. Is engine started?

Yes or No

1. Yes: Go to "Engine Cannot Be Started In "P " and "N" Position", .
2. No: GO TO 3.

1. Turn ignition switch to "OFF" position.
2. Move selector lever to "P" position.
3. Release parking brake.
4. Push vehicle forward or backward.
5. Does vehicle move when it is pushed forward or backward?

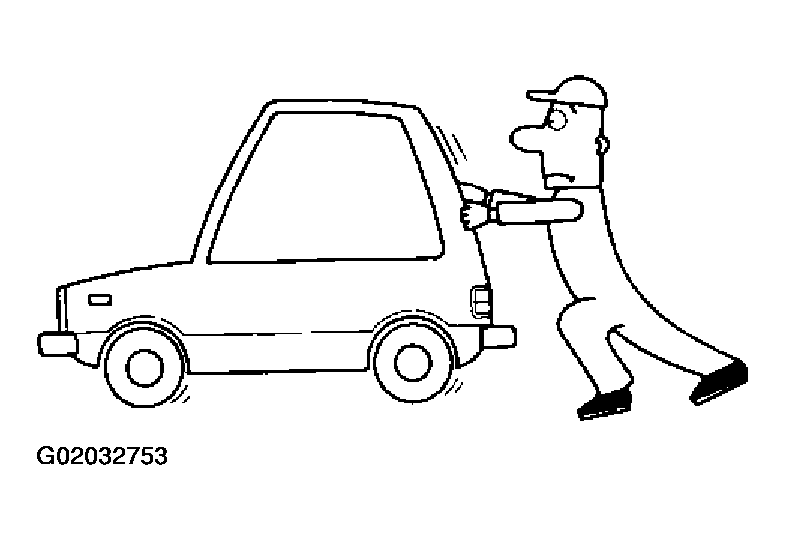

   Fig 1: Pushing Vehicle

   Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: Go to "In "P " Position, Vehicle Moves Forward Or Backward When Pushed", .
2. No: GO TO 4.

1. Apply parking brake.
2. Move selector lever to "N" position.
3. Turn ignition switch to "START" position and start engine.
4. Release parking brake.
5. Does vehicle move forward or backward?

Yes or No

1. Yes: Go to "In "N " Position, Vehicle Moves", .
2. No: GO TO 5.

1. Apply foot brake.
2. Move selector lever to "R" position.
3. Is there large shock when changing from "N" to "R" position?

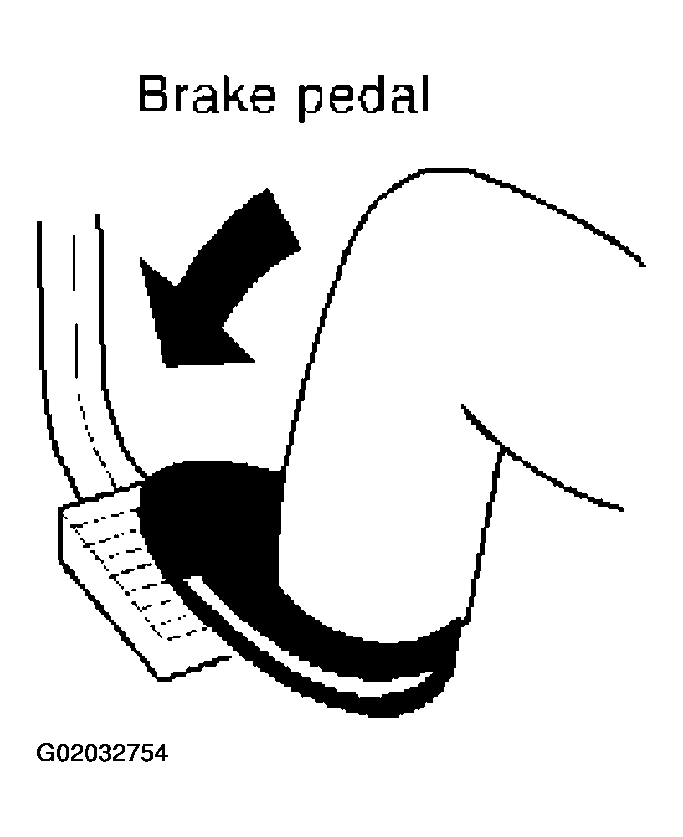

   Fig 2: Pressing Brake Pedal

   Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

1. Yes: Go to LARGE SHOCK. "N" -> "R" Position , .
2. No: GO TO 6.

1. Release foot brake for several seconds.
2. Does vehicle creep backward when foot brake is released?

Yes or No

1. Yes: GO TO 7.
2. No: Go to "Vehicle Does Not Creep Backward In "R " Position", .

1. Move selector lever to "D", "2" and "1" position and check if vehicle creeps forward.
2. Does vehicle creep forward in all three positions?

Yes or No

1. Yes: Go to "CRUISE TEST ", .
2. No: Go to "Vehicle Does Not Creep Forward In "D ", "2" Or "1" Position", .
