In "N" Position, Vehicle Moves

SYMPTOM:

Vehicle moves forward or backward when selecting "N" position.

1. CHECK PNP SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in Data Monitor show damage to PNP switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to PNP switch circuit?

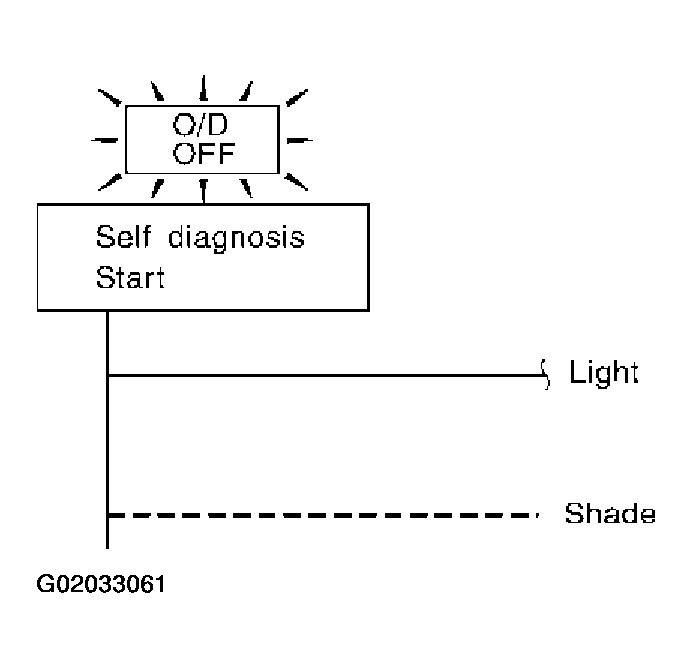

   Fig 1: Checking PNP Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Yes or No

   1. Yes: Check PNP switch circuit. Refer to "DTC P0705 ".
   2. No: GO TO 2.
2. CHECK CONTROL LINKAGE

   Check control linkage. Refer to - 2WD MODEL - .

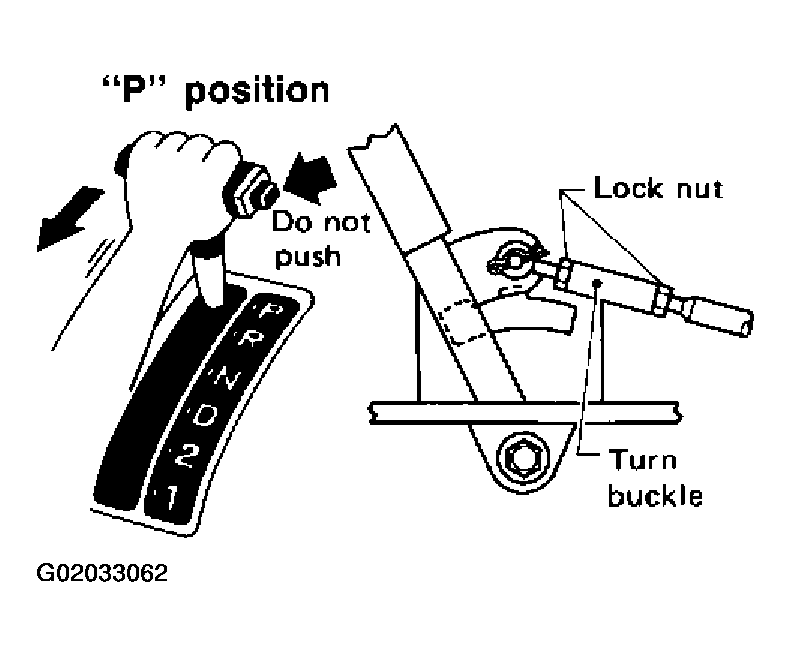

   Fig 2: Checking Control Linkage

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Refer to MANUAL CONTROL LINKAGE ADJUSTMENT .
3. CHECK A/T FLUID LEVEL

   Check A/T fluid level again.

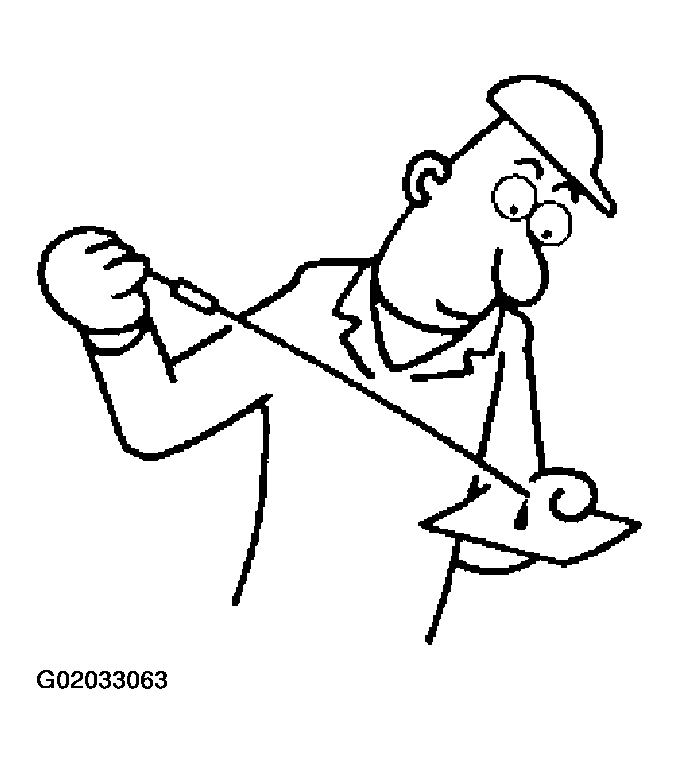

   Fig 3: Checking A/T Fluid Level

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 4.
   2. NG: Refill ATF.
4. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

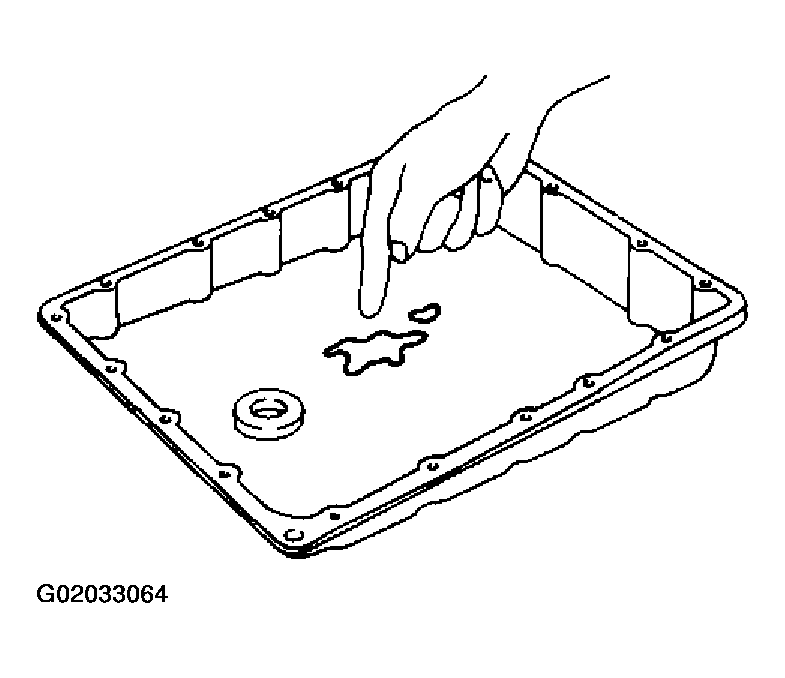

      Fig 4: Checking A/T Fluid Condition

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 5.
   2. NG:
      1. Disassemble A/T.
      2. Check the following items:
         • Forward clutch assembly
         • Overrun clutch assembly
         • Reverse clutch assembly
5. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG:
      1. Perform TCM input/output signal inspection.
      2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
