Engine Cannot Be Started In "P" and "N" Position

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Engine cannot be started with selector lever in "P" or "N" position.

Engine cannot be started with selector lever in "P" Engine can be started with selector lever in "D", "2", "1" or "R" position.

CHECK PNP SWITCH CIRCUIT
With CONSULT-II

Does "TCM INPUT SIGNALS" in Data Monitor show damage to PNP switch circuit?

Without CONSULT-II

Does self-diagnosis show damage to PNP switch circuit?

Fig 1: Checking PNP Switch Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No
1. Yes: Check PNP switch circuit. Refer to "DTC P0705 ".
2. No: GO TO 2.
CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch 2-pin connector. Refer to "COMPONENT INSPECTION ".

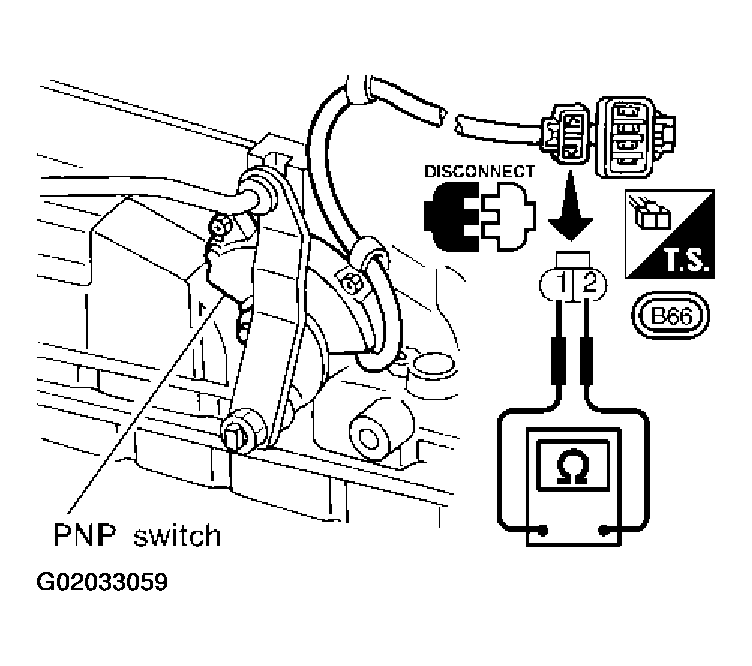

Fig 2: Checking Resistance PNP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace PNP switch.
CHECK STARTING SYSTEM
Check starting system. Refer to STARTERS .

OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
