Vehicle Does Not Creep Forward In "D", "2" Or "1" Position

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Vehicle does not creep forward when selecting "D", "2" or "1 position.

CHECK A/T FLUID LEVEL
Check A/T fluid level again.

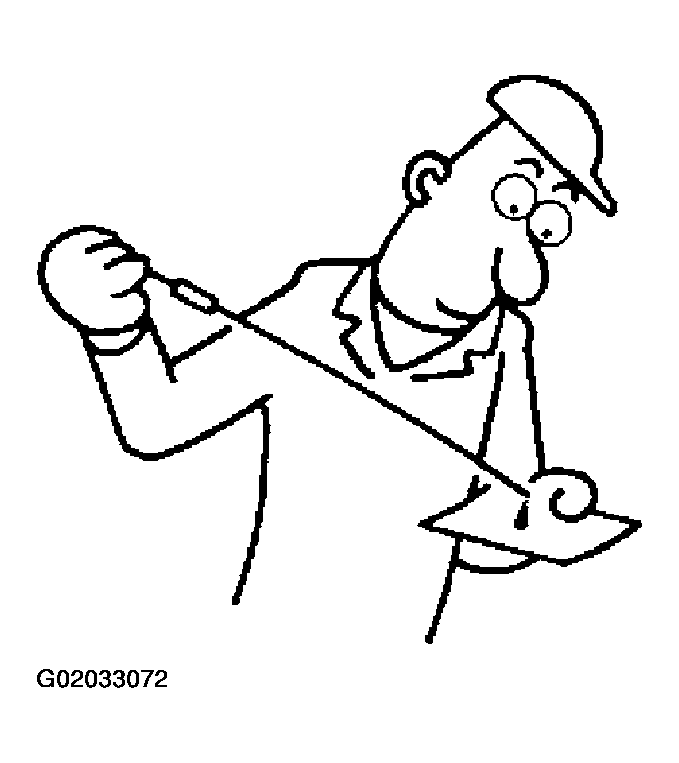

Fig 1: Checking A/T Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 2.
2. NG: Refill ATF.
CHECK STALL TEST
Check stall revolution with selector lever in "D" position.

Refer to "STALL TEST ".

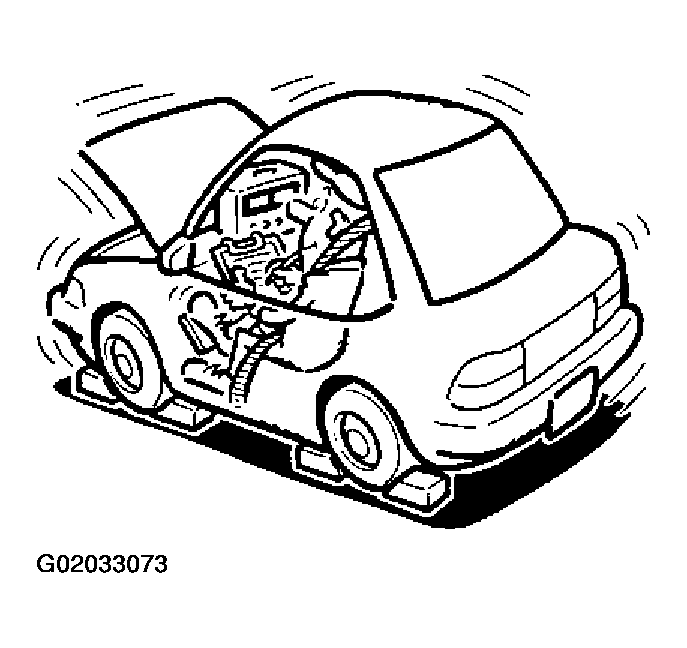

Fig 2: Checking Stall Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 3.
2. NG: GO TO 6.
Check line pressure at idle with selector lever in "R" position.

Refer to LINE PRESSURE TEST .

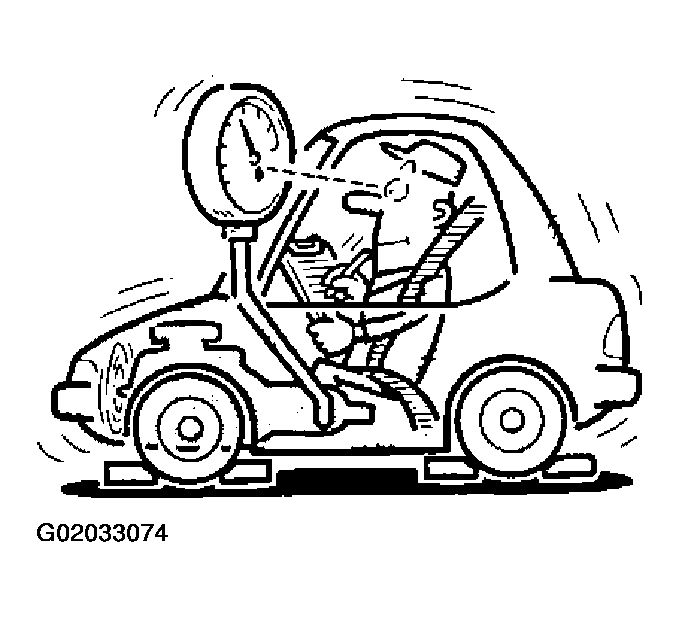

Fig 3: Checking Line Pressure
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 4.
2. NG:
  1. Remove control valve assembly.
    Refer to ON VEHICLE SERVICE .
  2. Check the following items:
    - Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
    - Line pressure solenoid valve
  3. Disassemble A/T.
  4. Check the following items:
    - Oil pump assembly
CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.

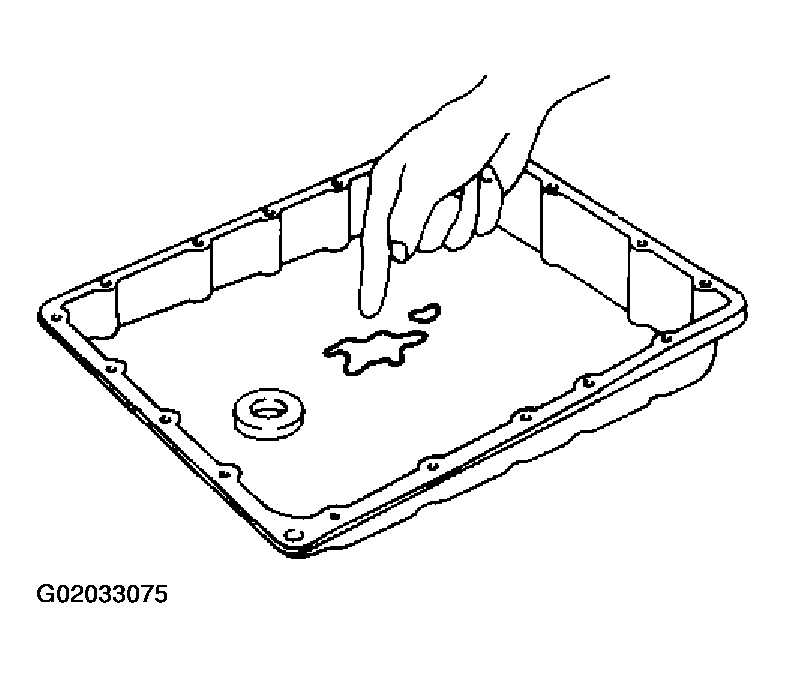

  Fig 4: Checking A/T Fluid Condition
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 6.
CHECK SYMPTOM
Check again.

OK or NG
1. OK: INSPECTION END
2. NG:
  1. Perform TCM input/output signal inspection.
  2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to "ON VEHICLE SERVICE ".
2. Check the following items:
  - Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
  - Line pressure solenoid valve
3. Disassemble A/T.
4. Check the following items:
  - Oil pump assembly
  - Forward clutch assembly
  - Forward one-way clutch
  - Low one-way clutch
  - Low & reverse brake assembly
  - Torque converter
1. Repair or replace damaged parts.
