Cruise Test - Part 1

1. Drive vehicle for approx. 10 minutes to warm engine oil and ATF up to operating temperature.
   1. ATF operating temperature: 50 - 80°C (122 - 176°F)
2. Park vehicle on flat surface.
3. Set overdrive control switch to "ON" position.
4. Move A/T selector lever to "P" position.
5. Start engine.

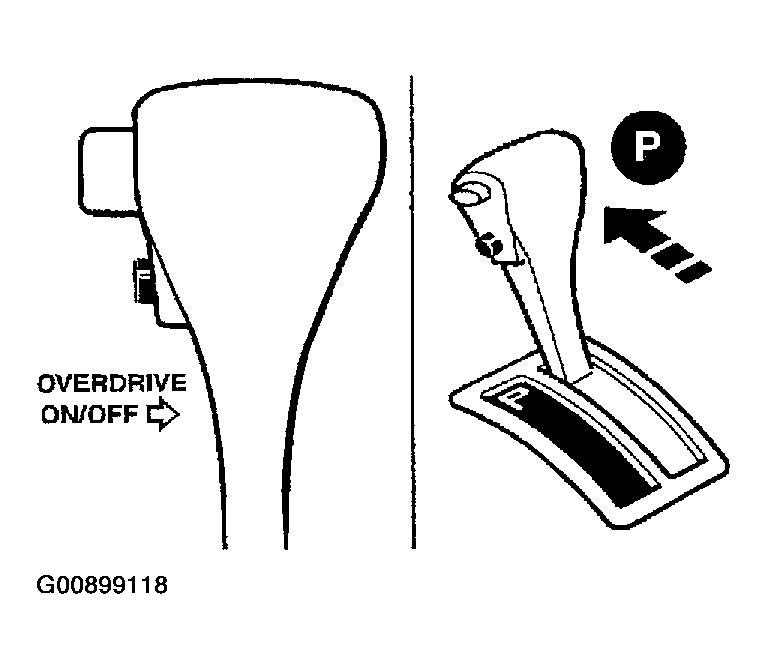

   Fig 1: Moving A/T Selector Lever To "P" Position

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Move A/T selector lever to "D" position.

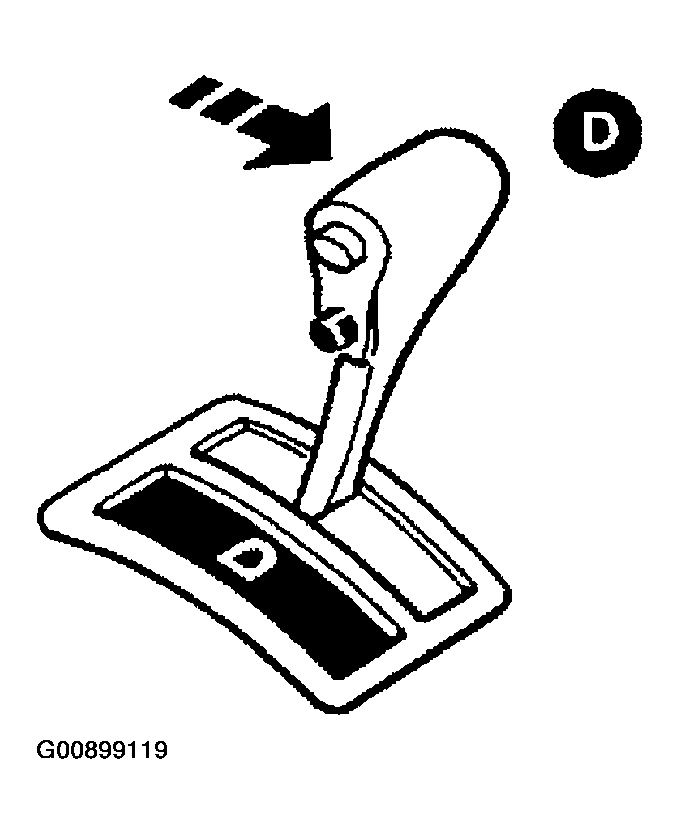

   Fig 2: Moving A/T Selector Lever To "D" Position

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. Accelerate vehicle by constantly depressing accelerator pedal halfway.
8. Does vehicle start from D1?

   Read gear position.

Yes or No

1. Yes: GO TO 2.
2. No: Go to "8. VEHICLE CANNOT BE STARTED FROM D1 ". Continue ROAD TEST.

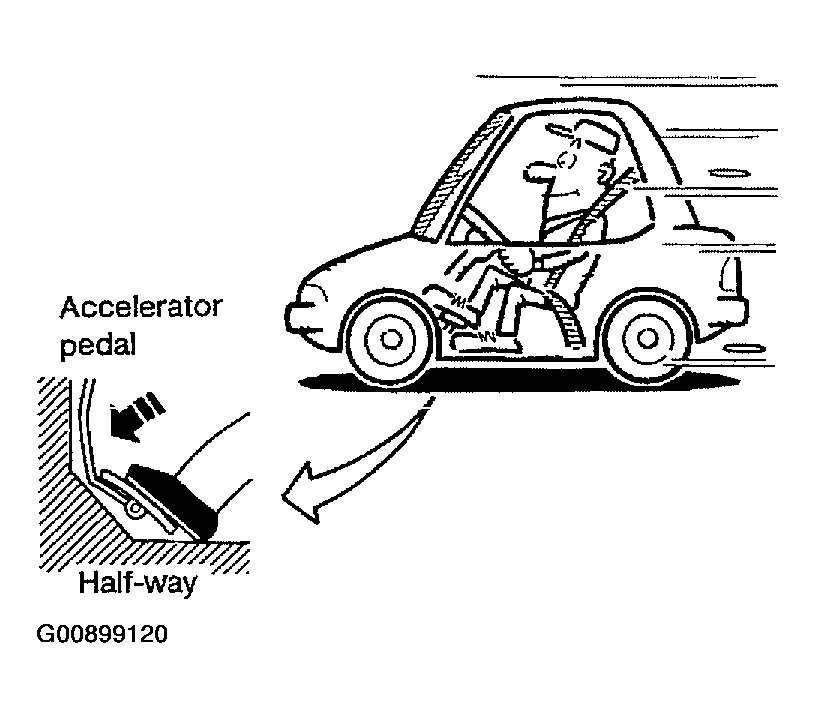

Fig 3: Accelerating Vehicle By Constantly Depressing Accelerator Pedal Halfway

Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T shift from D1 to D2 at the specified speed?

Fig 4: Checking Shift Up (D1 To D2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Read gear position, throttle opening and vehicle speed.

1. Specified speed when shifting from D1 to D2:  Refer to "SHIFT SCHEDULE ".

Yes or No

1. Yes: GO TO 3.
2. No: Go to "9. A/T DOES NOT SHIFT: D1 --> D2 OR DOES NOT KICKDOWN: D4 --> D2 ". Continue ROAD TEST.

Does A/T shift from D2 to D3 at the specified speed?

Read gear position, throttle position and vehicle speed.

1. Specified speed when shifting from D2 to D3:  Refer to "SHIFT SCHEDULE ".

Yes or No

1. Yes: GO TO 4.
2. No: Go to "10. A/T DOES NOT SHIFT: D2 --> D3 ". Continue ROAD TEST.

Fig 5: Checking Shift Up (D2 TO D3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T shift from D3 to D4 at the specified speed?

Read gear position, throttle position and vehicle speed.

1. Specified speed when shifting from D3 to D4:  Refer to "SHIFT SCHEDULE ".

Yes or No

1. Yes: GO TO 5.
2. No: Go to . "11. A/T DOES NOT SHIFT: D3 --> D4 ". Continue ROAD TEST.

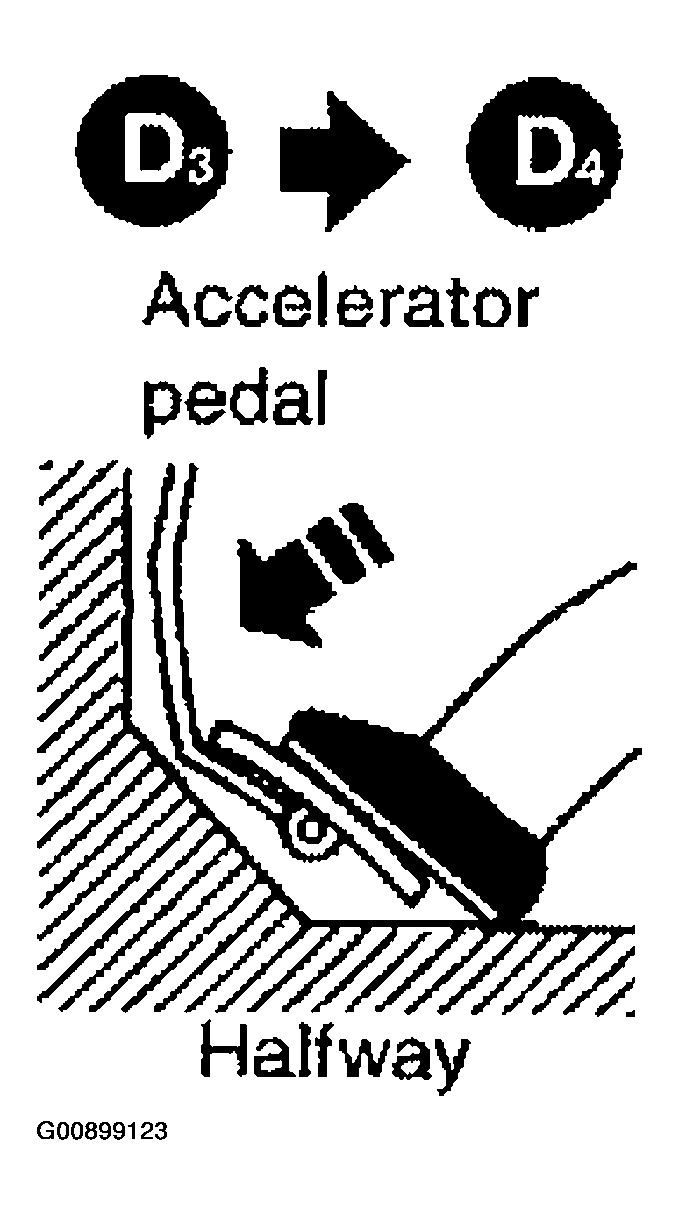

Fig 6: Checking Shift Up (D3 TO D4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T perform lock-up at the specified speed?

Read vehicle speed, throttle position when lock-up duty becomes 94%.

1. Specified speed when lock-up occurs:  Refer to "SHIFT SCHEDULE ".

Yes or No

1. Yes: GO TO 6.
2. No: Go to "12. A/T DOES NOT PERFORM LOCK-UP ". Continue ROAD TEST.

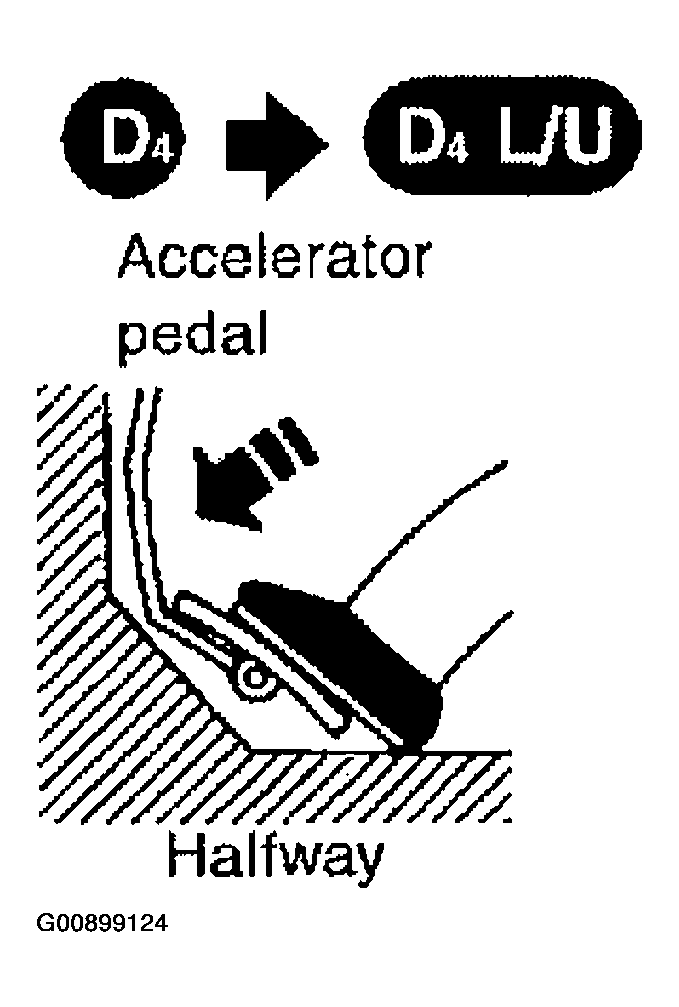

Fig 7: Checking Lock-Up (D4 To D4 L/U)

Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T hold lock-up condition for more than 30 seconds?

Yes or No

1. Yes: GO TO 7.
2. No: Go to "13. A/T DOES NOT HOLD LOCK-UP CONDITION ".

1. Release accelerator pedal.
2. Is lock-up released when accelerator pedal is released?

Yes or No

1. Yes: GO TO 8.
2. No: Go to "14. LOCK-UP IS NOT RELEASED ". Continue ROAD TEST.

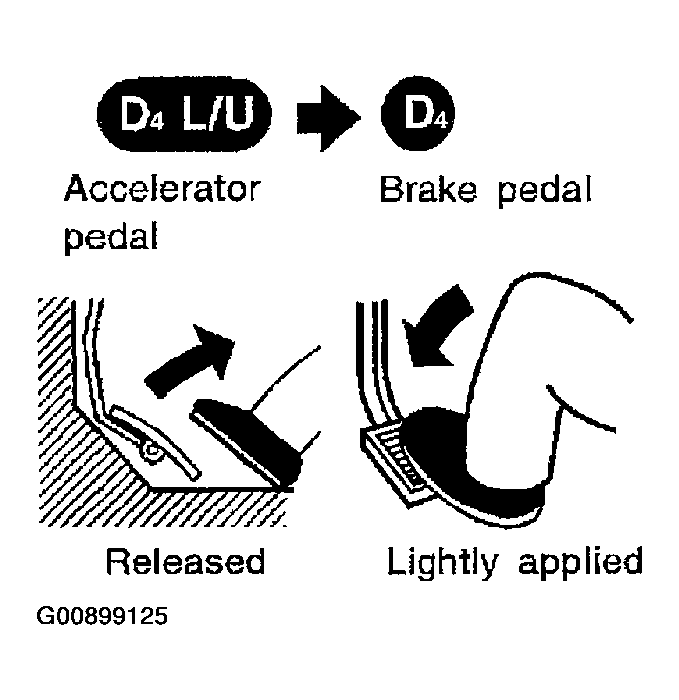

Fig 8: Checking Shift Down (D4 L/U To D4)

Courtesy of NISSAN MOTOR CO., U.S.A.

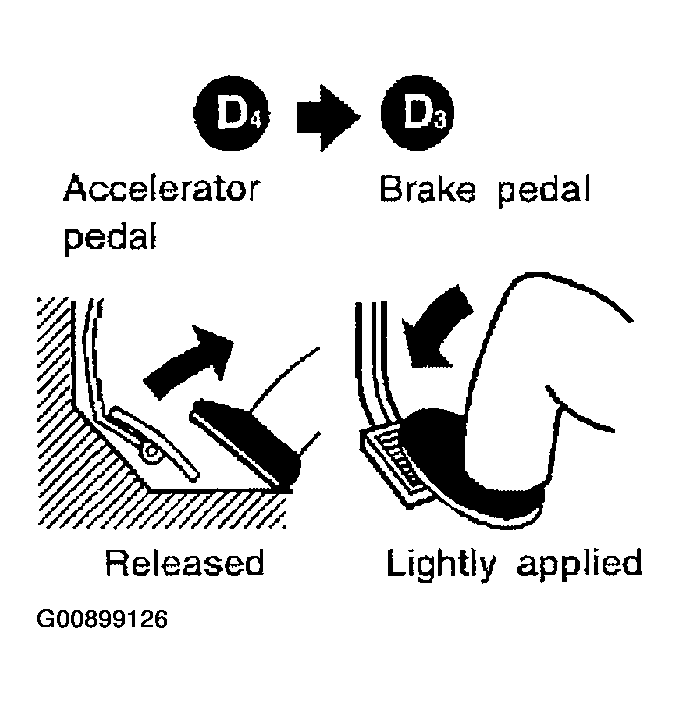

1. Decelerate vehicle by applying foot brake lightly.
2. Does engine speed return to idle smoothly when A/T is shifted from D4 to D3?

Read gear position and engine speed.

Yes or No

1. Yes:
   1. Stop vehicle.
   2. Go to "CRUISE TEST - PART 2 ".
2. No: Go to "15. ENGINE SPEED DOES NOT RETURN TO IDLE (LIGHT BRAKING D4 --> D3) ". Continue ROAD TEST.
