Cruise Test - Part 2

1. Confirm overdrive control switch is in "ON" position.
2. Confirm A/T selector lever is in "D" position.
3. Accelerate vehicle by half throttle again.
4. Does vehicle start from D1?

Read gear position.

Yes or No

1. Yes: GO TO 2.
2. No: Go to "16. VEHICLE DOES NOT START FROM D1 ". Continue ROAD TEST.

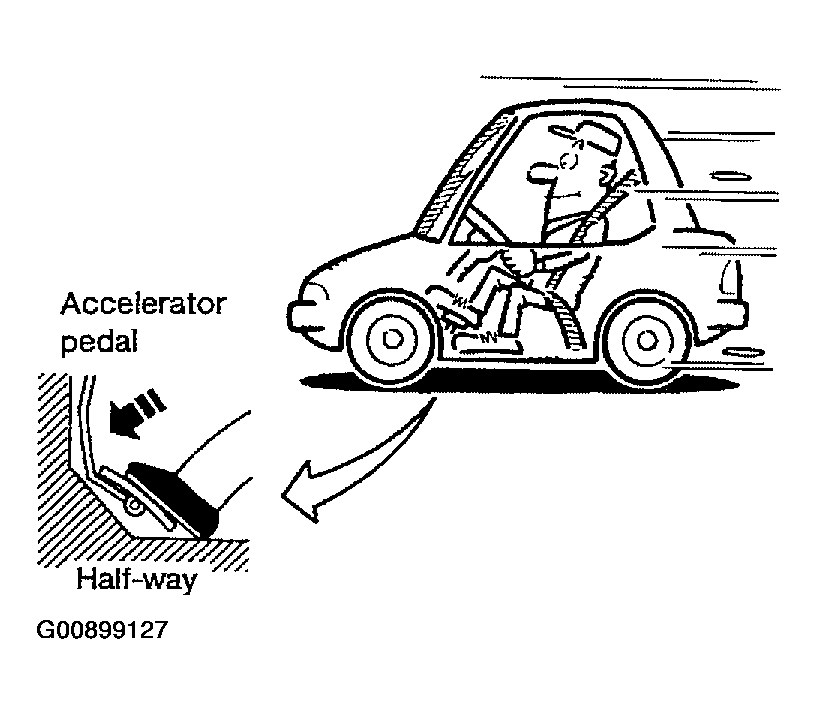

Fig 1: Depressing Accelerator Pedal

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Accelerate vehicle to 80 km/h (50 MPH) as shown in illustration.
2. Release accelerator pedal and then quickly depress it fully.
3. Does A/T shift from D4 to D2 as soon as accelerator pedal is depressed fully?

Read gear position and throttle position.

Yes or No

1. Yes: GO TO 3.
2. No: Go to "9. A/T DOES NOT SHIFT: D1 --> D2 OR DOES NOT KICKDOWN: D4 --> D2 ". Continue ROAD TEST.

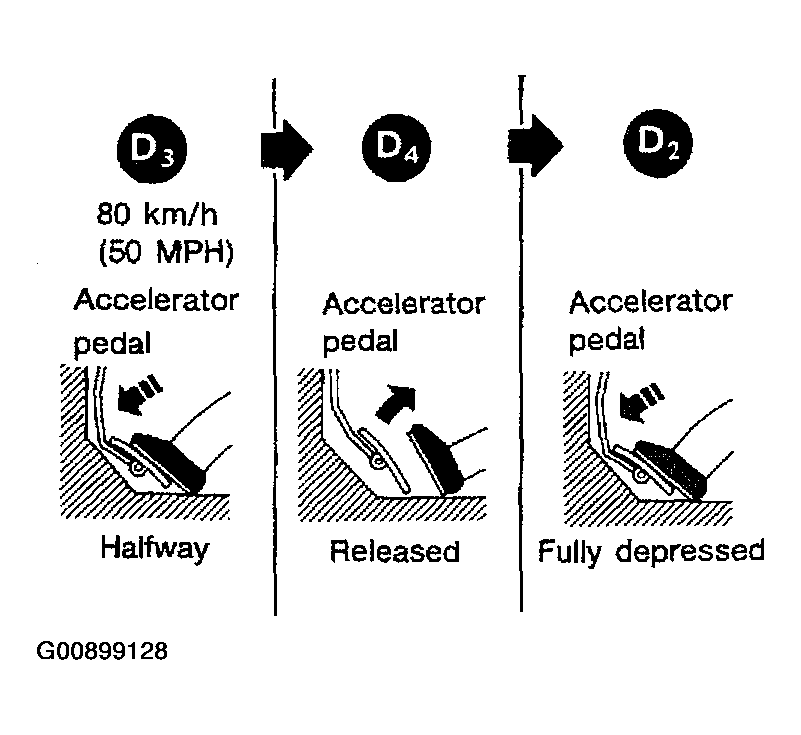

Fig 2: Checking Shift Up And Shift Down (D3 To D4 To D2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Does A/T shift from D2 to D3 at the specified speed?

Read gear position, throttle position and vehicle speed.

1. Specified speed when shifting from D  2 to D  3:  Refer to "SHIFT SCHEDULE ".

Yes or No

1. Yes: GO TO 4.
2. No: Go to "10. A/T DOES NOT SHIFT: D2 --> D3 ". Continue ROAD TEST.

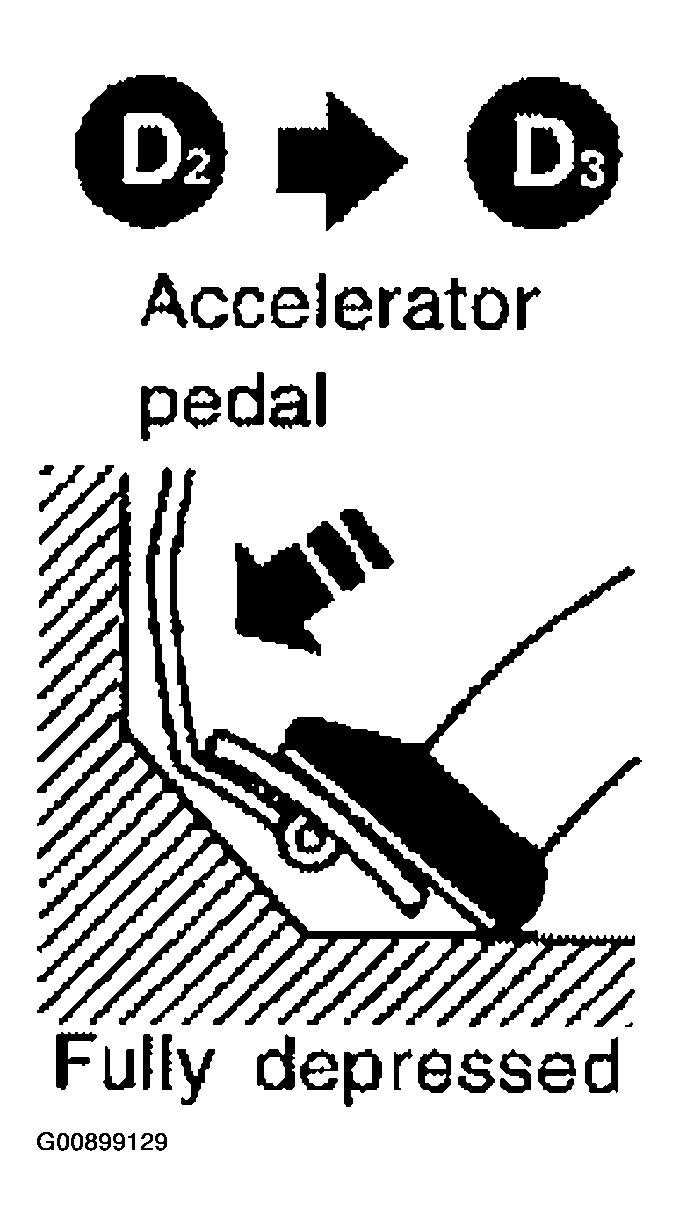

Fig 3: Checking Shift Up (D2 To D3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Release accelerator pedal after shifting from D2 to D3.

Does A/T shift from D3 to D4 and does vehicle decelerate by engine brake?

Read gear position, throttle position and vehicle speed.

Yes or No

1. Yes:
   1. Stop vehicle.
   2. Go to "CRUISE TEST - Part 3 ".
2. No: Go to "11. A/T DOES NOT SHIFT: D3 --> D4 ". Continue ROAD TEST.
