8. Vehicle Cannot Be Started From D1

SYMPTOM:

Vehicle cannot be started from D1 on Cruise Test - Part 1.

1. CHECK SYMPTOM

   Is "6. Vehicle Does Not Creep Backward In R Position" OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to "6. VEHICLE DOES NOT CREEP BACKWARD IN "R" POSITION ".
2. CHECK SELF-DIAGNOSTIC RESULTS

   Does self-diagnosis show damage to vehicle speed sensor. A/T (revolution sensor), overrun clutch solenoid valve, torque converter clutch solenoid valve, shift solenoid valve A, B or vehicle speed sensor MTR after cruise test?

   Yes or No

   1. Yes: Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR) ", "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE ", "DTC P0750 SHIFT SOLENOID VALVE A ", "DTC P0755 SHIFT SOLENOID VALVE B ", "DTC P1760 OVERRUN CLUTCH SOLENOID VALVE " or "DTC VHCL SPEED SEN.MTR VEHICLE SPEED SENSOR.MTR ".
   2. No: GO TO 3.

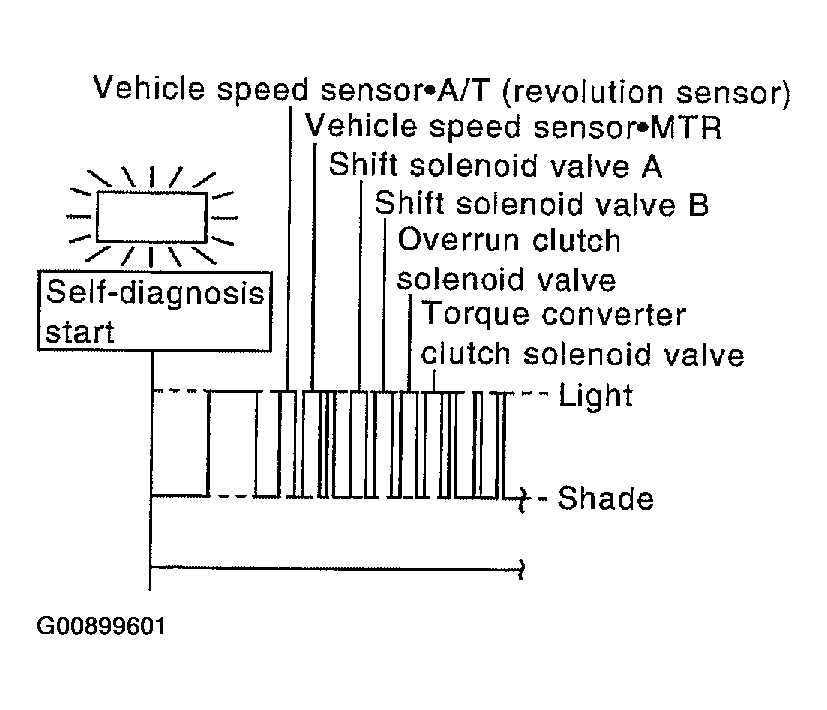

   Fig 1: Checking Self-Diagnostic Results

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to DTC P0122, P0123: TP SENSOR ".

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

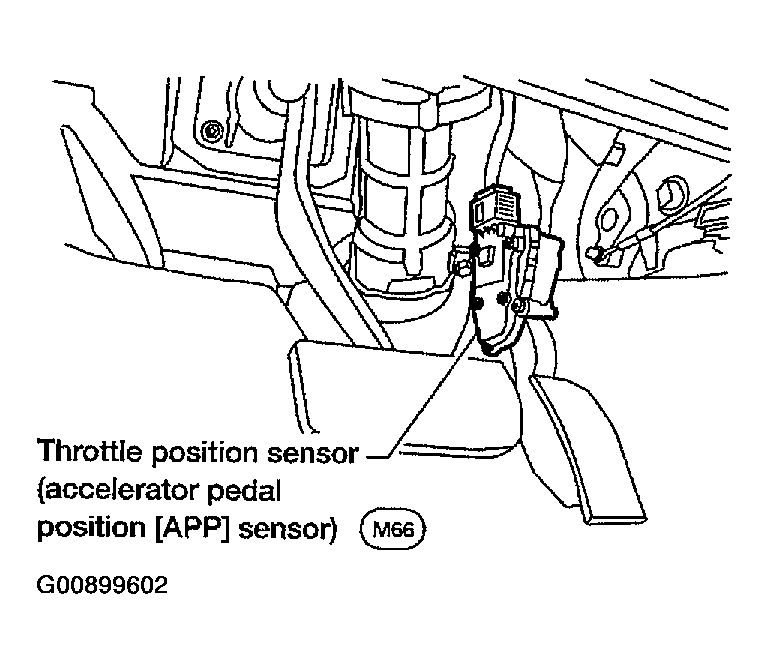

   Fig 2: Checking Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK LINE PRESSURE

   Check line pressure at stall point with selector lever in "D" position. Refer to "LINE PRESSURE TEST ".

   OK or NG

   1. OK: GO TO 5.
   2. NG: GO TO  8.
   Fig 3: Checking Line Pressure

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO 6.
   2. NG: GO TO  8.
   Fig 4: Checking A/T Fluid Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Shift valve A
      • Shift valve B
      • Shift solenoid valve A
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG:
      1. Perform TCM input/output signal inspection. See INPUT/OUTPUT SIGNAL OF TCM .
      2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
8. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Shift valve A
      • Shift valve B
      • Shift solenoid valve A
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • High clutch assembly
      • Torque converter
      • Oil pump assembly
      • Reverse clutch assembly
      • Low and reverse brake assembly

   OK or NG

   1. OK: GO TO  7.
   2. NG: Repair or replace damaged parts.
