Installing The Side Panel On The Right

• Close front door.
• Install the side panel.
• Make sure that the seal between the side panel and A-pillar is in the correct position during installation.
• Screw in all screws on the side panel until it is just about still possible to shift the side panel.
  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: 41 00... Gap dimensions for body
• Adjust gap dimensions.

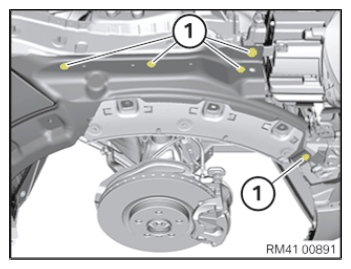

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6	8Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

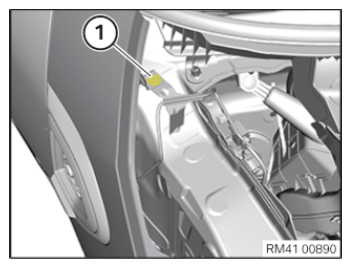

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6	8Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open the front door.

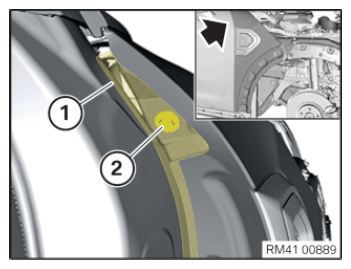

• Fold the seal (1).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6	8Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fold the seal (1) up and check the seal for correct installation position.

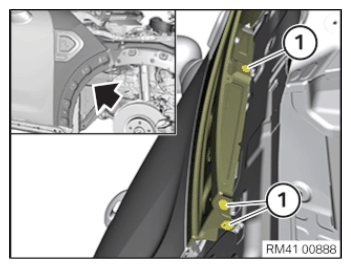

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6	8Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

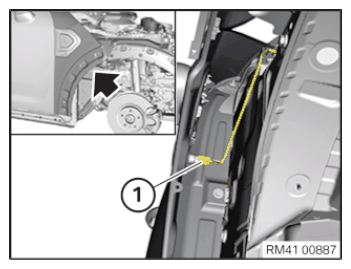

• Connect the plug connection (1) for the turn signal.

  Courtesy of BMW OF NORTH AMERICA, INC.

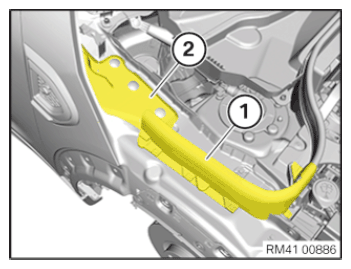

• Install seals (2) and (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WHEEL ARCH TRIM, FRONT RIGHT .
• Refer to INSTALL RIGHT DOOR SILL TRIM PANEL .
• Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to MOUNT THE FRONT WHEEL .
