Install right door sill trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

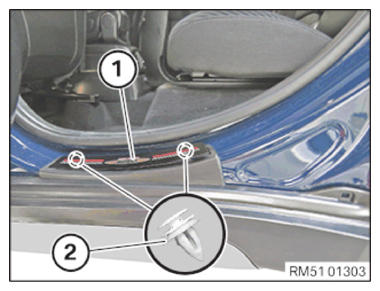

Check the clips (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

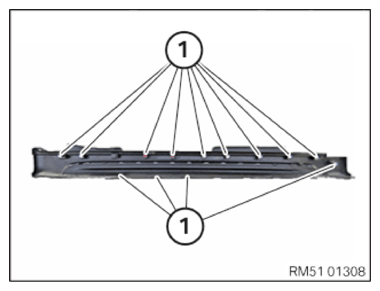

Check the clips (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Open doors.

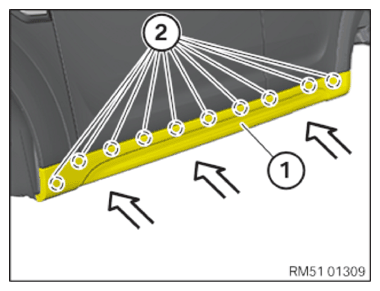

Position the door sill trim panel (1) in the direction of the arrow.
Clip in the door sill trim panel (1) on the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

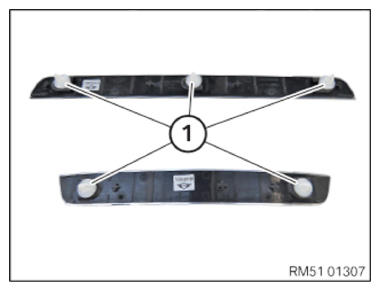

Clip in the cover (1) on the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

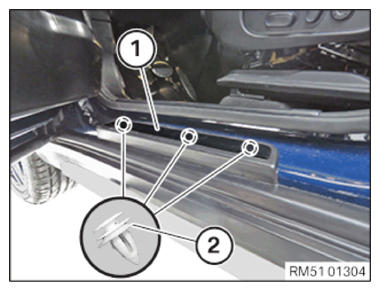

Clip in the cover (1) on the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

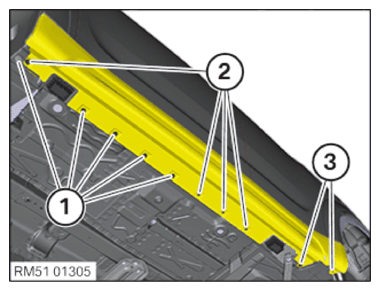

Tighten down screws (1).
Clip in clips (2).

Tighten down screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Courtesy of BMW OF NORTH AMERICA, INC.
