Installing the front right wheel arch cover
Installing the front right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.

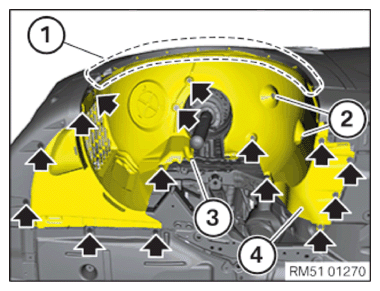

Installing the front wheel arch cover
Guide the wheel arch cover
(4)
in.
Tighten screws (arrows).
Tighten nuts
(2)
.
TIGHTENING TORQUE SPECIFICATIONS
Wheel arch cover
screw
3Nm
Plastic nut
2.6Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Attach the clip
(3)
and the expanding rivets in the area
(1)
.
