Installing wheel arch trim, front right

NOTE: Description is for left component only. Procedure on the right side is identical.

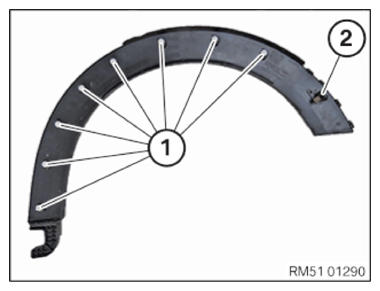

Check the clips (1) for damage and replace if necessary.
When replacing wheel arch trim: If applicable, remount the ultrasonic sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

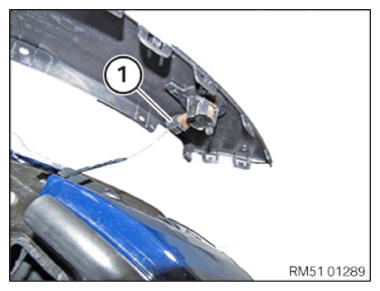

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

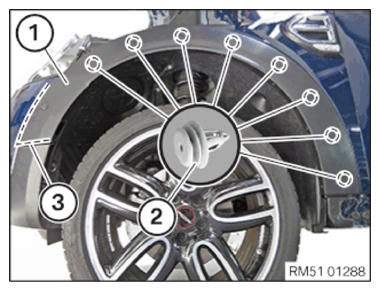

Clip in the wheel arch trim (1) at the clips (2) and the detents in area (3).

Courtesy of BMW OF NORTH AMERICA, INC.

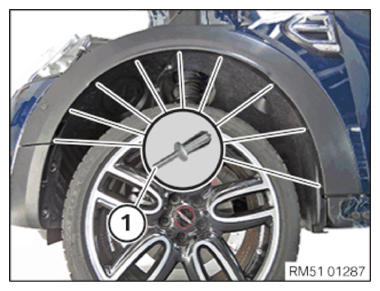

Fit rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
