Replace bumper cover, front

NOTE: RISK OF DAMAGE
Mechanical effects .
Paint damage .

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

NOTE: TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: BODY GAP DIMENSIONS (COOPER 4-DOOR HATCHBACK, 2020-2023)

Preliminary work

Refer to REMOVING FRONT BUMPER COVER .
Refer to REMOVING THE FRAME FOR THE RADIATOR ORNAMENTAL GRILLE .
Refer to REMOVING CENTER RADIATOR ORNAMENTAL GRILLE .
Refer to REMOVING ORNAMENTAL GRILLE .
Refer to REMOVING SPOILER IN THE CENTER .
Refer to REMOVING THE LEFT AND RIGHT FRONT FOG LIGHT .
Refer to INSTALLING THE MOUNTING FOR THE LEFT AND RIGHT FRONT FOG LIGHTS .

NOTE: Perform the steps on the right and left side.

Replace the front bumper cover.
Parts: Bumper cover, front

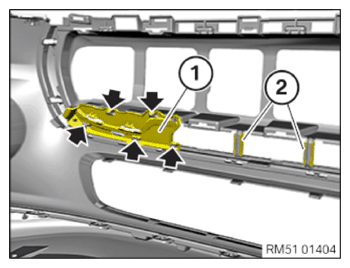

Release the cover (1) at the locks (arrows) and remount on the bumper cover.
Release the covers (1) at the locks and remount on the bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE MOUNTING FOR THE FRONT FOG LIGHT ON THE LEFT AND RIGHT .
Refer to INSTALLING THE LEFT AND RIGHT FRONT FOG LIGHT .
Refer to INSTALLING SPOILER (CENTER) .
Refer to INSTALLING ORNAMENTAL GRILLE .
Refer to INSTALLING CENTER RADIATOR GRILLE .
Refer to INSTALLING THE FRAME FOR THE RADIATOR ORNAMENTAL GRILLE .
Refer to INSTALLING BUMPER COVER, FRONT .
